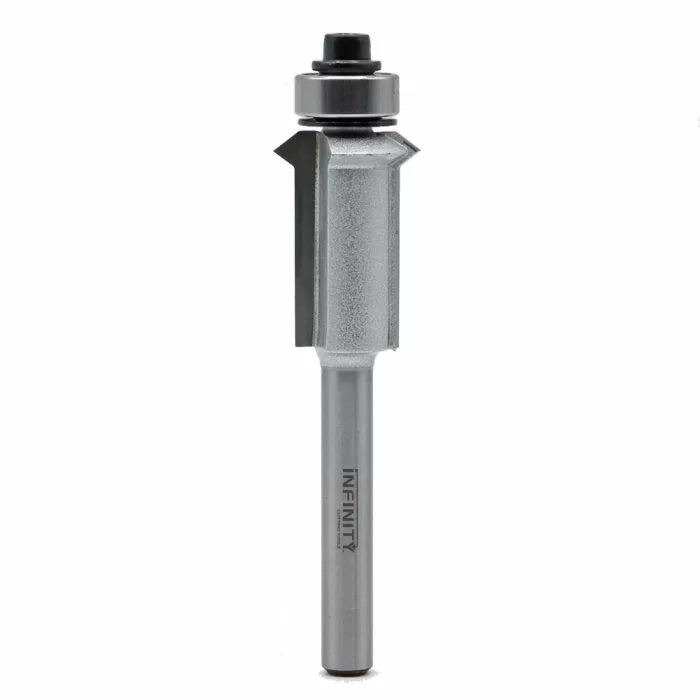

Broca para ranurar al ras y en V con vástago de 1/4" de Infinity Tools

It trims cabinet face frames flush with the cabinet sides while cutting a decorative V-groove along the joint to hide the seam. See related edge-forming router bits.

It has a 1/4" shank, so it fits routers with a 1/4" collet, which nearly all compact and full-size routers accept.

It trims face frames up to 1" thick, matching its 1" cutter height. That covers typical cabinet face frame stock.

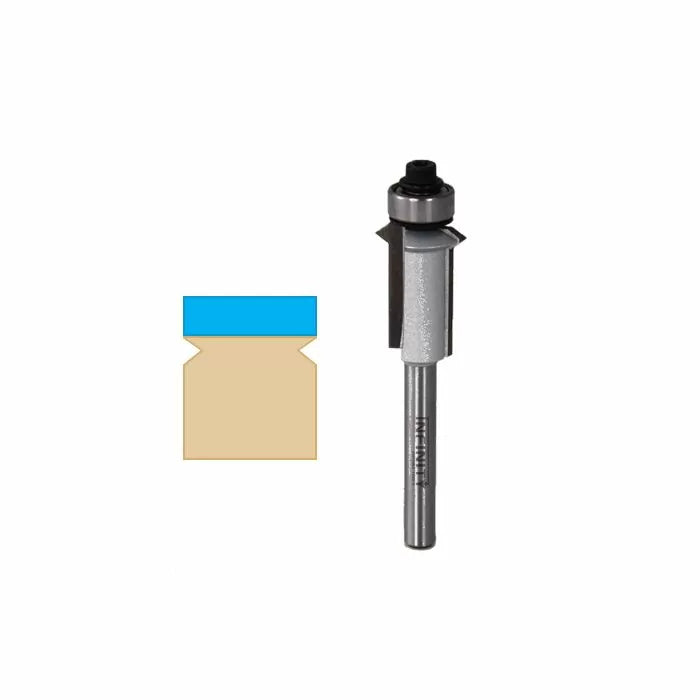

The V-shaped cutter adds a groove right at the joint between the frame and the cabinet side. This is decorative and also helps hide the seam, masking small alignment differences.

The bit has a 5/8" bearing diameter. The bearing rides along the cabinet side so the cutter trims the face frame flush.

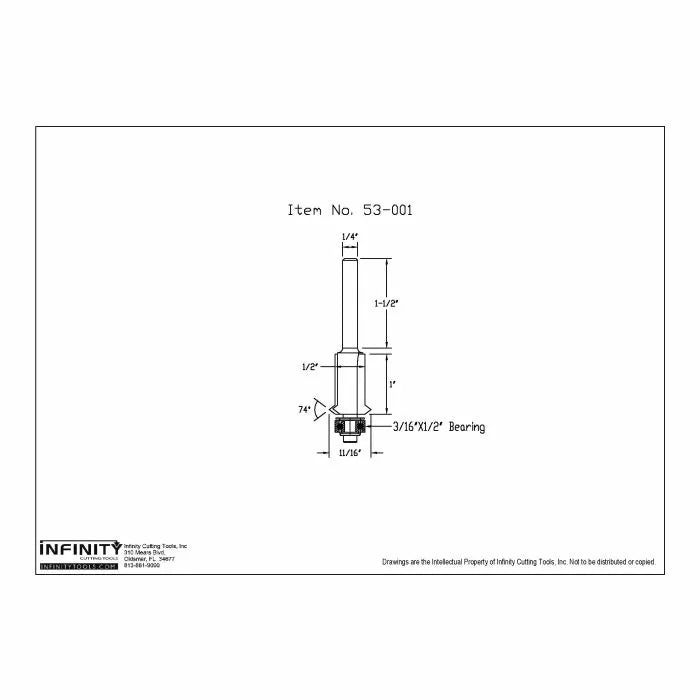

The bit has an overall length of 2-5/8", with a 1" cutter height on a 1/4" shank.

Yes. In a single pass it trims the face frame flush and cuts the decorative V-groove, saving you a separate detailing step.

It is described as the ideal cabinetmaker's bit, made for trimming and detailing face frames on cabinets. Explore more cabinetry & joinery tools.

It is a bearing-guided edge-forming bit, so it can be used handheld following the bearing or mounted in a router table. Browse more carbide router bits for your setup.

It is made by Infinity Cutting Tools. For decorative edge work, also see our molding router bits.
