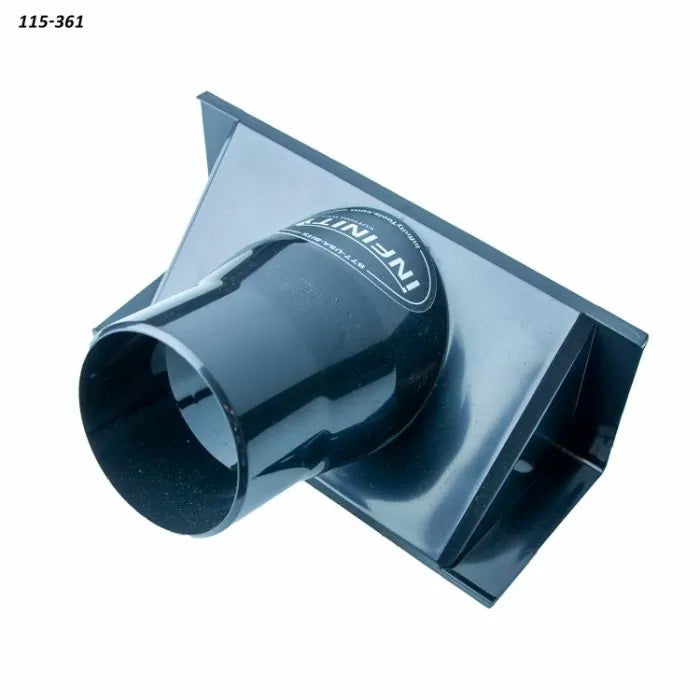

Infinity Tools Generic Router Table Fence Dust Port

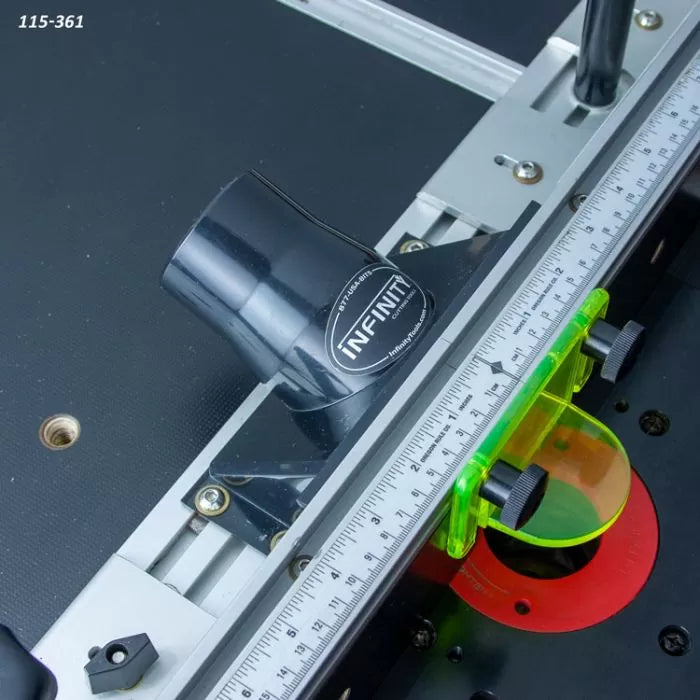

It is the same port that came with the older PRTF-100 Professional Router Table Fence. It is sold as a replacement part for that model.

No. This port does NOT fit the new PRTF-200 router table fence. It is intended for the older PRTF-100.

The opening is approximately 2.5" OD for a standard 2.5" dust collection hose and approximately 2.25" ID for a 2.25" wet/dry vac hose or quick-connect fittings. See more dust collection fittings.

Yes. It ships undrilled, so you can drill your own mounting holes and add a dust collection port to a shop-made jig or fixture for any custom application.

The large opening measures 2.5" x 5.25", which maximizes the amount of debris captured at the source.

The 90° angled mounting flange with a ~22.5° offset port lets you position the port close to the dust source without obstructing machine operation.

No. It is undrilled so you can place the mounting holes wherever your application requires.

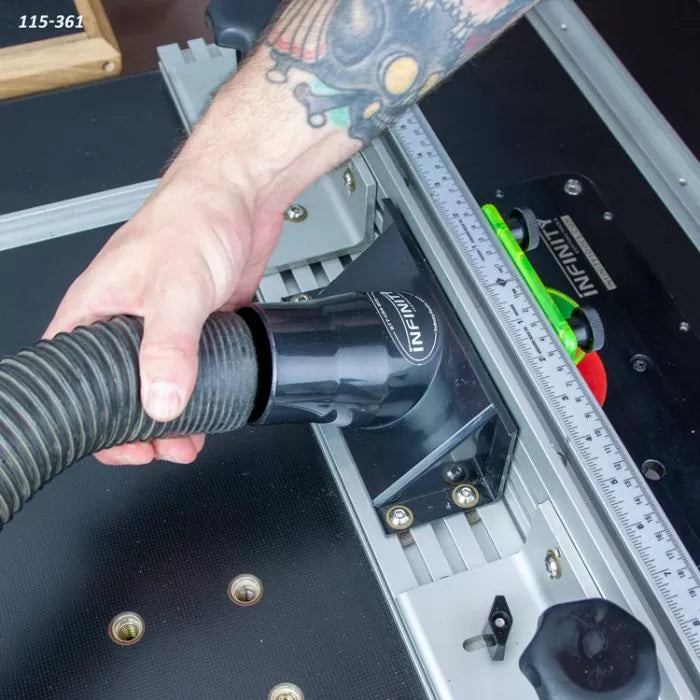

Yes. The ~2.25" ID accepts 2.5" to 2.25" quick-connect dust collection fittings in addition to standard hoses.

It is made by Infinity Cutting Tools as the original port for its PRTF-100 router table fence.

Pair the port with matching hoses & accessories and browse the full dust collection range to capture debris efficiently.
