SKU: 116-267 | MPN: KMA3225

Kreg Shelf Pin Jig with 1/4" Bit

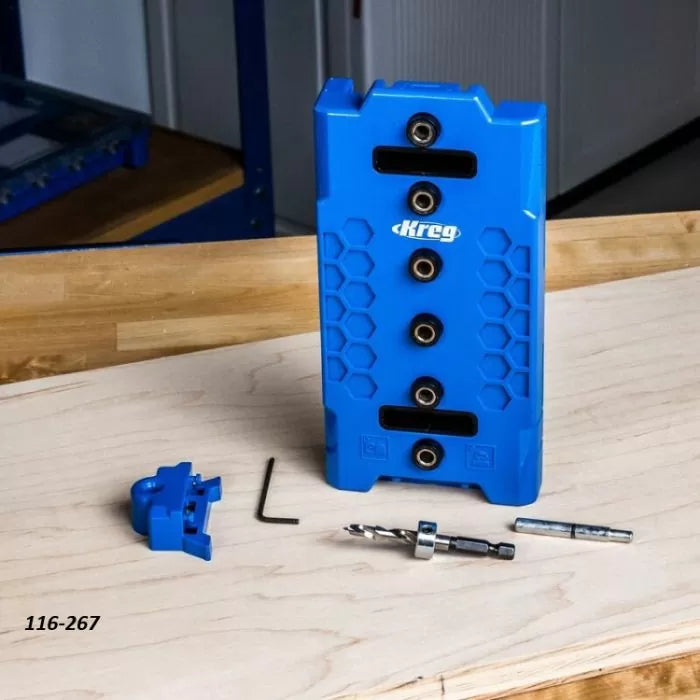

Name: Kreg Shelf Pin Jig with 1/4" Bit
Brand: Kreg Tool
SKU: 116-267
Price: 34.90 USD
Availability: InStock

13% off

$34.90 ~~Regular price$39.90~~

Description Reviews Q&A Documents

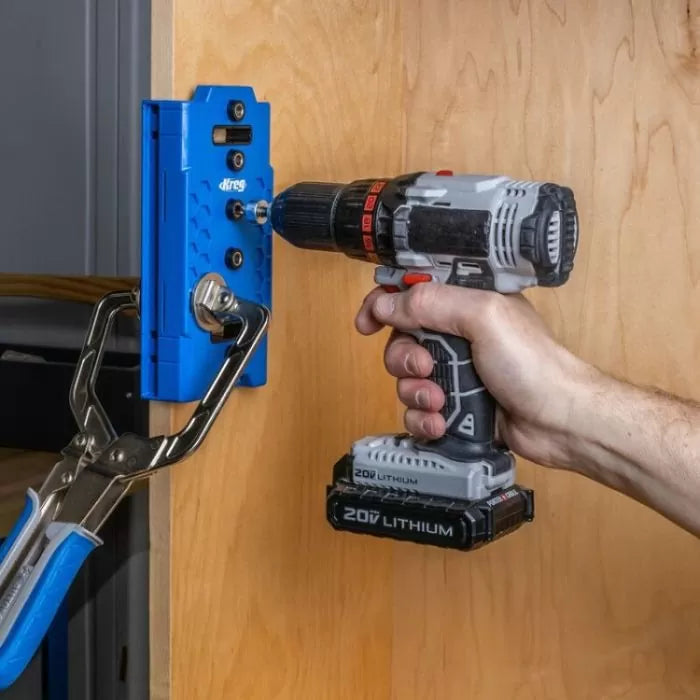

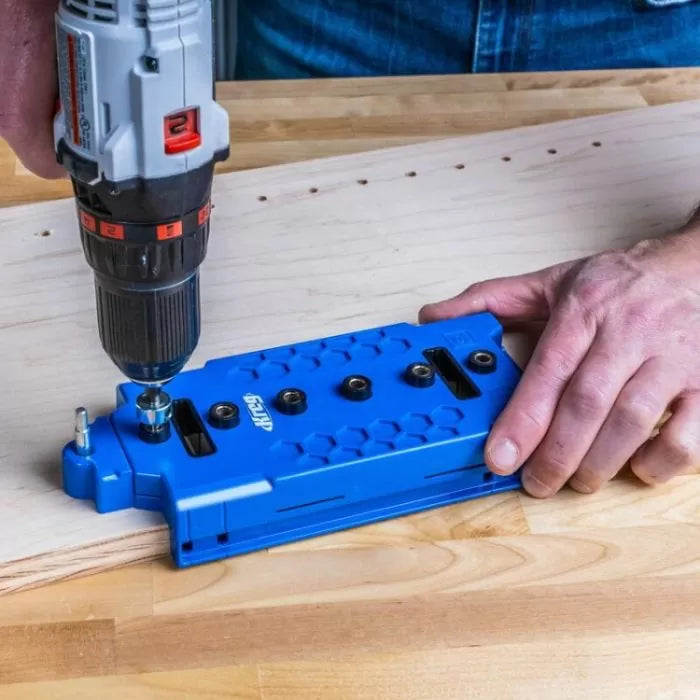

Whether you’re adding shelves to existing furniture, or building from scratch, creating the shelf pin holes is easy. Use the fence to align the jig with the edge of your workpiece for straight, accurate rows. Quickly drill six holes in one setup – or connect a second Shelf Pin Jig to drill longer rows of holes with the same consistent spacing.

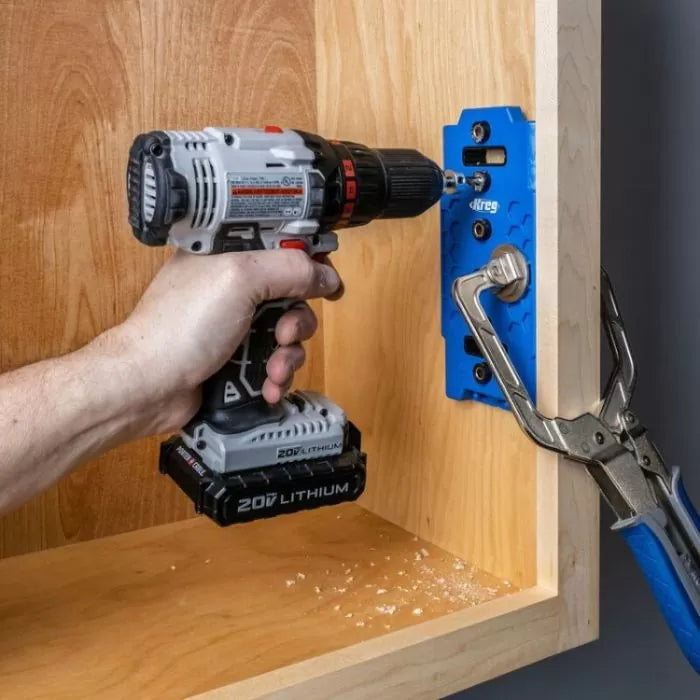

The jig also has useful features for installing concealed cabinet hinges and drawer slides in frameless cabinets. Molded-in alignment marks and an indicator window help align mounting screws for hinge plates – set at standard backspacing for a 32mm cabinet system – which also helps with locating the front hole for drawer slide installation.

Features:

Create perfectly spaced holes at 1-1/4" (32 mm) increments
Drill clean, precise holes with hardened-steel drill guides
32 mm system compatible for locating hinges and drawer slides

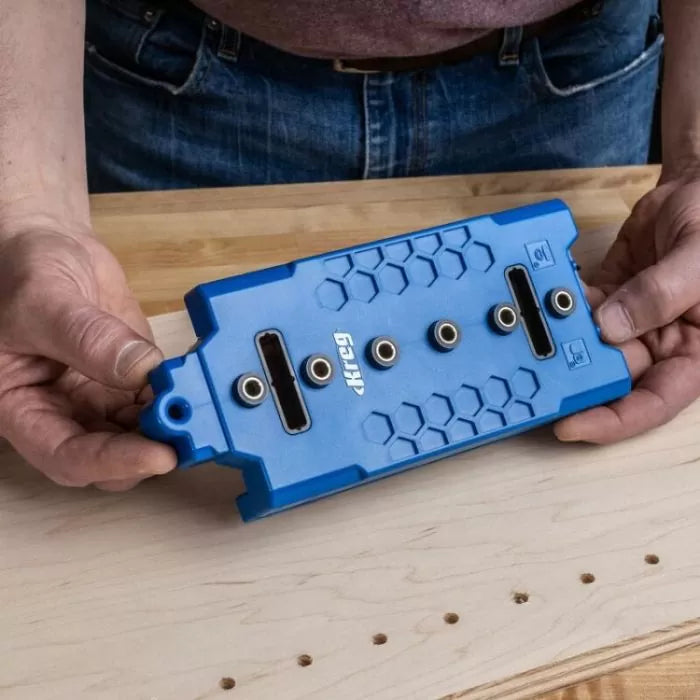

Work confidently with alignment windows for visibility

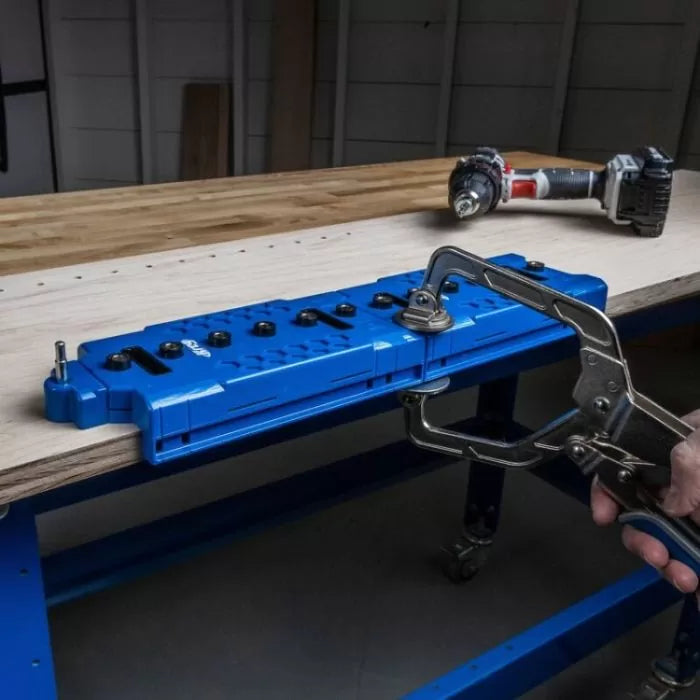

Snap two jigs together to quickly drill more holes in one run

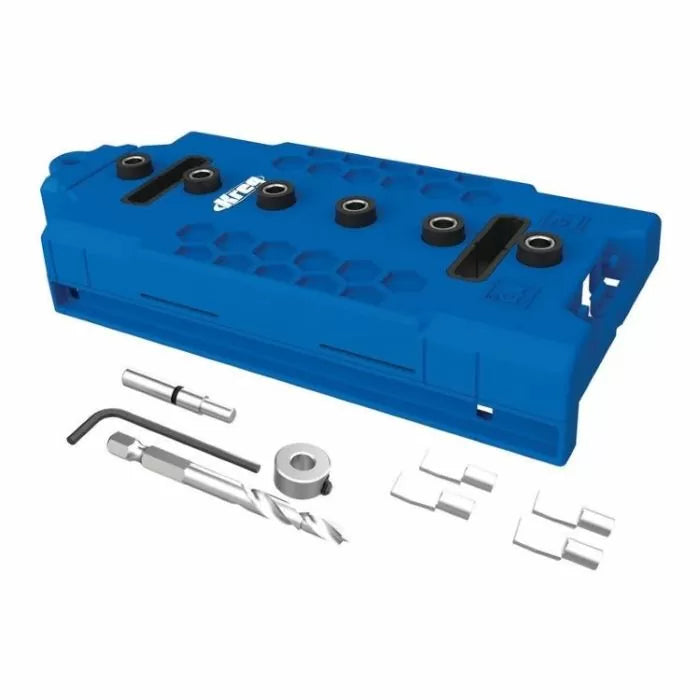

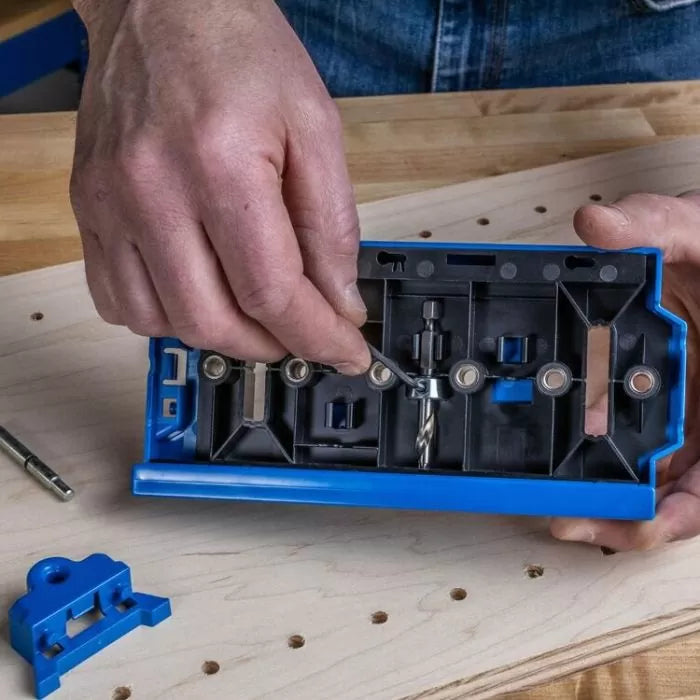

Keep accessories close by with on-board storage

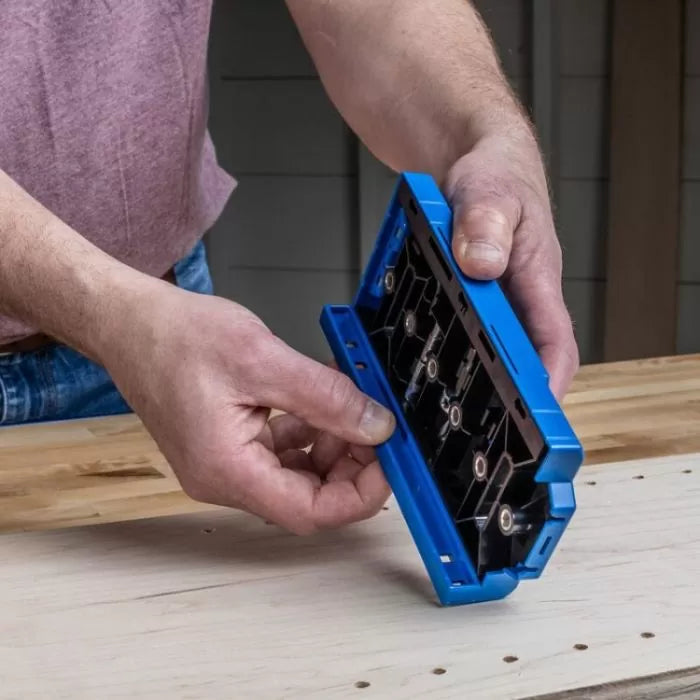

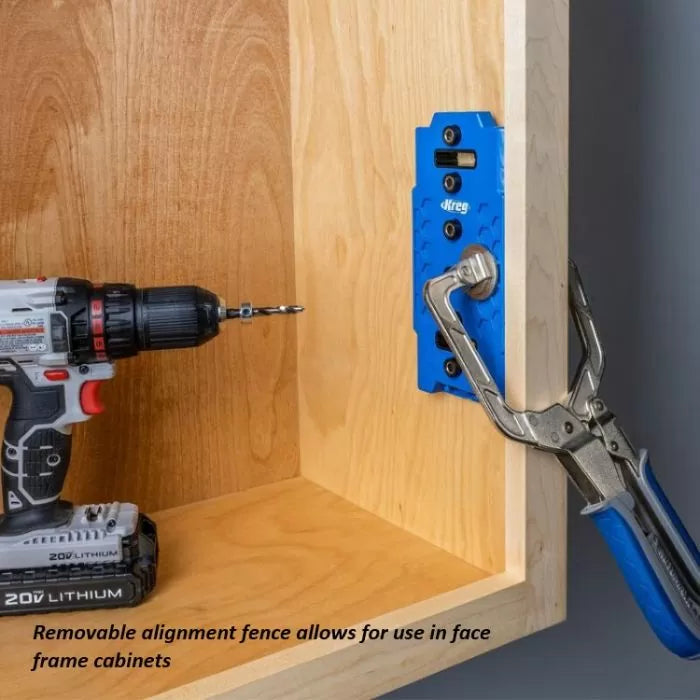

Removeable alignment fence allows can be attached to either side of the jig, or removed for use on face frame cabinets

Kreg_Shelf_Pin_Jig_Manual

Frequently Asked Questions

What hole spacing does the Kreg Shelf Pin Jig produce?

It drills perfectly spaced holes at 1-1/4" (32mm) increments, the standard spacing for adjustable shelving. Explore more joinery guides.

Does the jig come with a drill bit?

Yes. The jig includes a 1/4" bit that works through the hardened-steel drill guides for clean, precise holes.

How many holes can I drill in one setup?

You can drill six holes in a single setup. To drill longer rows with the same consistent spacing, snap a second Shelf Pin Jig onto the first.

Can I drill longer rows of shelf pin holes?

Yes. Two jigs connect together so you can quickly drill more holes in one run while keeping the spacing consistent, which is ideal for tall cabinet sides and bookcases.

Is this jig compatible with the 32mm cabinet system?

Yes. It is 32mm system compatible and includes molded-in alignment marks and an indicator window to help locate hinges and drawer slides. See more cabinetry & joinery tools.

Can the jig help install cabinet hinges and drawer slides?

Yes. The alignment marks and indicator window help position mounting screws for hinge plates at standard 32mm backspacing, which also assists in locating the front hole for drawer slide installation in frameless cabinets.

Is the fence removable?

Yes. The removable alignment fence can attach to either side of the jig, or be removed entirely for use on face-frame cabinets.

What keeps the drilled holes accurate?

The fence registers against the edge of your workpiece for straight, accurate rows, and the hardened-steel drill guides keep each hole clean and precise.

Does the jig have a place to store accessories?

Yes. It features on-board storage so you can keep accessories close at hand while you work.

Who makes the Shelf Pin Jig?

It is made by Kreg Tool. Browse the full range of Kreg pocket hole jigs and joinery systems.
