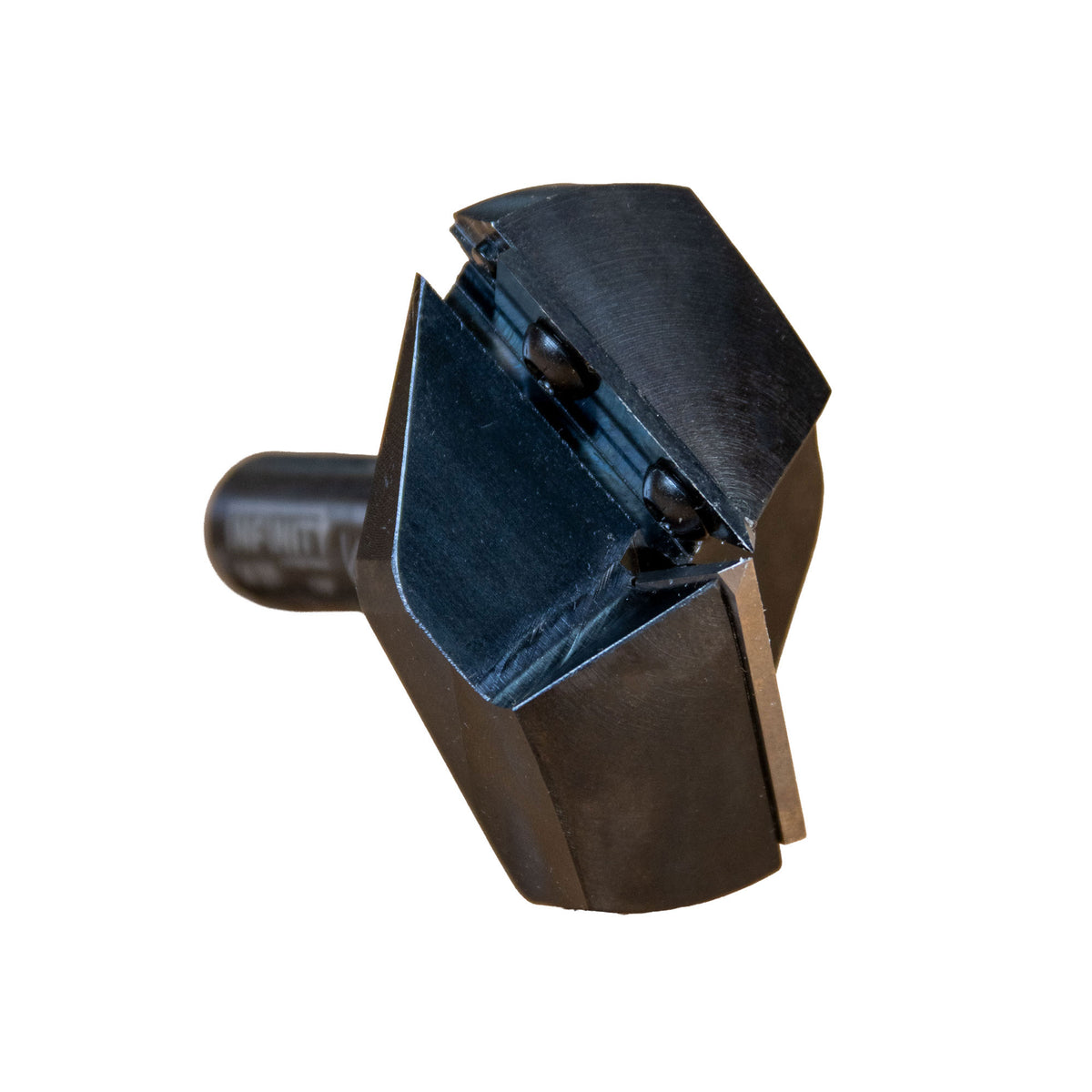

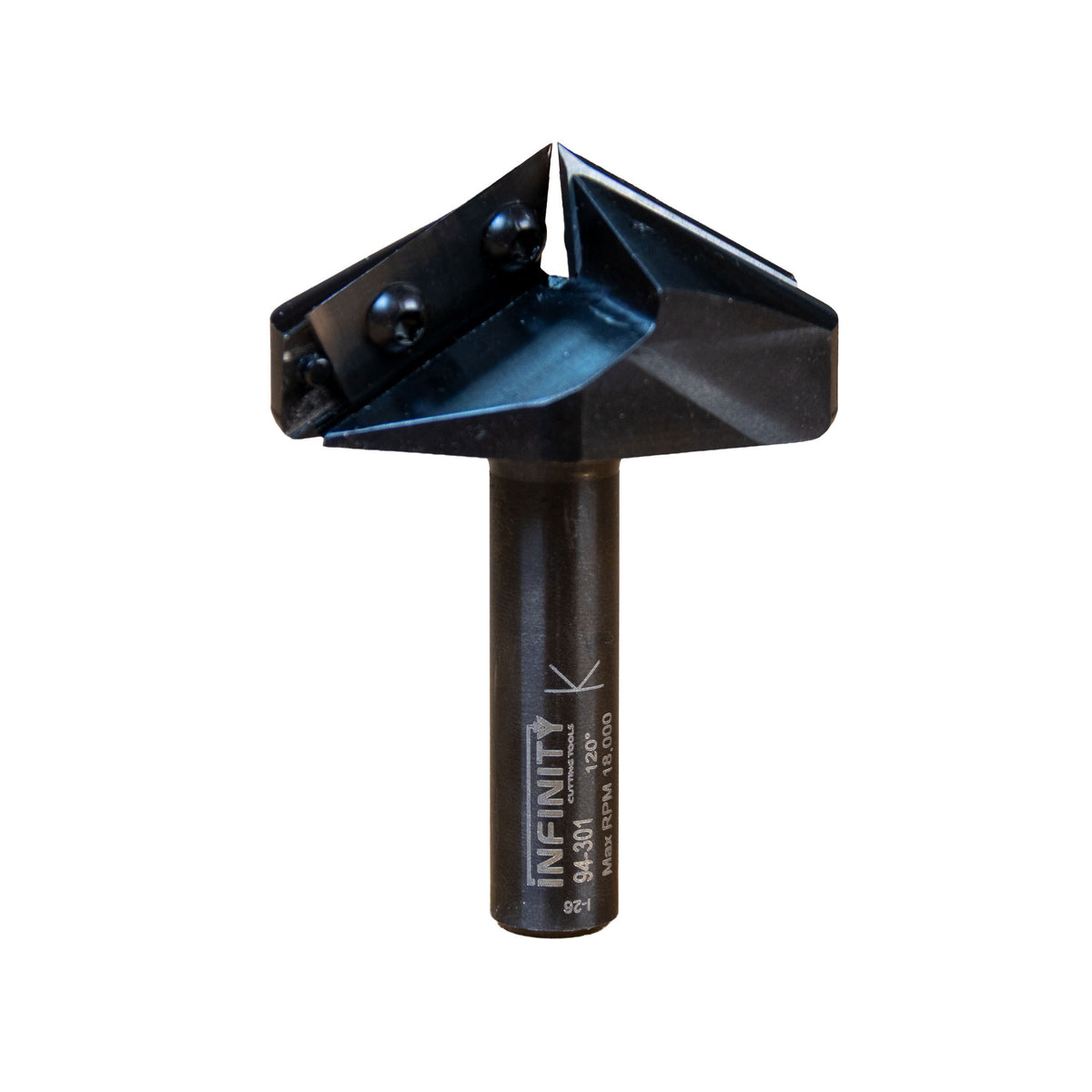

Infinity Tools Insert-Pro 120° V-Bit, 2-1/32" D and 9/16" CH, 1/2" Shank
Insert-Pro V Groove 120 Deg x 9/16 CH x 1/2 SHK CNC Router Bit
Create crisp, clean V-grooves, lettering, sign details, and decorative cuts with the Infinity Tools 94-301 Insert V-Groove CNC Router Bit. Designed for CNC routing, this precision 120° cutter combines substantial cutting capacity with replaceable carbide knives for outstanding performance and long-term value.
The 94-301 features a 2-1/32" diameter and 9/16" cutting height, making it an excellent choice for V-groove routing, sign making, engraving, lettering, and detailed woodworking. Its precision-ground cutting geometry is designed to produce clean, consistent grooves while helping minimize material buildup at the point of the V.
Two replaceable carbide knives provide long cutting life and excellent surface quality. When an edge eventually becomes dull, simply replace the knife rather than replacing the entire router bit. Insert tooling also allows you to maintain consistent performance while reducing the long-term cost of your CNC tooling.
The 1/2" shank provides a solid connection in compatible CNC tool holders, while the secure insert design keeps the knives firmly positioned for accurate cutting. The 94-301 is well suited for wood, MDF/HDF, plastics, composites, laminates, melamine, PVC, solid surface, veneered plywood, sign board, and other CNC-routing materials.
For professional shops and serious CNC users, the 94-301 delivers the precision, versatility, and replaceable-knife convenience you expect from modern insert tooling.
Specifications:
- Bit Diameter: 2-1/32"
- Cutting Height: 9/16"
- Shank Diameter: 1/2"
- Overall Length: 3-1/16"
- Cutting Angle: 120°
- Knife Angle: 60°
- Number of Knives: 2
- Bit Type: Insert V-Groove CNC Router Bit
- Maximum RPM: 18,000
- Compatible Machines: CNC Routers
- Applications: V-Grooving, Signmaking, Lettering, Engraving & Decorative Routing
- Replacement knife 94-301.CIK.1 (2)
