SKU: 55-501

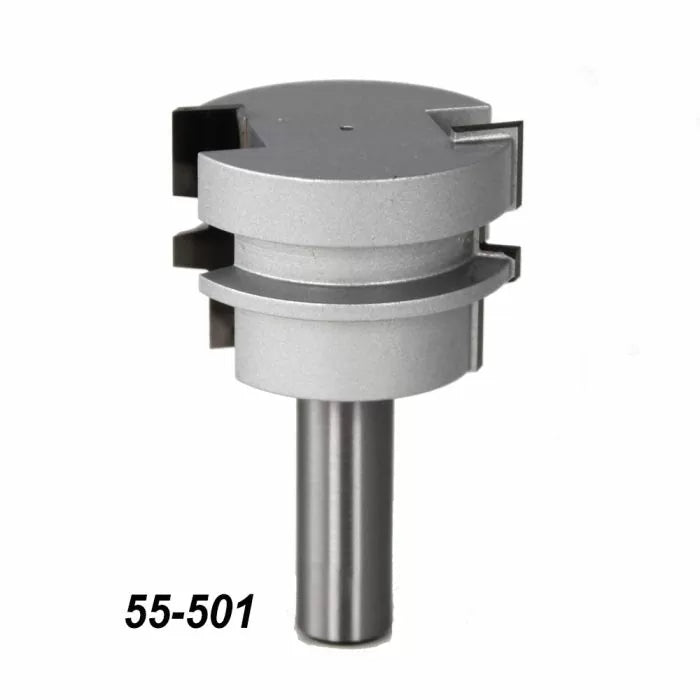

Infinity Tools 1/2" Shank Glue Joint Router Bit w/ Setup Block

$64.90

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Perfect For Door Panels Table Tops And More!

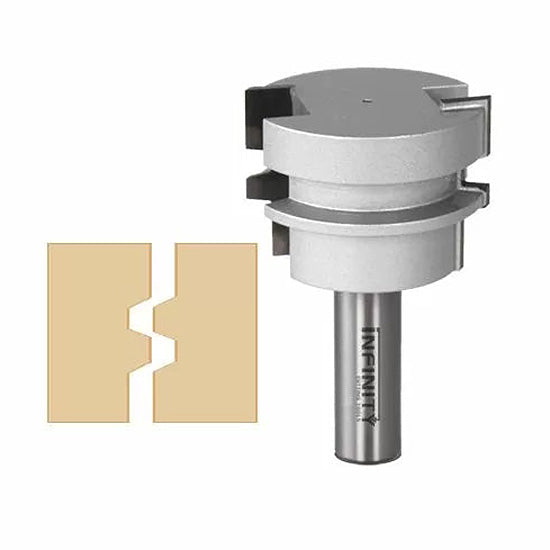

Fast, accurate glue-ups and strong joints are the trademark of this reverse glue joint router bit. Use it to fabricate large panels for doors, cabinets, or table tops. When properly centered the upper and lower shoulders of the cut will be of equal height. Just set the bit to the proper height for the material you're working with, route your first edge with the face up and the second edge with the face down, and you'll end up with a perfectly aligned Glue Joint. Works with stock from 1/2" to 1-1/4" thick.

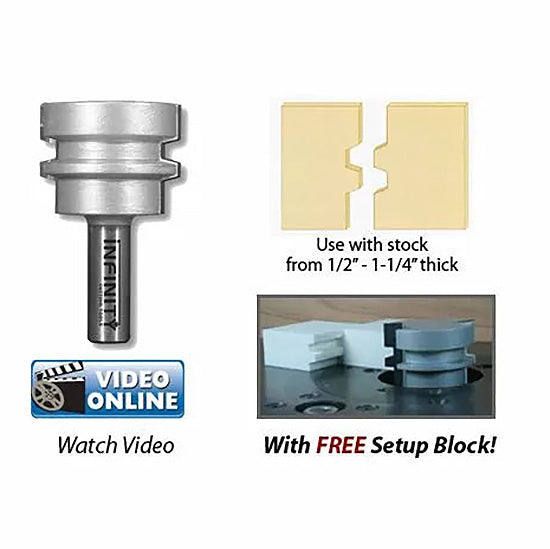

Exclusively from Infinity Tools, now with the purchase of this router bit you'll also receive the setup block for 3/4" thick stock (a $9.90 value) absolutely FREE.

Be sure to also check out both our excellent video and our written instructions on setting up and using this fantastic router bit.

The Infinity Cutting Tools Difference

Black geometric logo with stylized letters in a square shape on a white background

Frequently Asked Questions

What is a glue joint router bit used for?

It creates strong, perfectly aligned edge joints for fabricating large panels such as door panels, cabinets, and table tops. See more joinery router bits.

Does this bit come with a setup block?

Yes. It includes a FREE setup block for 3/4" stock (a $9.90 value), exclusively from Infinity Tools, to make height setup fast and repeatable.

What stock thickness does this glue joint bit work with?

It works with stock from 1/2" to 1-1/4" thick. Just set the bit to the proper height for your material.

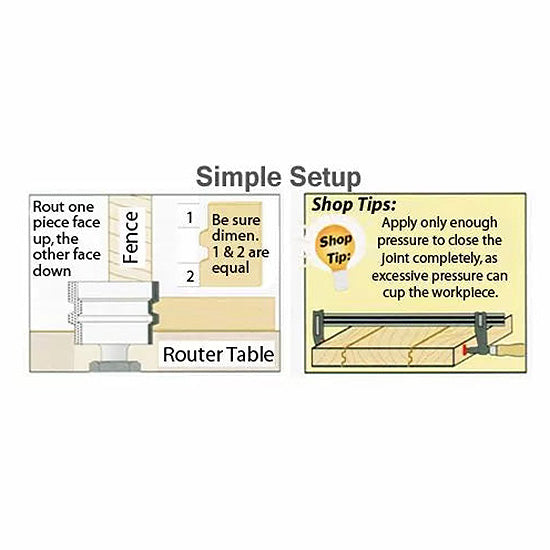

How do I rout a glue joint with this bit?

Route your first edge with the face up and the second edge with the face down. The reversed profiles interlock to form a perfectly aligned joint.

How do I know the bit is centered correctly?

When the bit is properly centered, the upper and lower shoulders of the cut will be of equal height. The included setup block helps you reach this setting quickly.

What shank size does this bit have?

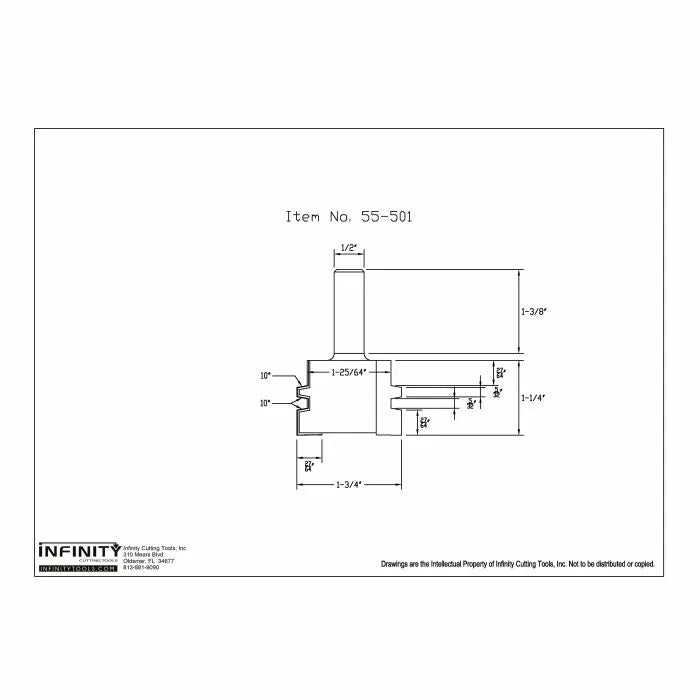

It has a 1/2" shank, a 1-3/4" cutter diameter, and a 1-1/4" cutter height, requiring a router with a 1/2" collet.

Can I make panels wider than the bit?

Yes. You can join boards edge to edge to make panels as wide as you need for doors, cabinets, and table tops. Browse related cabinetry & joinery tools.

Does a glue joint add strength compared to a flat edge?

Yes. The interlocking profile increases the glue surface area and helps align the boards, producing a strong, flush panel.

Should I use this bit in a router table?

Yes. A router table provides the steady support needed for accurate, repeatable glue joint cuts.

Who makes this glue joint router bit?

It is made by Infinity Cutting Tools. Explore the full line of carbide router bits.
