SKU: 06-699

Infinity Tools 1/2" Shank Car Audio Super Flush Trim Router Bit w/ 4 Bearings

58% off
$49.90 $119.90

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Car Audio Super Flush Trim Bit with 4 Bearings

These specialized flush trim router bits are designed to give the user a 1/32" offset - oversized or undersized - allowing you to follow a template and create pieces that are either 1/32" larger or 1/32" smaller than the original. Ideal for making speaker boxes where vinyl coverings and other components need additional space in order to fit together, these bits are precision made from the highest quality steel and micrograin carbide cutting edges and feature optimally sheared cutting edges to leave a perfectly finished surface. This high-quality construction means that you'll be able to make small rabbets and steps in a wide range of materials for longer periods of time between sharpenings than you would with conventional router bits.

The Super Flush Trim Bit (06-699) includes four stacked bearings to allow you to flush cut stacked or separated templates. With this bit you'll be able to make complicated shapes from varying template components in a single pass. Extra long cutter and aggressive shear-angled carbide cutting edges make for excellent chip ejection and superb cut quality.

  • C4 Micro-grain carbide tips for a long life and repeated sharpening
  • Silver PTFE coating reduces resin build-up for fast and easy cleaning
  • Aggresive shear-angled geometry for clean cuts without fraying or torn edges

The Infinity Cutting Tools Difference

Black geometric logo with stylized letters in a square shape on a white background

Frequently Asked Questions

What shank size does this flush trim bit have?

It has a 1/2" shank, which suits routers and router tables that accept a 1/2" collet for heavier flush-trim work. Explore more flush-trim router bits.

What is the 1/32" offset for?

The bit produces parts 1/32" larger or 1/32" smaller than the template, giving the extra clearance needed when vinyl coverings and components must fit together in speaker boxes.

Why does it have four bearings?

The four stacked bearings let you flush cut stacked or separated templates, so you can create complicated shapes from varying template components in a single pass. Pair it with router templates.

What is the cutter diameter and height?

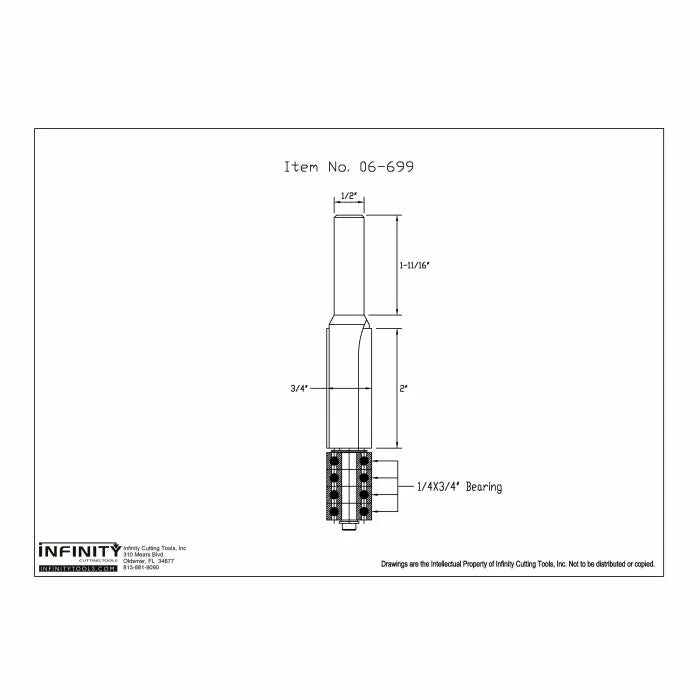

The cutter is 3/4" in diameter with a 2" cutting height, and the bearings are also 3/4" in diameter. Overall length is 5-3/32".

What carbide is used in this bit?

It uses C4 micrograin carbide tips for long life and repeated sharpening, with optimally sheared edges that leave a clean, finished surface.

What does the silver PTFE coating do?

The silver PTFE coating reduces resin build-up on the bit, which means faster, easier cleaning and helps keep the cutting edges running smoothly between sharpenings.

Is this bit only for car audio projects?

It is ideal for speaker boxes and enclosures, but the 1/32" offset and flush-trim action work well for any template routing where small rabbets or steps are needed in a range of materials. Browse more carbide router bits.

Can it cut clean shapes in one pass?

Yes. The extra-long cutter and aggressive shear-angled carbide edges promote excellent chip ejection and superb cut quality, letting you produce complicated shapes in a single pass.

Can the bit be re-sharpened?

Yes. The C4 micrograin carbide tips are designed for a long life and can be sharpened repeatedly, so the bit stays productive over time.

What's the model number of this bit?

This Super Flush Trim Bit is model 06-699. It features the four stacked bearings that set it apart from a standard single-bearing flush trim bit. See related flush-trim router bits.
