Infinity Tools 1/2" Shank Finger Joint Router Bit
Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

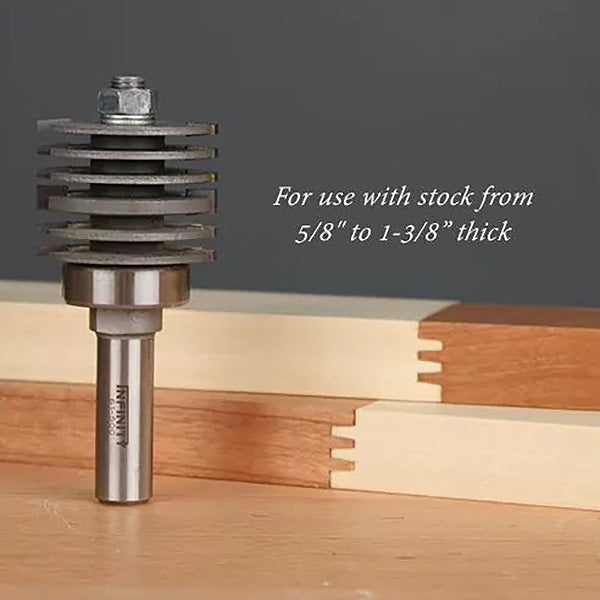

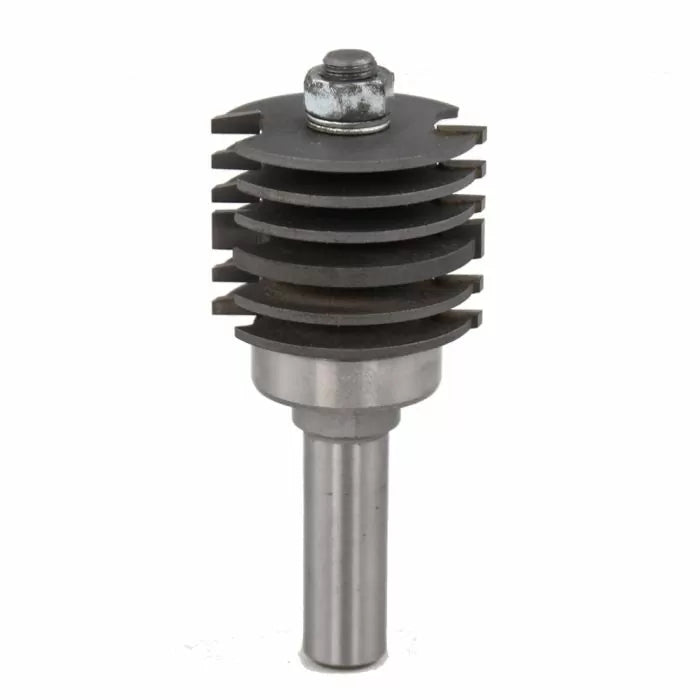

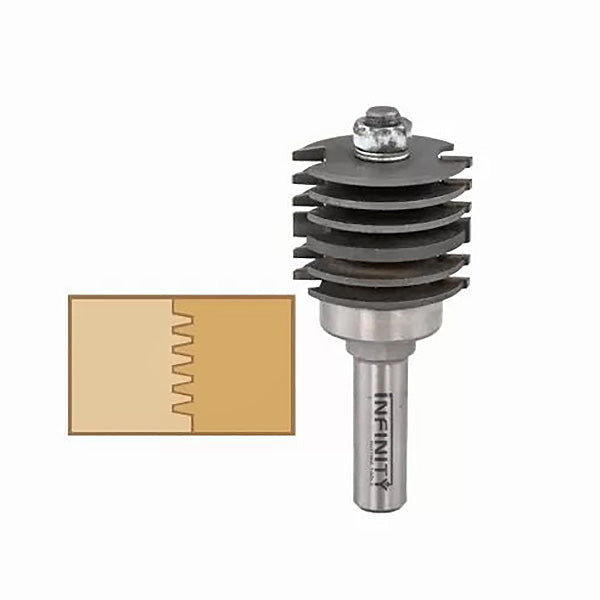

The Infinity Tools Finger Joint router bit produces strong joinery in a wide array of stock thicknesses. It features Micrograin carbide teeth, two-flute design and 6 removable cutters. Use it for stock as thin as 5/8" or as thick as 1-3/8". Watch our video to see how easy it is to make finger joinery on your next project.
Cutter Diam. 1-7/8" | Cutter Height 1-3/16" | O.A.L. 3-3/4" | Stock 5/8" to 1-3/8"
Quick to make and uncomplicated to design, when precisely cut, fit, and glued the humble box joint forms a lasting hold that also catches the eye. Our Infinity brand Box Joint Router Bit lets you route combs in stock up to 1-9/16th" tall in a single pass or up to 3-1/8" tall in two passes.
The interlocking fingers of a well made box joint are a thing of reserved dignity. You will see them on countless items throughout your day. From high end kitchen drawers and jewelry boxes, to simple crates and containers, they are a stalwart figure in the world of joinery. Quick to make and uncomplicated to design, when precisely cut, fit, and glued the humble box joint forms a lasting hold that also catches the eye.
Our Infinity brand Box Joint Router Bit is designed to do this time-tested method of joinery justice. Made with micro-grain carbide tips, the five 5/32" kerf slot cutters will hold their edge longer than you would've ever thought possible. The 1/2" shank arbor lets you route combs in stock up to 1-9/16th" tall in a single pass or up to 3-1/8" tall in two passes. And, with three bearings included in the set, you'll be able to cut at depths of 1/4", 3/8", and 1/2" deep with absolute confidence.
Setup is fairly simple, but important to get right. Two sides of the box will be set to leave an open notch at the top. In this case in 1/4" stock. A backer board is used to avoid tearout on the back of your piece, and the same cut should be made on both ends of these boards. Note that clamping in place is strongly recommended to keep the cuts accurate.
The cut on the mating two sides is set up to leave a full tongue on top, so the two pieces will mate exactly. Again, this same cut will happen on both ends of these pieces. Sometimes that piece is very small, making the clamping all the more important.
As mentiones, the bit is shipped with three bearings to all cuts at depths of 1/2" (left), 3/8" (middle), and 1/4" (right) deep with absolute confidence. Bearing changes can easily be made from the top while the bit is still in the router table.
Need to make a taller box? With a proper bit set-up you can make a 3-1/8" tall box in two passes. For gifts, for collections for hobbies or your own home business, box joints are quick, strong and beautiful. A Box Joint Router Bit belongs in every shop.
The Infinity Cutting Tools Difference
