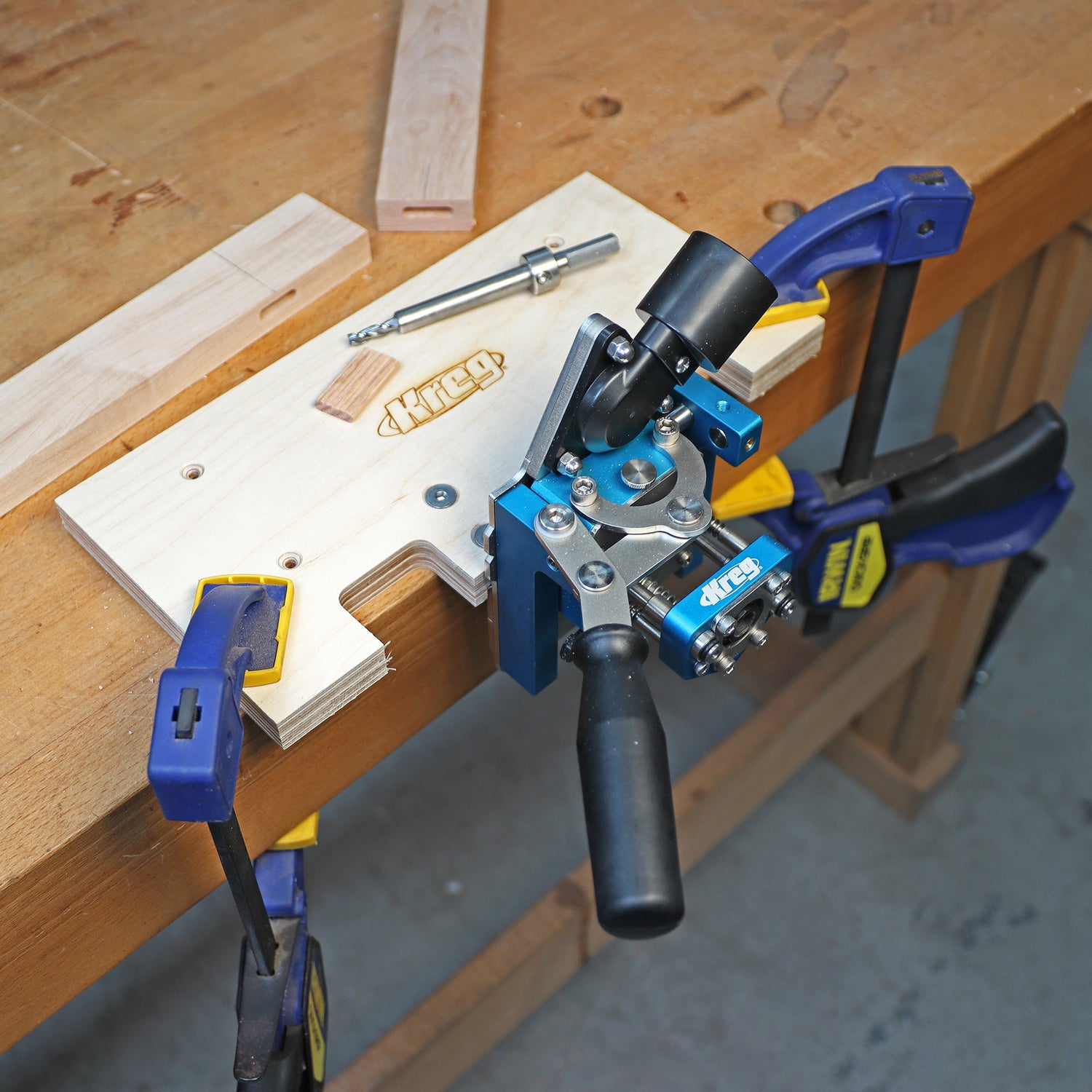

Kreg MortiseMate Loose Tenon Jig

The Kreg® MortiseMate™ Loose Tenon Jig revolutionizes traditional wood joinery, making it easier than ever to create precise, hidden loose tenon joints. Designed to combine the accuracy of a router with the simplicity of a drill, this innovative tool features an auto-indexing step-down mechanism, micro adjustment screws, and an integrated mini work surface—allowing you to produce professional-quality joints with just a drill, no router required.

The MortiseMate's unique auto-indexing step-down mechanism ensures consistent, precise mortise cuts. As you work, the cutter automatically steps down by 1/16" with each pass, ensuring flawless joints every time, without the need for complex setups.

Achieve a perfect fit for your loose tenons with the micro adjustment screws, which allow you to fine-tune the mortise width for tighter or looser fits, depending on your project needs.

The built-in mini work surface makes clamping your workpiece quick and easy, whether you're working with trigger clamps for a permanent setup or need to move the jig around for a more portable solution.

Ideal for high-precision woodworking, the MortiseMate simplifies projects that require strong, accurate joints, saving you time while delivering superior results.

Key Features:

• Create mortises for loose tenon joinery using just a drill (no router needed)
• Available for tenons in 6 mm, 8 mm, and 10 mm thicknesses

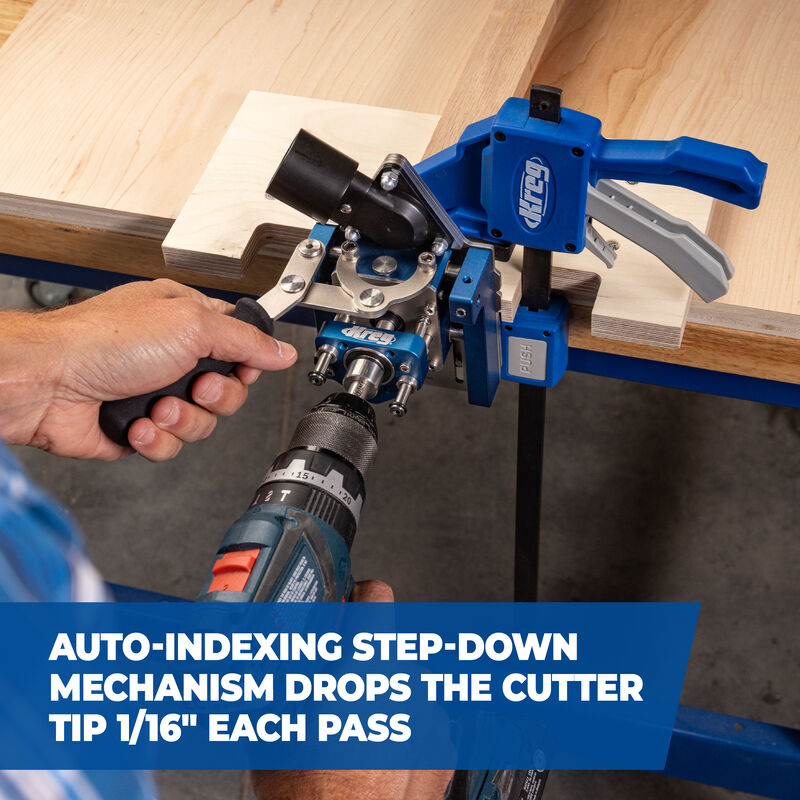

• Auto-indexing step-down mechanism lowers the cutter by 1/16" per pass for consistent, accurate mortise depths. Full swings of the depth lever engage the mechanized step-down system automatically.

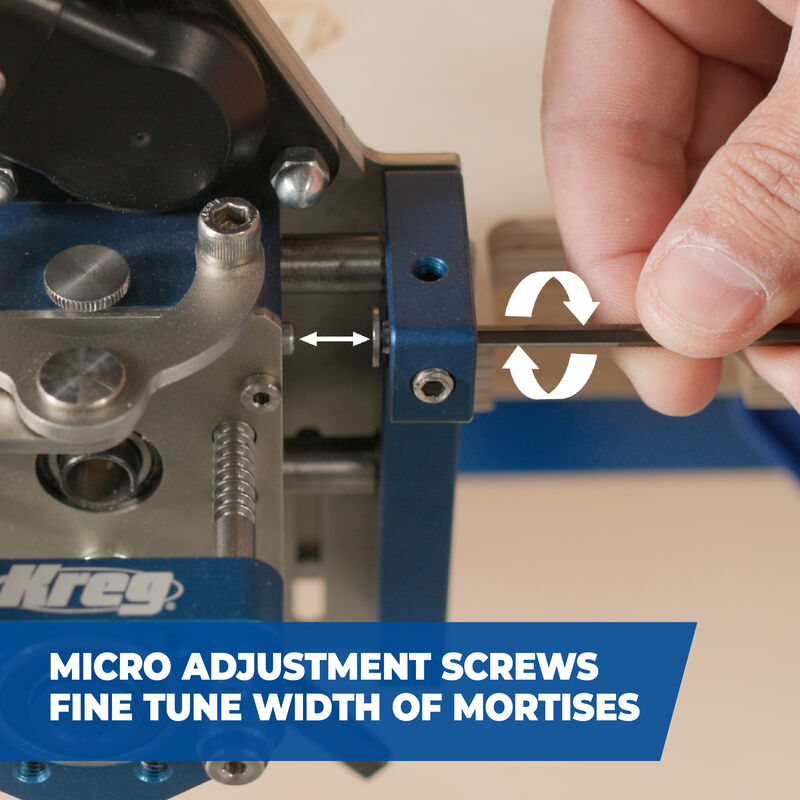

• Micro adjustment screws for precise control over mortise width, ensuring the perfect fit for your tenons
• Mini work surface simplifies setup and clamping for added convenience
• Fits workpieces 1/2" to 1 1/2" thick

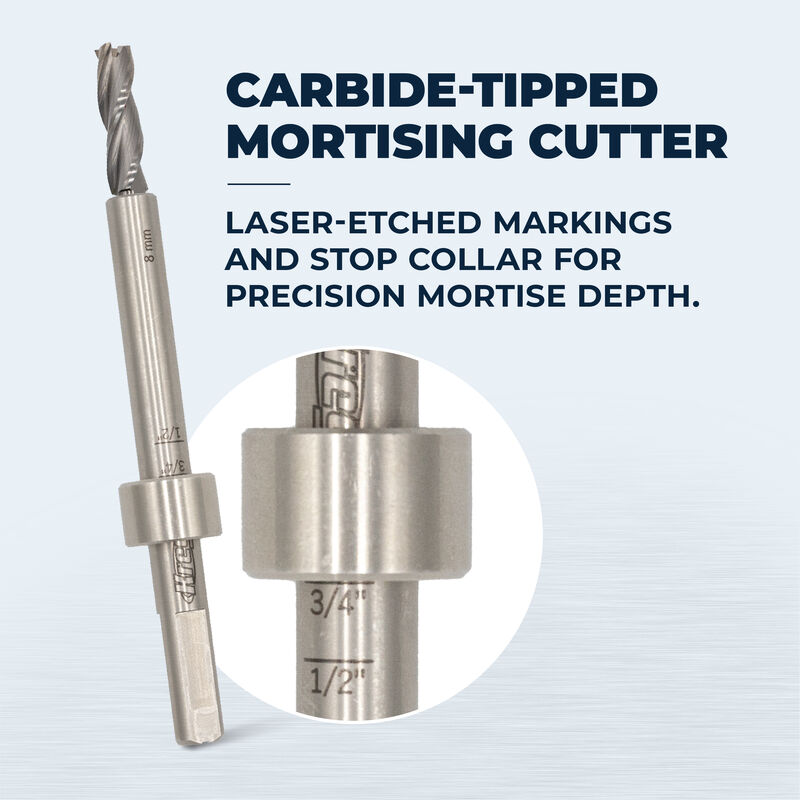

• Includes carbide-tipped 6 mm Mortising Cutter, with 8 mm and 10 mm cutters sold separately
• Laser-etched markings on the cutter make it easy to adjust for commonly used mortise depths
• Quick setup for 90-degree joints and panel projects

Construction:

• Professional-grade stainless steel and precision-machined anodized aluminum jig body
• Plywood mini work surface for stable support

Capacity:

• Cutting depth in 1/16" increments, up to 3/4" with 6 mm cutter, 1" with 8 mm and 10 mm cutters
• Fits workpieces 1/2" to 1 1/2" thick

Compatibility:

• Compatible with MortiseMate Mortising Cutters and Loose Tenons

Included Items:

• MortiseMate™ Loose Tenon Jig
• 6 mm carbide-tipped Mortising Cutter with Stop Collar
• Mini Work Surface

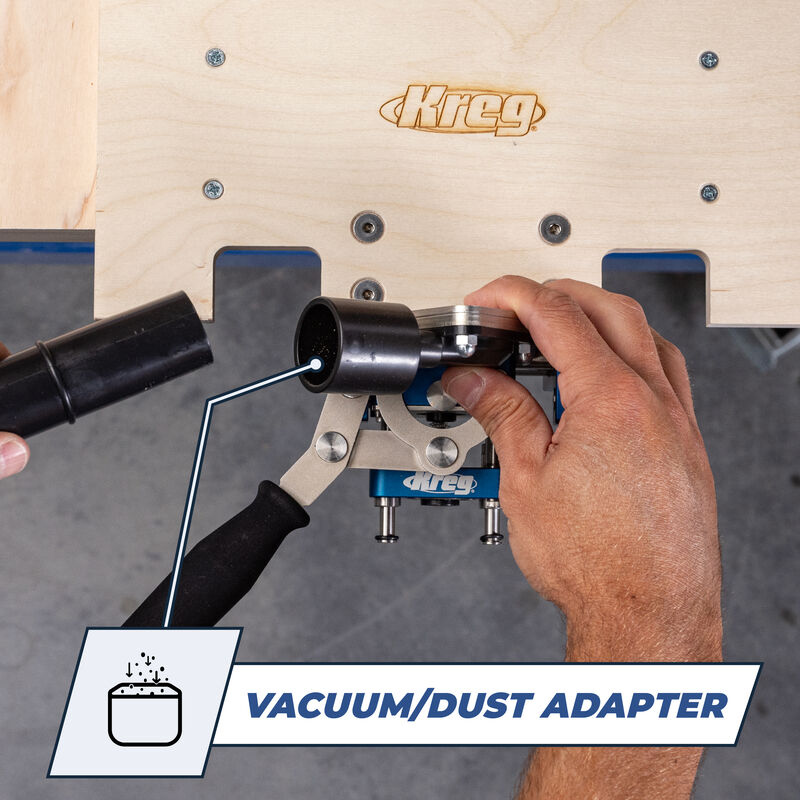

• Dust Collection Adapter (for 1 1/4" vacuum hoses)
• Hex Wrenches (5/32", 1/8", 3/16")
• Owner’s Manual
• Loose tenons sold separately

Warranty:

• 3-year limited warranty

The Kreg® MortiseMate™ Loose Tenon Jig is a game-changer for woodworkers who demand precision, simplicity, and professional results.
