Infinity Tools Slot Cutter w/ 1/2" Shank Arbor

Q: What shank size does this slot cutter have?

This version mounts on a 1/2" shank arbor , which fits any router or router table that accepts a 1/2" collet. Browse more carbide router bits for your table.

Q: Is this slot cutter anti-kickback?

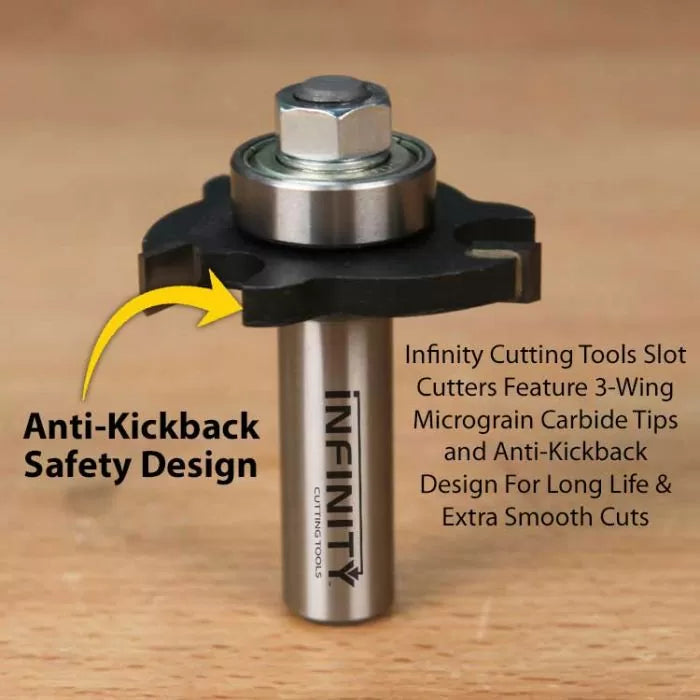

Yes. The three-wing body is an anti-kickback design , which improves control and helps produce clean cuts in both hardwood and softwood.

Q: What bearing comes with the slot cutter?

It includes the 5/16" x 7/8" bearing (BR-105) , which sets the standard 1/2" depth of cut right out of the box.

Q: What is the diameter of this cutter?

The cutter has a 1-7/8" outside diameter and a 5/16" inside diameter, with a 7/8" bearing as supplied.

Q: Who makes this slot cutter?

It is made by Infinity Cutting Tools , who manufacture a full range of carbide router bits for woodworking.

Description Reviews Q&A Documents Blog

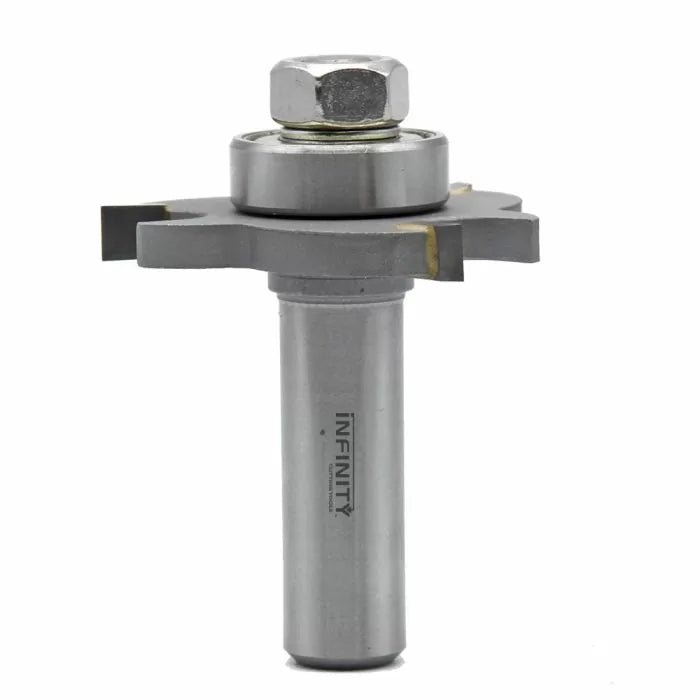

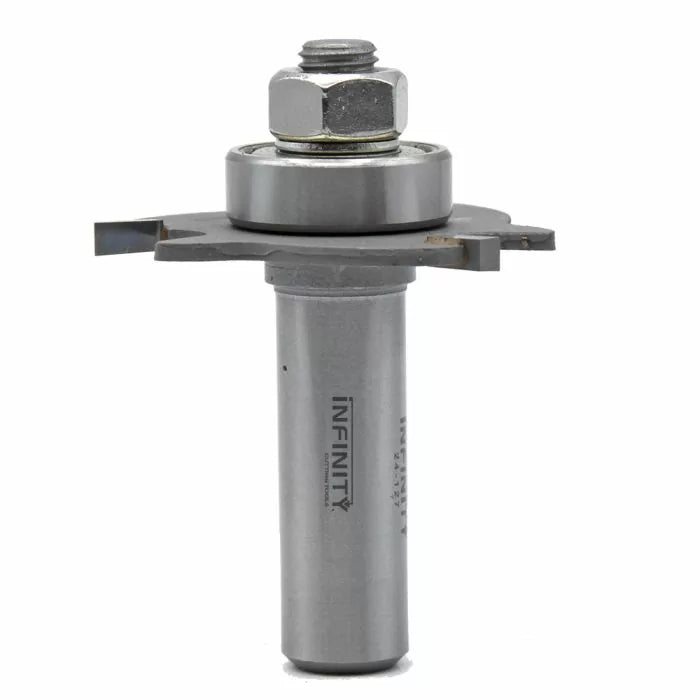

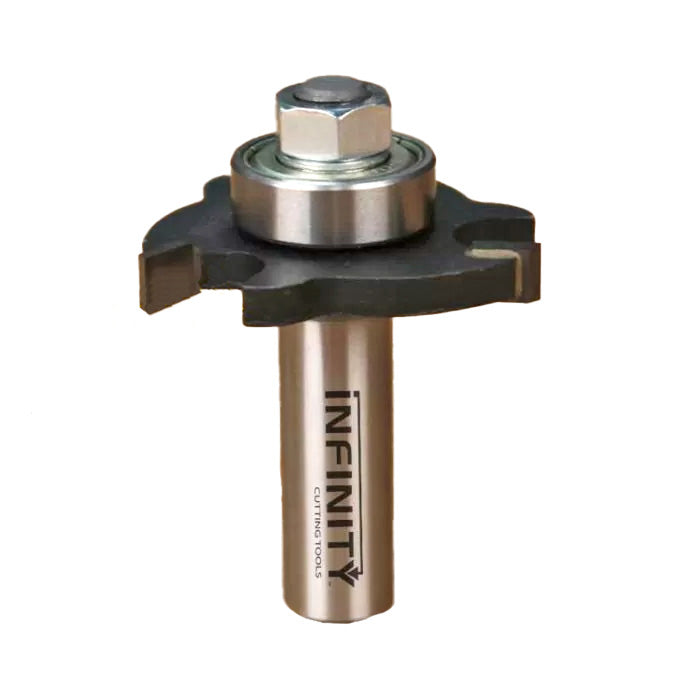

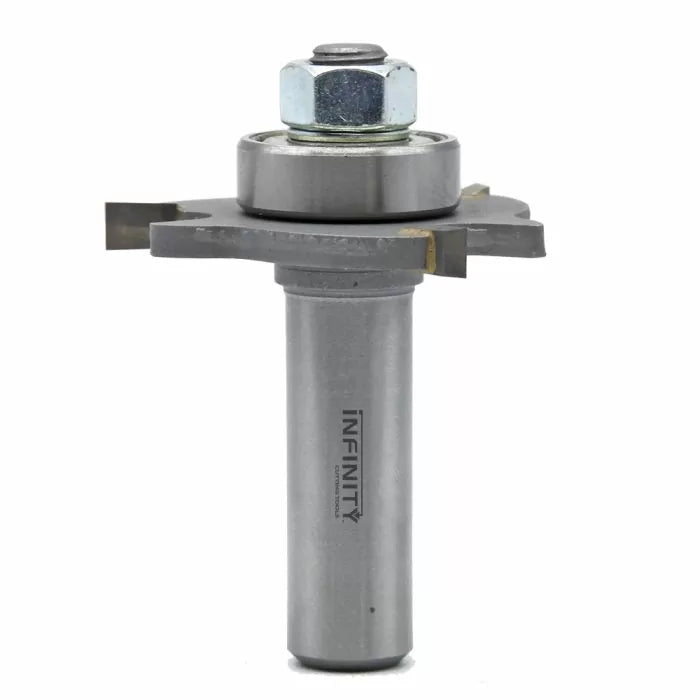

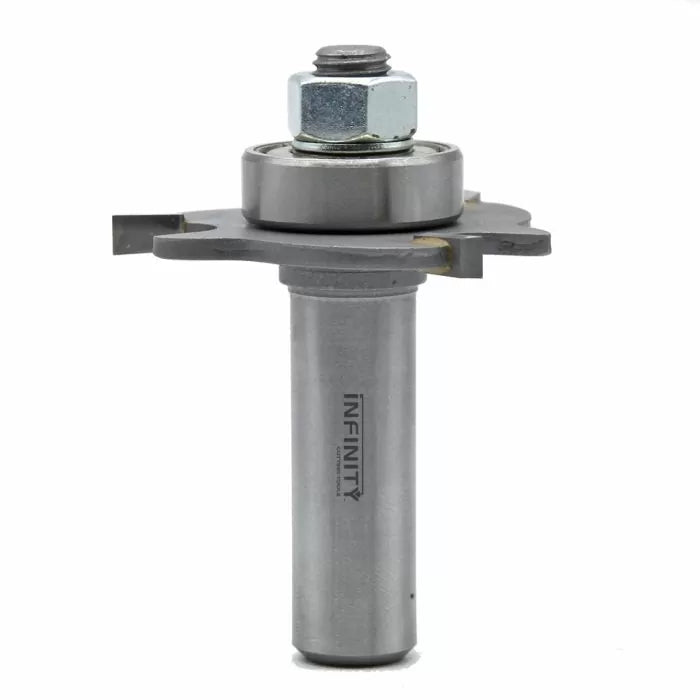

Infinity Tools Anti-Kickback 3-Wing Slot Cutters Produce Perfect Cuts In Hard & Softwood

Our three-wing slot cutters cut rabbets or grooves, slot for biscuits, mill tongue and groove stock or rout grooves for T-molding. Out slot cutter router bits with arbors also include our 5/16" x 7/8" bearing (BR-105) which allows for a standard 1/2" depth of cut.

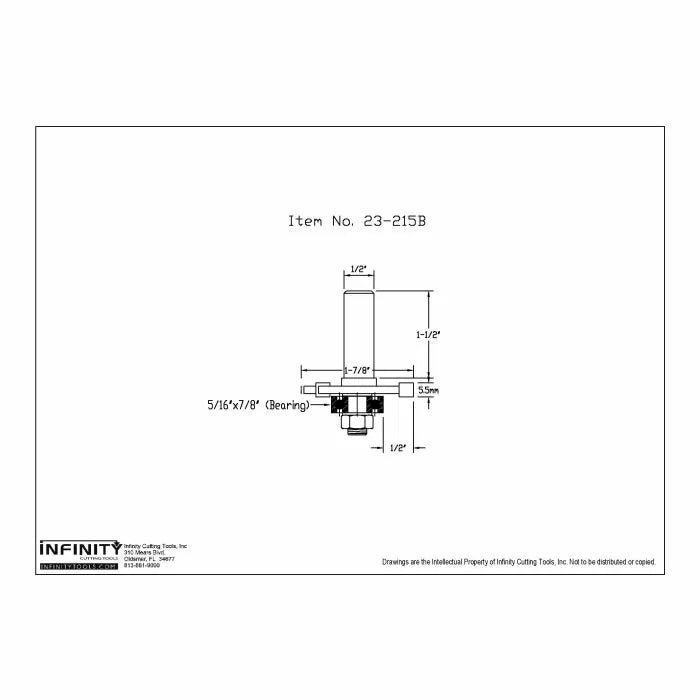

Tech Specs:

Inside Diameter 5/16"
Outside Diameter 1-7/8"
Depth of Cut 1/2"

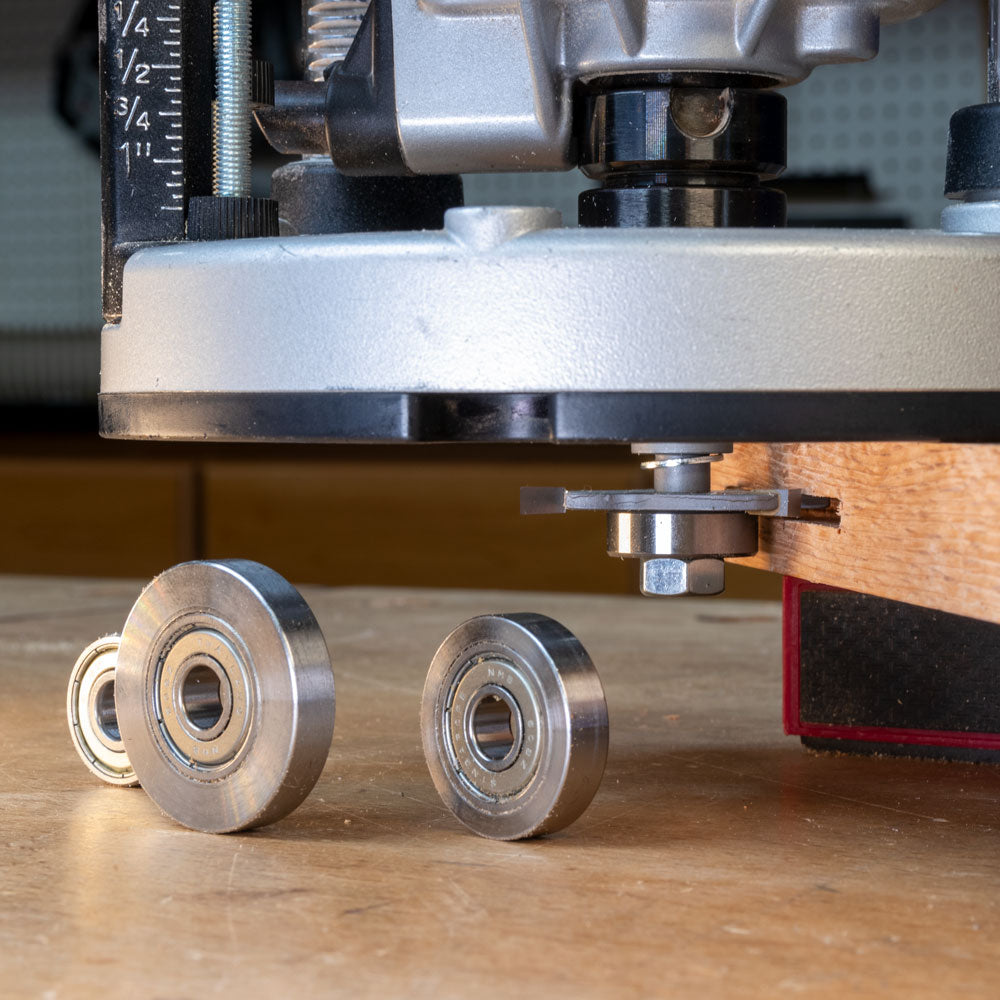

If you would like to cut additional depths, visit our Router Bearings Page and pick up the following:

For 3/8" Depth of Cut: 1-1/8" diam. bearing (BR-116)
For 5/16" Depth of Cut: 1-1/4" diam. bearing (BR-117)
For 1/4" Depth of Cut: 1-3/8" diam. bearing (BR-118)

Router Bit Suggested RPM & Safety Guidelines

Gluing up a curved edge is tricky. Adding a spline to align the two halves makes things much easier, but a curvy spline!? No worries!

Infinity Tools anti-kickback 3-wing slot cutters are designed for optimal performance and results when you’re milling slots.

And they’ll follow any edge at any depth, for a perfect, and beautiful, joint.

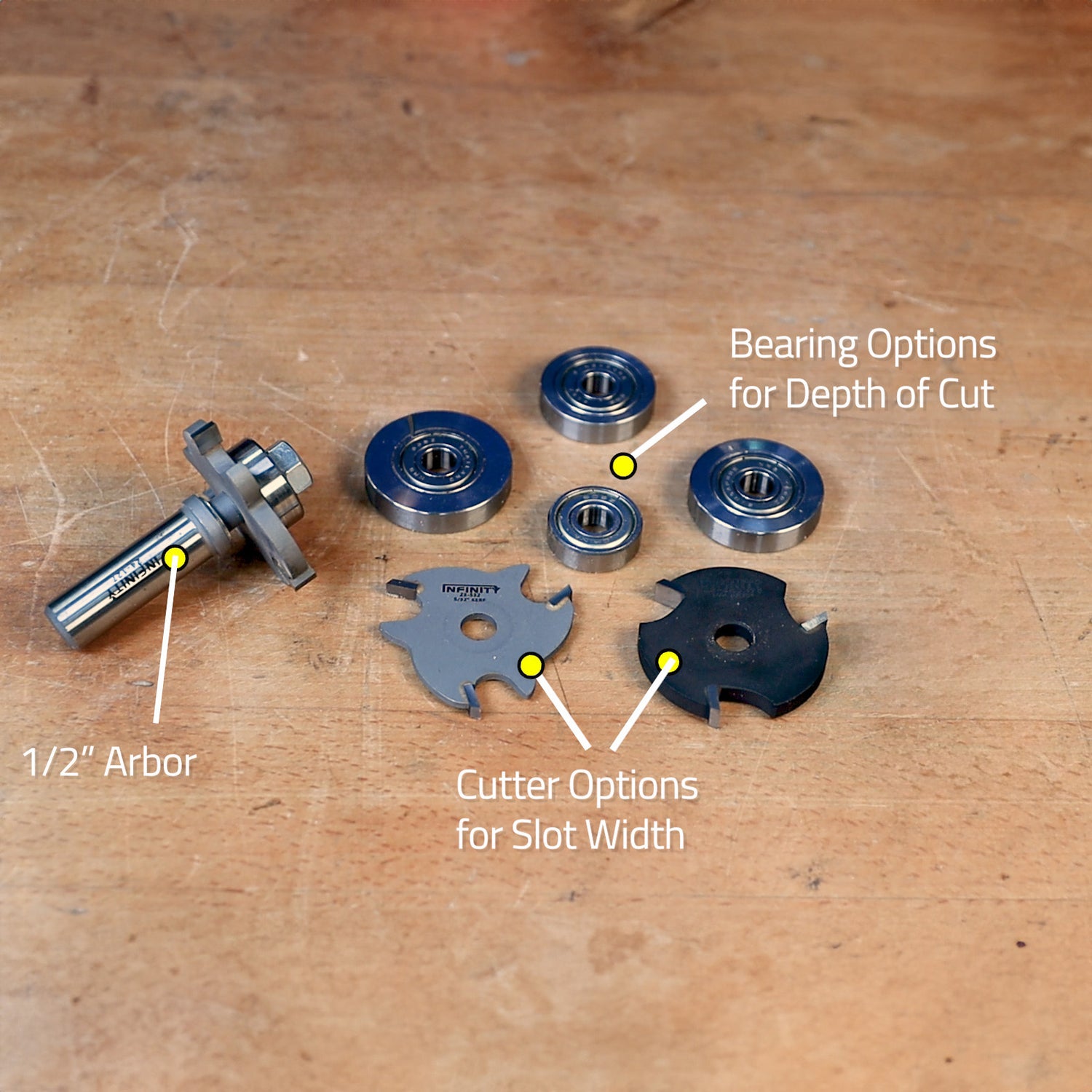

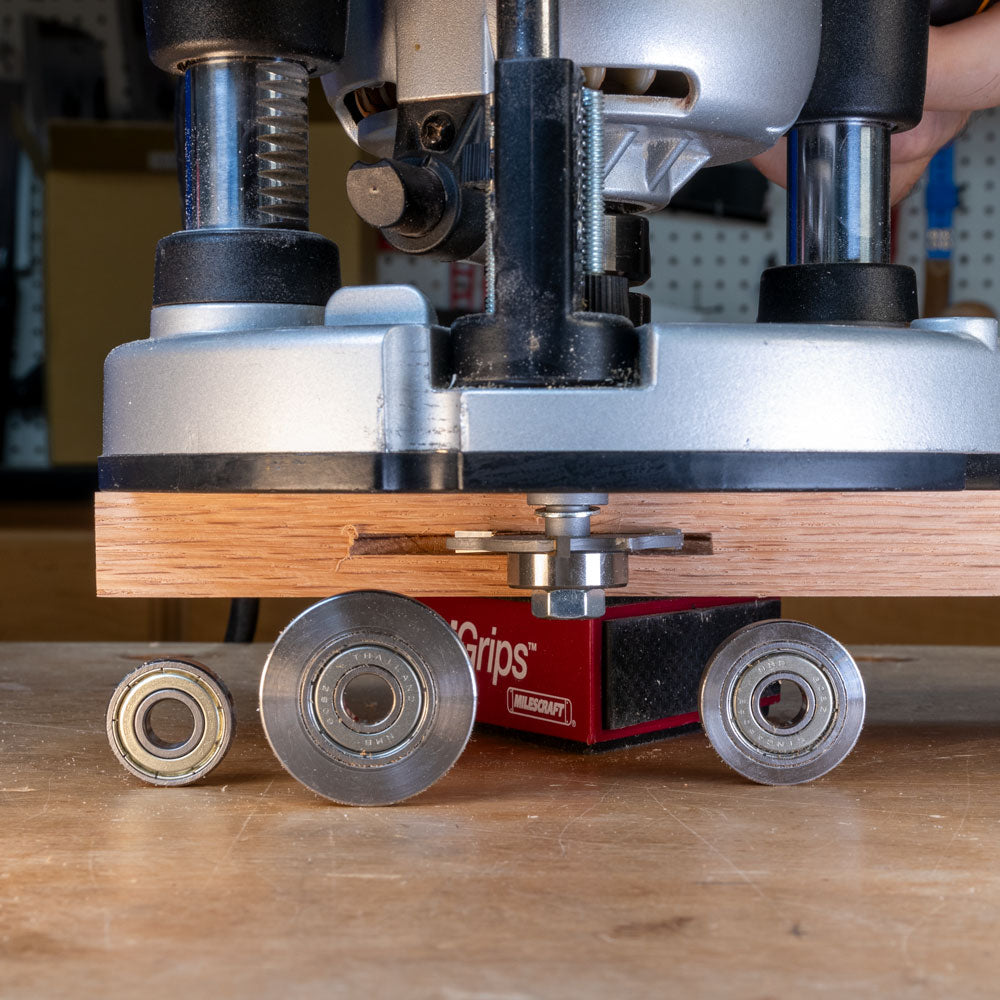

Switching cutters and bearings for the best performance is a simple task. Choose either a ½” or ¼” arbor, then select the cutter thickness preferred. Select the correct diameter bearing for your slot depth, and assemble.

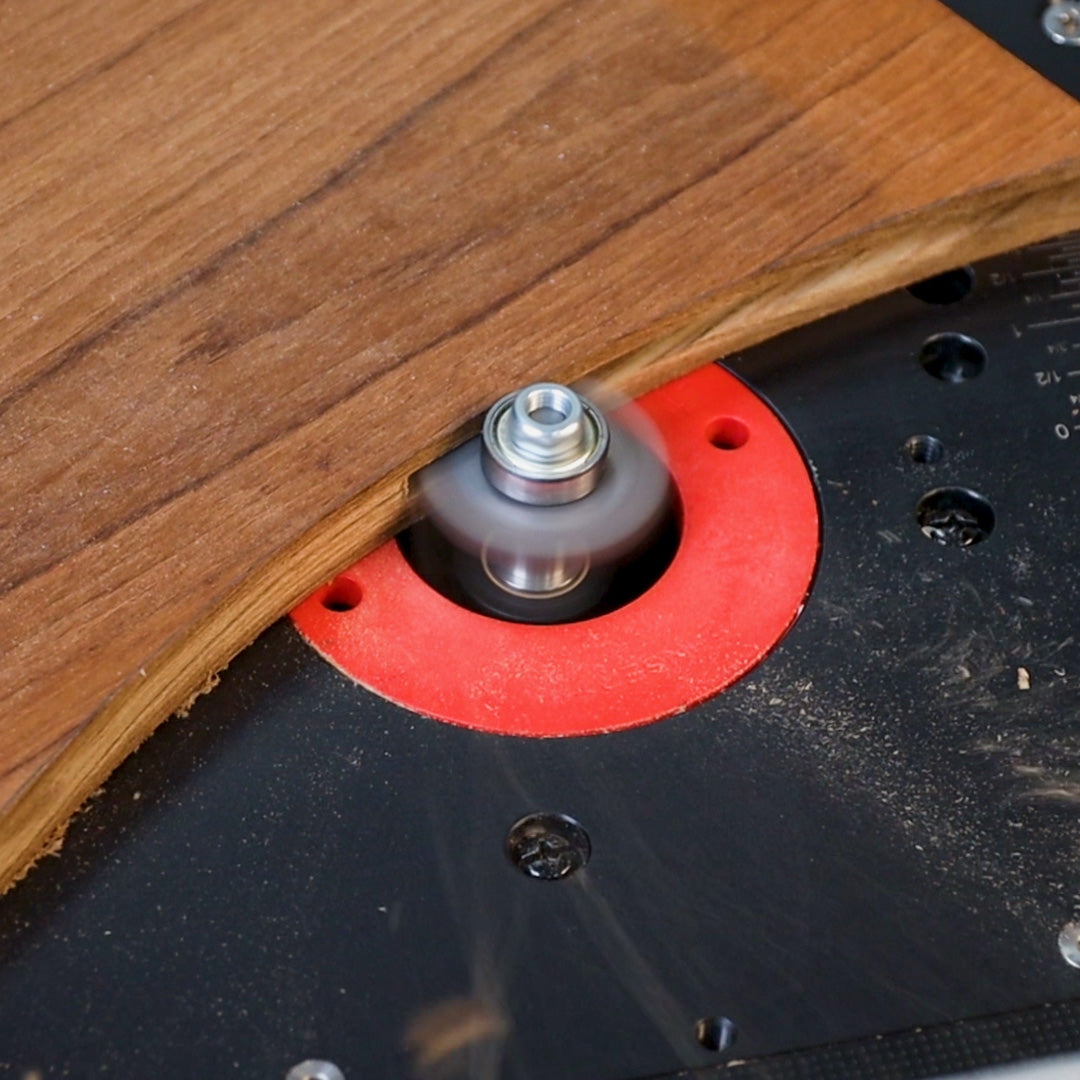

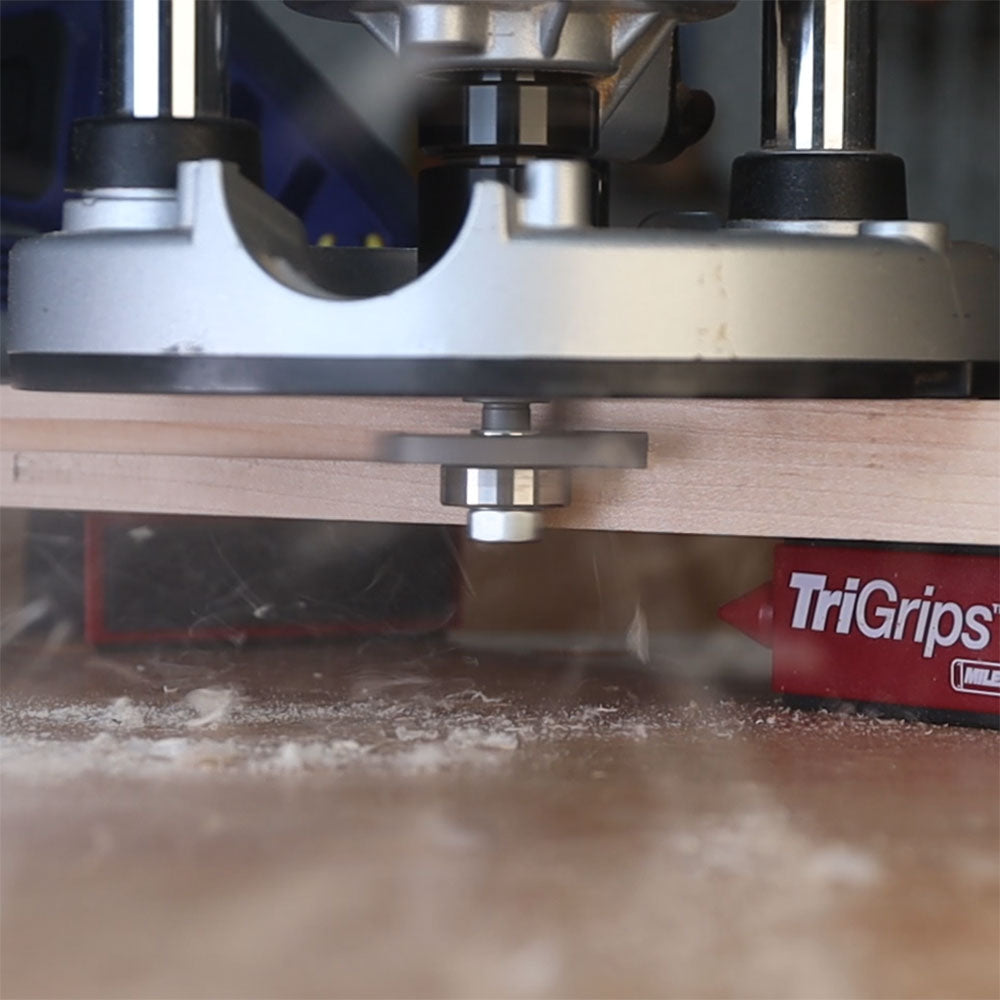

Infinity slot cutters are perfect for milling biscuit slots, or for making grooves that require a specific start and stop point. Best of all is having the ability to mill grooves in curved faces.

Go beyond just straight-line table saw cuts and lay grooves into curves, for decorative features or even to accommodate curved loose tenons for ornamental joinery. Infiinity’s slot cutters will open worlds of possibilities for ornamental features or specialty joinery.

Frequently Asked Questions

What shank size does this slot cutter have?

This version mounts on a 1/2" shank arbor, which fits any router or router table that accepts a 1/2" collet. Browse more carbide router bits for your table.

What depth of cut does the slot cutter make?

As supplied with the 5/16" x 7/8" bearing (BR-105), it cuts a standard 1/2" deep slot. You can change depth by fitting a larger bearing.

How do I cut a shallower slot than 1/2"?

Swap the bearing for a larger diameter: a 1-1/8" bearing gives a 3/8" cut, a 1-1/4" bearing gives 5/16", and a 1-3/8" bearing gives 1/4". The larger the bearing, the shallower the cut.

What is a three-wing slot cutter used for?

It cuts rabbets and grooves, slots for biscuits, mills tongue-and-groove stock, and routs grooves for T-molding. It's a versatile choice for grooving and panel joinery.

Is this slot cutter anti-kickback?

Yes. The three-wing body is an anti-kickback design, which improves control and helps produce clean cuts in both hardwood and softwood.

What bearing comes with the slot cutter?

It includes the 5/16" x 7/8" bearing (BR-105), which sets the standard 1/2" depth of cut right out of the box.

What is the diameter of this cutter?

The cutter has a 1-7/8" outside diameter and a 5/16" inside diameter, with a 7/8" bearing as supplied.

Can I use this cutter for tongue-and-groove joints?

Yes. Milling tongue-and-groove stock is one of its core uses, along with rabbets, grooves, and biscuit slots. See related joinery router bits.

Should I use this in a handheld router or a router table?

A router table is recommended for slot cutters because it offers the best control and safety when guiding stock against the bearing.

Who makes this slot cutter?

It is made by Infinity Cutting Tools, who manufacture a full range of carbide router bits for woodworking.
