Infinity Tools Door Making Templates, Router Use Only. 20-Pcs.

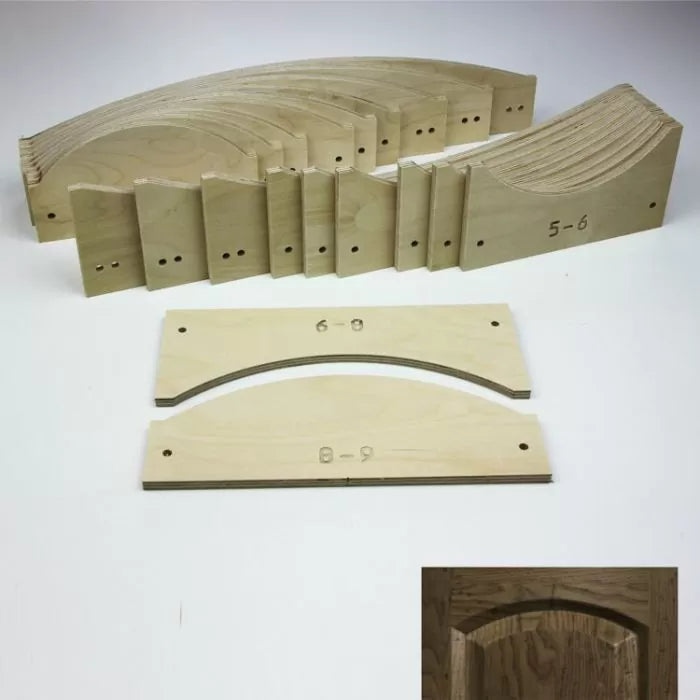

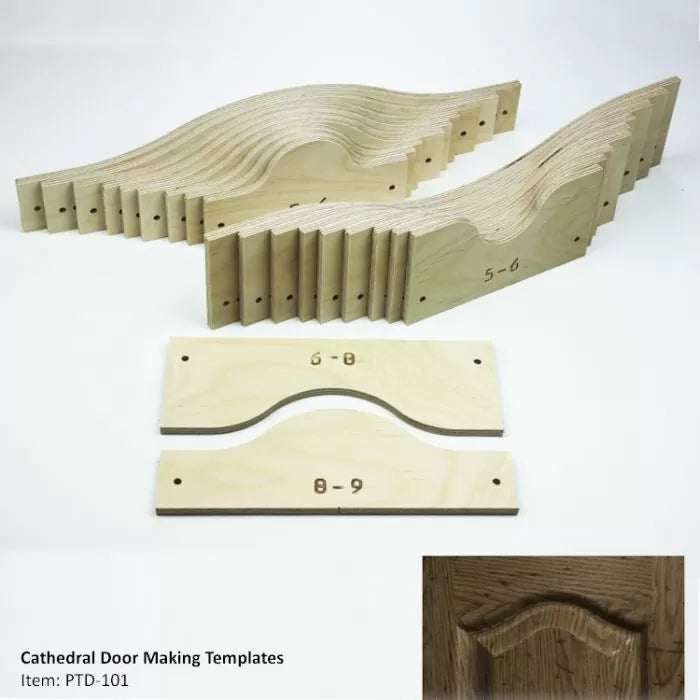

The set includes twenty templates — 10 for the panels and 10 for the rails. Browse more frame & panel templates.

No. These templates are designed for use with a table-mounted router only.

They're made of 3/8" thick Baltic birch plywood, which is thicker and stronger than many other brands and provides maximum bearing support.

They make parts from 5" to 18", or frames from 8-3/4" to 21-3/4", based on a 3/8" deep cope joint and a 2-1/4" wide stile.

They fasten to the workpiece with double-face tape or nails. For more secure fastening, you can use the optional Frame & Panel Master.

The templates feature a 1-3/4" rise for the cathedral-style arch on the door panels and rails.

They use exclusive indexing fences that center and align the workpiece on the template for accurate, repeatable cuts.

No. The templates can be used with or without the optional Frame & Panel Master, which adds more secure fastening for greater safety and faster production. See more router jigs & guides.

Yes. They carry a lifetime guarantee against defects in material or workmanship.

You can make beautiful cathedral-style cabinet doors using mating panel and rail shapes for frame-and-panel construction. Explore matching frame & panel templates.
