SKU: 84-191

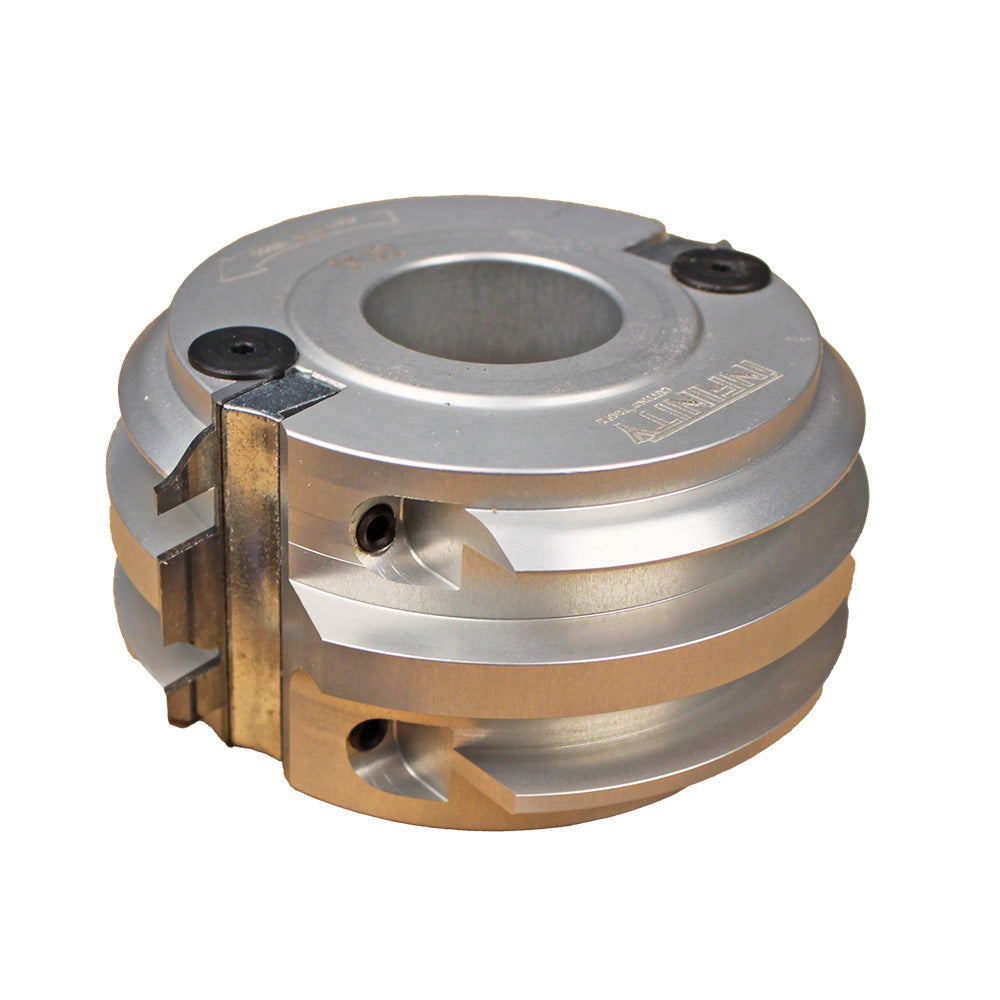

Infinity Tools Insert-Pro Combination Rail & Stile Shaper Cutter, 1-1/4" Bore

$279.90
Style

One Pc. Cabinet Door Shaper Cutter Makes Both The Rail & Stile Cut!

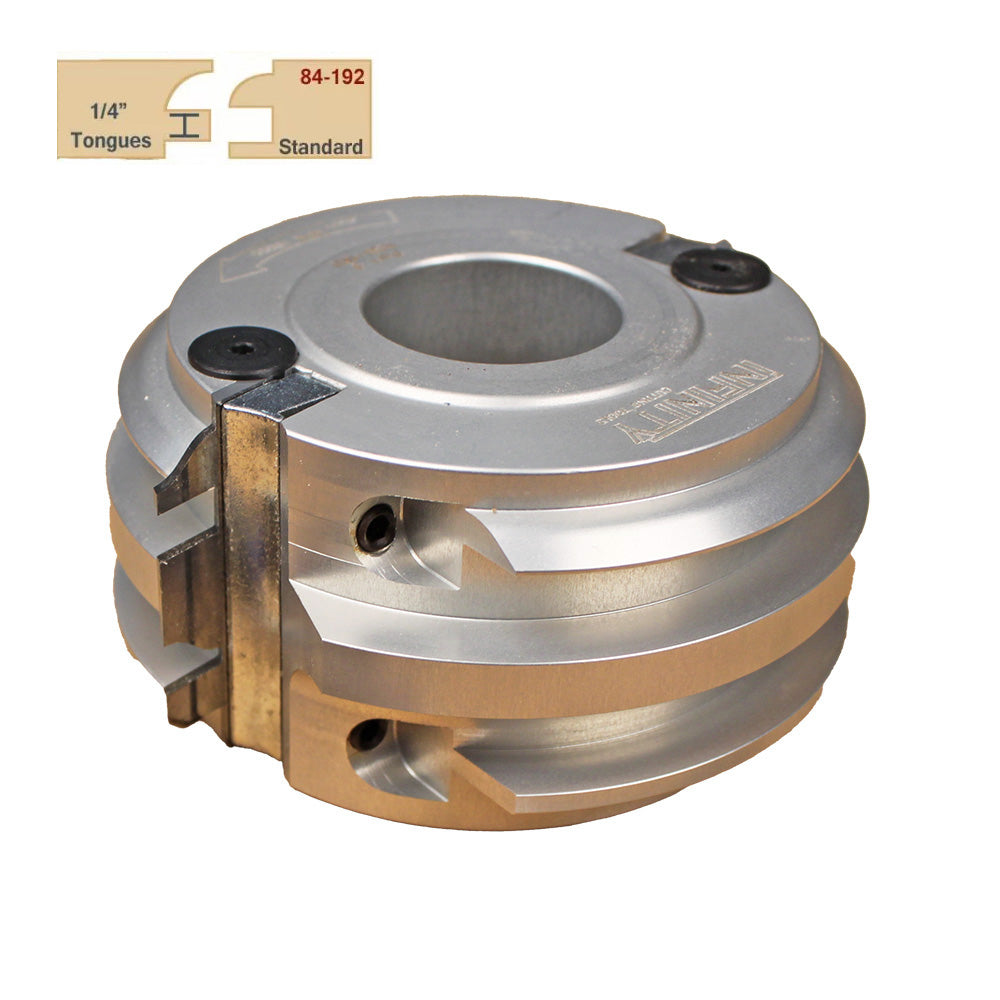

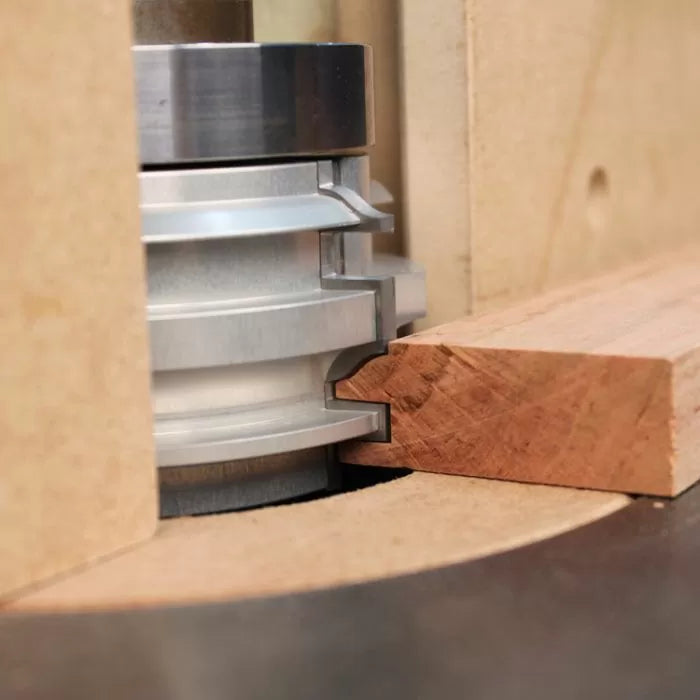

With this single high-quality shaper cutter head you'll be able to make both your rail and stile cuts for your next cabinet door project. Produce door frames between 3/4" and 7/8" thick with attractive 3/8" profile widths and 1/4" tongue and groove for door panel fitment, The Infinity Cutting Tools 1pc. Rail and Stile Cabinet Door Shaper Cutters can be raised and lowered to make one cabinet door part or another accurately and quickly without repositioning your shaper cutter's fence.

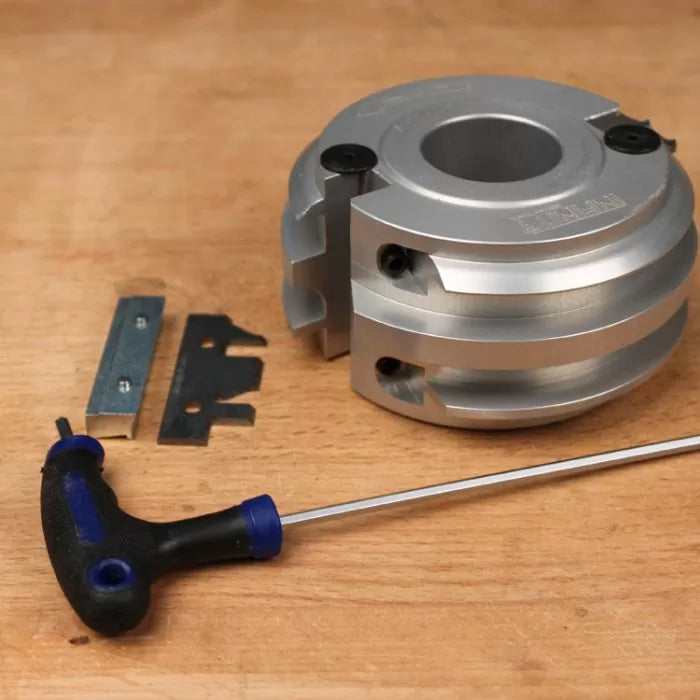

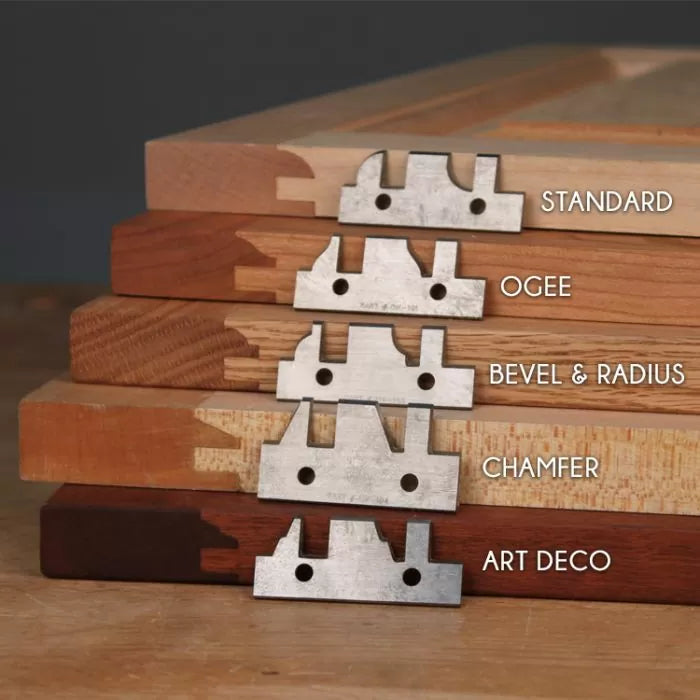

The solid carbide knives featured on these aluminum body shaper cutter heads are produced using premium raw materials and manufactured on state-of-the-art C.N.C. machinery. The extra-sharp carbide edges are precision ground on computer controlled equipment to ensure a perfect fit and leave the smoothest finish possible. We offer these 1pc. Rail and Stile Shaper Cutters in five of the most popular cabinet door profiles: Standard, Ogee, Bevel & Radius, Chamfer and Art Deco.

Buy the cutter head with the profile you want and then add more knives to get different profiles. That's the beauty of the this system. Great quality cuts, time savings and the ability to add add different profiles without having to invest in more than one cutter head.

Follow this link to view all our carbide profile knives for our 1-Pc. Rall & Stile cutter head

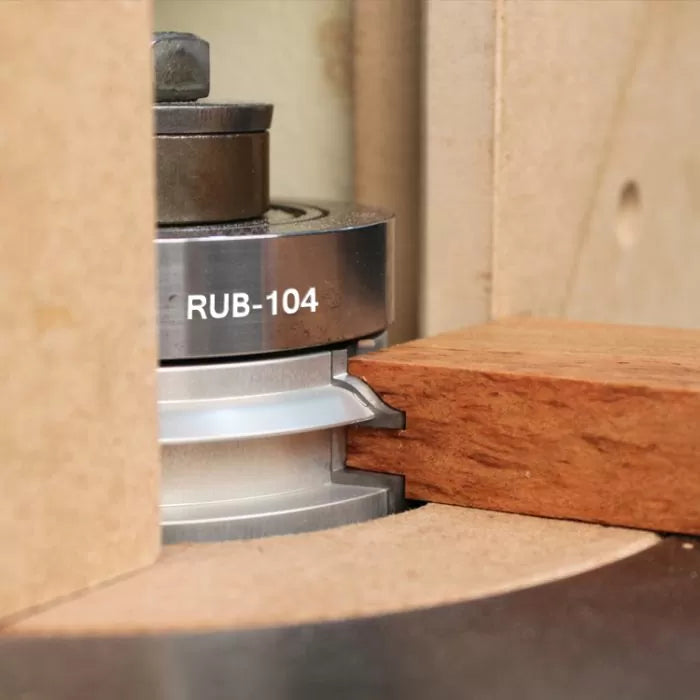

The 1-1/4" x 3-1/4" Rub Collar (item RUB-104) works in conjunction with any of the Insert-Pro 1-Pc. Rail and Stile shaper cutters to make fence setup fast and accurate. It also allows you to follow a template when making arched-top doors.

This investment will last a lifetime. Unlike traditional brazed carbide shaper cutters, our Insert-Pro line allows you to buy the cutter body and profile you want one time and then add more profiles as needed.

Features:

  • High quality micro-grain carbide cutting edges for superior cut quality
  • 4" Diameter
  • 2" Cutter Height
  • For stock from 3/4" to 1" thick
  • Profile widths are all 3/8" except for Shaker profile which is 7/16"
  • Construct high quality rails and stiles for your next cabinet door project without having to change cutter heads

Frequently Asked Questions

Does this one cutter make both the rail and the stile cut?

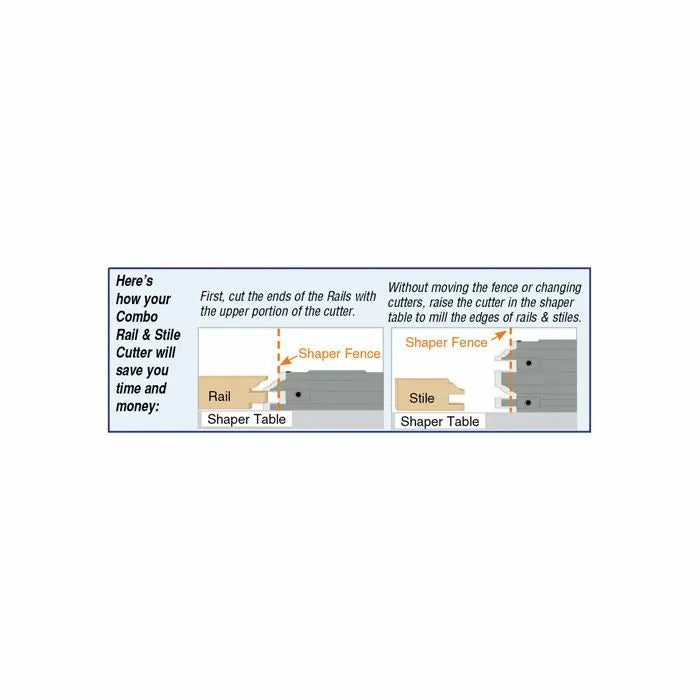

Yes. This is a 1-piece combination head that makes both the rail and the stile cut for a cabinet door. You simply raise and lower the head to cut one part or the other without repositioning your fence. It is part of the Insert Pro shaper cutter system.

What bore size is this shaper cutter?

This cutter has a 1-1/4" bore, so it is designed to fit shapers with a 1-1/4" spindle.

What are the cutter diameter and height?

The head measures 4" in diameter with a 2" cutter height, giving you the reach needed for full cabinet door rail and stile profiles.

What stock thickness does it work with?

It is built for stock from 3/4" to 1" thick, producing door frames with 3/8" profile widths and a 1/4" tongue and groove for panel fitment.

Which profiles are available?

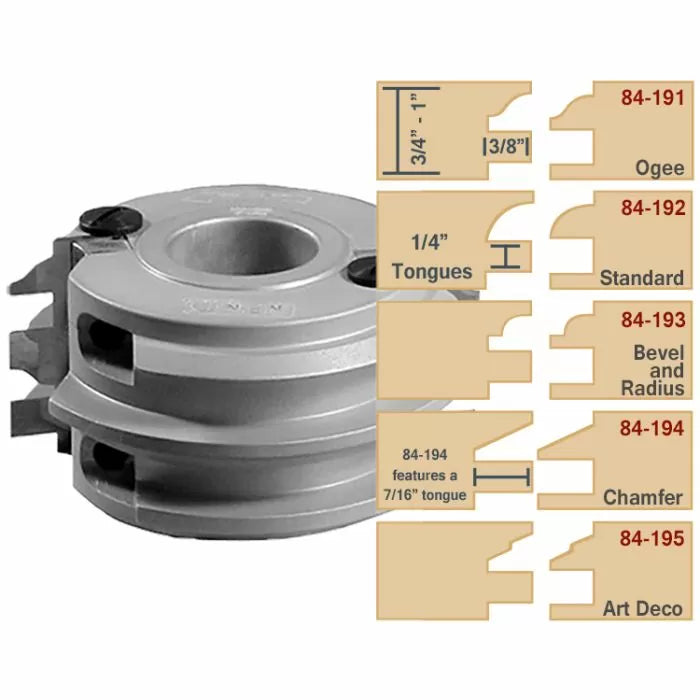

You can choose from five of the most popular cabinet door profiles: Standard, Ogee, Bevel & Radius, Chamfer, and Art Deco. Buy the head with the profile you want, then add more knives later to expand your options.

What are the cutting edges made of?

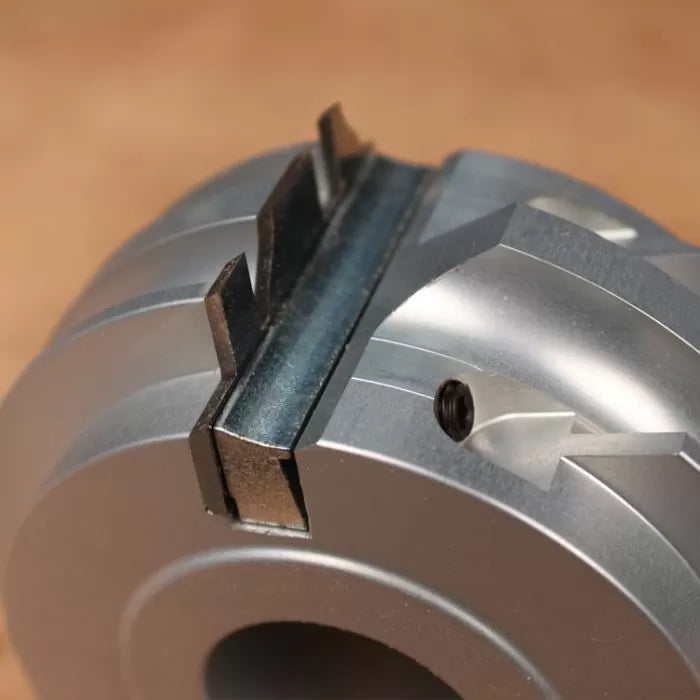

The head uses high-quality micro-grain solid carbide knives, precision ground on CNC equipment for a perfect fit and a smooth finish. The body is machined aluminum.

How is the Insert-Pro system different from brazed cutters?

Traditional shaper cutters have the carbide brazed onto the body, so you replace the whole head when you want a new profile or fresh edges. With Insert-Pro, the knives are mechanically installed and replaceable, so you buy one body and add profiles by buying knives. Explore the full Insert Pro line.

Can I add more profiles without buying another cutter head?

Yes, that is the main benefit of this system. Buy the cutter body once, then purchase additional carbide profile knives to create different door styles on the same head. See related shaper cutters & accessories.

What is the Rub Collar used for?

The 1-1/4" x 3-1/4" Rub Collar (item RUB-104) works with the Insert-Pro 1-Pc. Rail and Stile cutters to make fence setup fast and accurate. It also lets you follow a template when making arched-top doors.

Is this cutter good for building cabinet doors?

Yes. It is purpose-built to construct high-quality rails and stiles for cabinet door frames without changing cutter heads. Pair it with other door-making tools to complete your setup.
