SKU: 100-129

iGaging Magnetic Base with Indicator

Q: What does the magnetic base attach to?

The heavy-duty magnetic base attaches to any metal work surface and engages or releases with a built-in on/off switch. Browse more measuring & layout tools .

Q: Can I choose between a digital and a dial indicator?

Yes. The base is offered with either a digital or a dial indicator , both covering a 0"–1" range. A sturdy carry case is included.

Q: How accurate is the digital indicator?

The digital indicator has a guaranteed accuracy of 0.001" / 0.01mm , with a resolution of .0005" / .01mm / 1/128" across its 0–1" range.

Q: What probes come with the digital indicator?

It includes 4 probes : a carbide ball, a large flat, a small flat and a point, so you can choose the right contact tip for each measurement.

Q: What machines can I set up with this tool?

Use it to make precise adjustments to your table saw, bandsaw, jointer, drill press and router . It's especially handy for checking blade alignment and table saw runout. See related gauges & setup tools .

Q: Does the digital indicator read in metric?

Yes. The digital indicator has two reading functions, inch and metric , and also displays fractions, with absolute and incremental reading modes.

Q: What are the dial indicator's graduations?

The dial indicator reads 0.001" per line and 0.1" per revolution on an easy-to-read 2-1/4" white face, and is built to AGD specifications.

Q: Who makes this magnetic base and indicator?

It is made by iGaging . Pair it with other marking & layout guides for accurate machine setup.

$61.90

Option

With Digital Indicator With Dial Indicator

Description Reviews Q&A

This heavy-duty magnetic base will attach to any metal work surface with its on/off switch. The metal extension arm features a pivot joint and has a convenient attachment point for either Digital or Dial indicators.

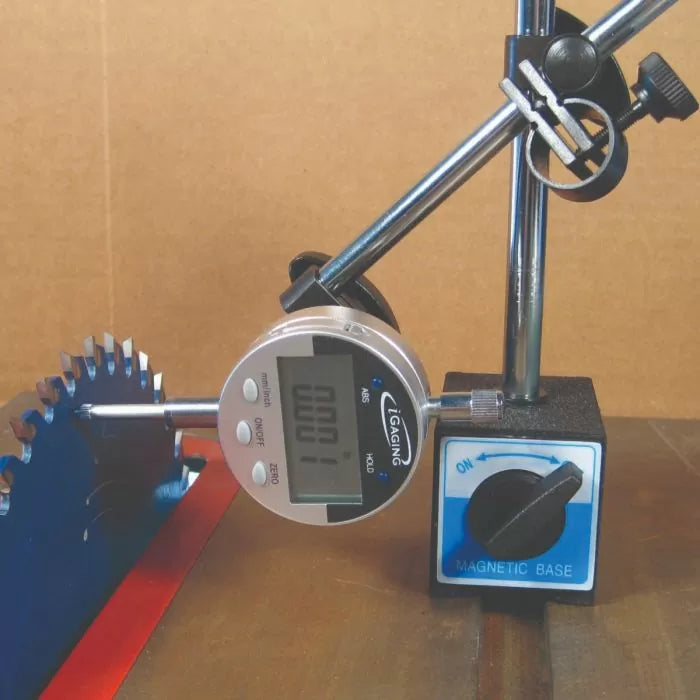

Use this handy tool to make precise adjustments to your table saw, bandsaw, jointer, drill press and your router. It's especially useful to check blade alignment and table saw runout. The extension arm has a spring-loaded pivot point that attaches to the arm of the dial indicator.

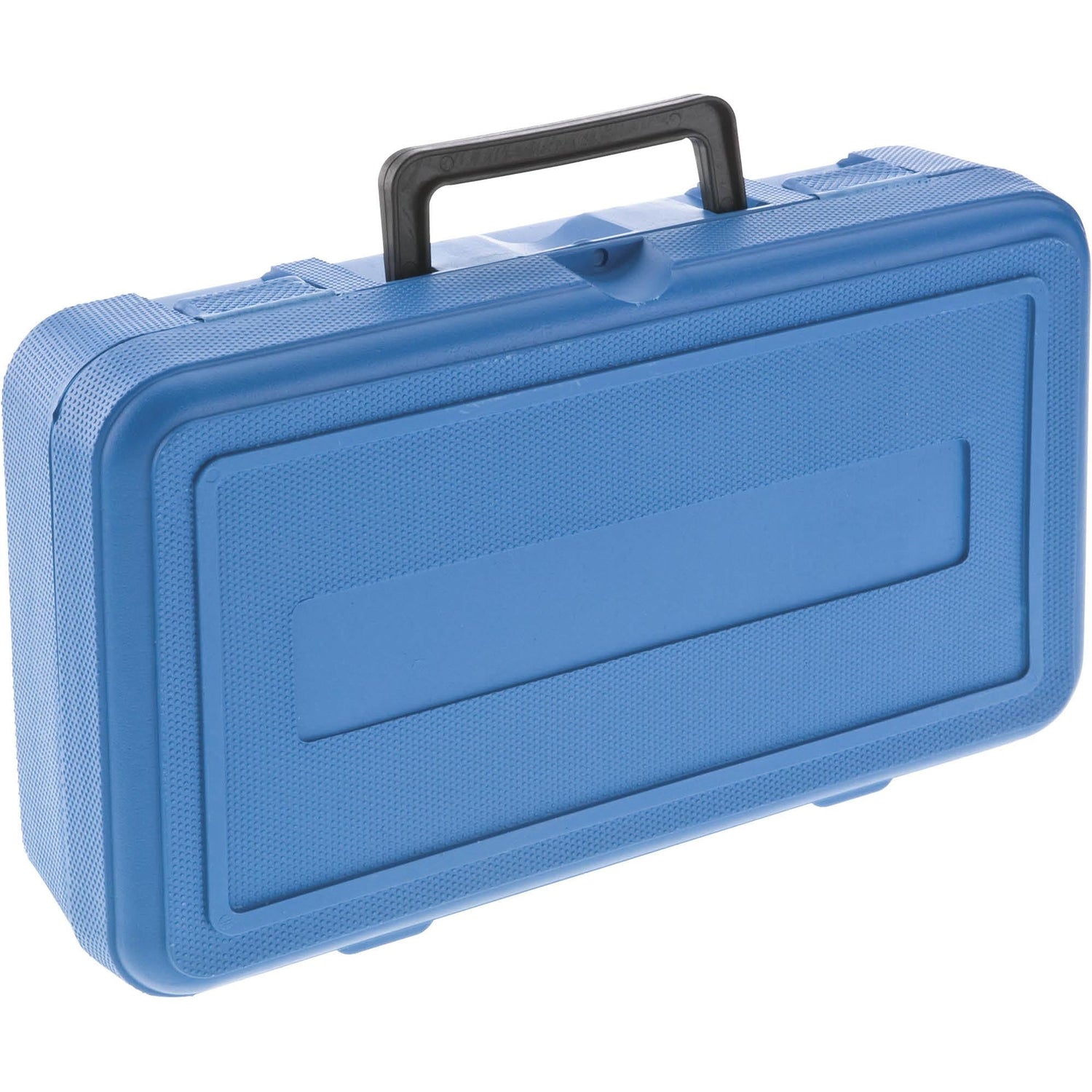

Choose either a digital or dial indicator a 0" - 1" digital indicator that displays in inches, metric & fractions with a guaranteed accuracy of 0.001" / 0.01mm. Includes our sturdy carry case.

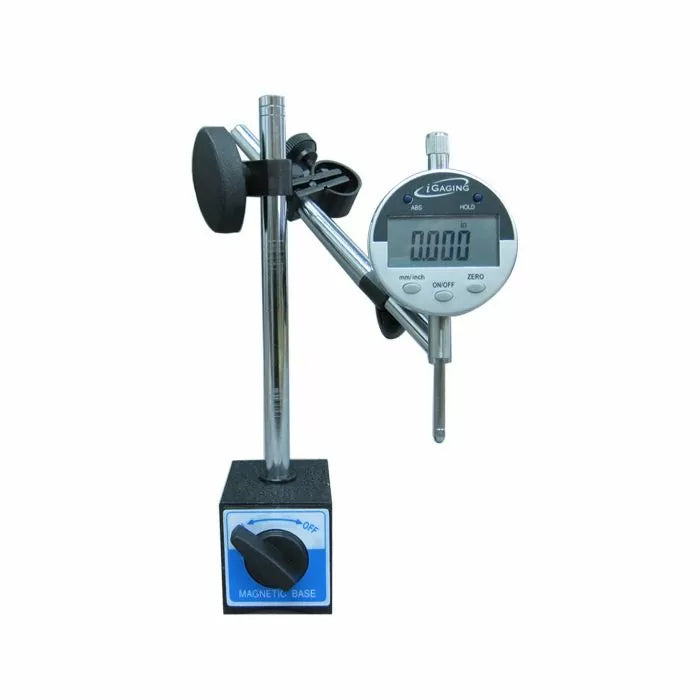

Digital Indicator Features:

4 probes: Carbide ball, large flat, small flat, point
2 reading functions: inch and metric
Extra large LCD display
Absolute & incremental reading flat back or Lug back option included
Protective case
Range 0-1" resolution: .0005"/.01mm/1/128 inch accuracy: +/- 0.001"
Extra battery included.

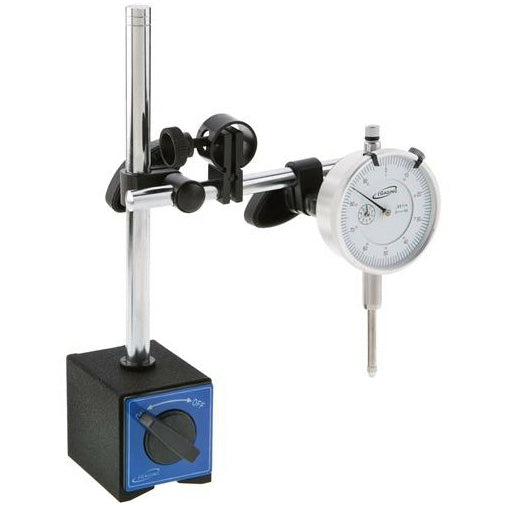

Dial Indicator Features:

Easy to read 2-1/4" white face with black markings
Crisp graduations
Durable satin chrome finish
Spindle rack pinions and gear trains are made of high quality steel components ensuring long life
Built to AGD specifications
Vertical lug back configuration
Graduations: 0.001" per line, 0.1" per revolution

Frequently Asked Questions

What does the magnetic base attach to?

The heavy-duty magnetic base attaches to any metal work surface and engages or releases with a built-in on/off switch. Browse more measuring & layout tools.

Can I choose between a digital and a dial indicator?

Yes. The base is offered with either a digital or a dial indicator, both covering a 0"–1" range. A sturdy carry case is included.

How accurate is the digital indicator?

The digital indicator has a guaranteed accuracy of 0.001" / 0.01mm, with a resolution of .0005" / .01mm / 1/128" across its 0–1" range.

What probes come with the digital indicator?

It includes 4 probes: a carbide ball, a large flat, a small flat and a point, so you can choose the right contact tip for each measurement.

What machines can I set up with this tool?

Use it to make precise adjustments to your table saw, bandsaw, jointer, drill press and router. It's especially handy for checking blade alignment and table saw runout. See related gauges & setup tools.

Does the digital indicator read in metric?

Yes. The digital indicator has two reading functions, inch and metric, and also displays fractions, with absolute and incremental reading modes.

What are the dial indicator's graduations?

The dial indicator reads 0.001" per line and 0.1" per revolution on an easy-to-read 2-1/4" white face, and is built to AGD specifications.

Does the extension arm adjust?

Yes. The metal extension arm features a pivot joint and a spring-loaded pivot point that attaches to the arm of the indicator, letting you position the probe precisely.

Is a battery included with the digital model?

Yes. The digital indicator comes with a protective case and an extra battery included.

Who makes this magnetic base and indicator?

It is made by iGaging. Pair it with other marking & layout guides for accurate machine setup.
