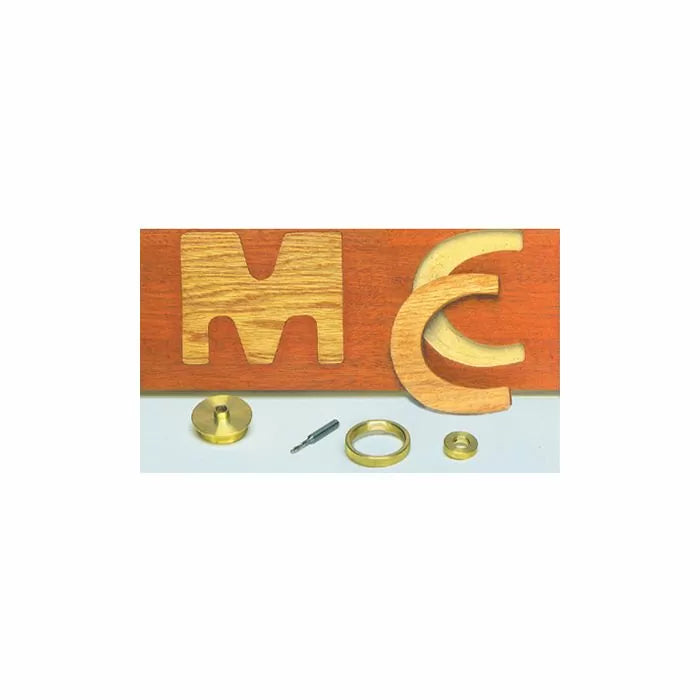

Infinity Tools Brass Inlay Kit w/ Spiral Bit & Centering Pin

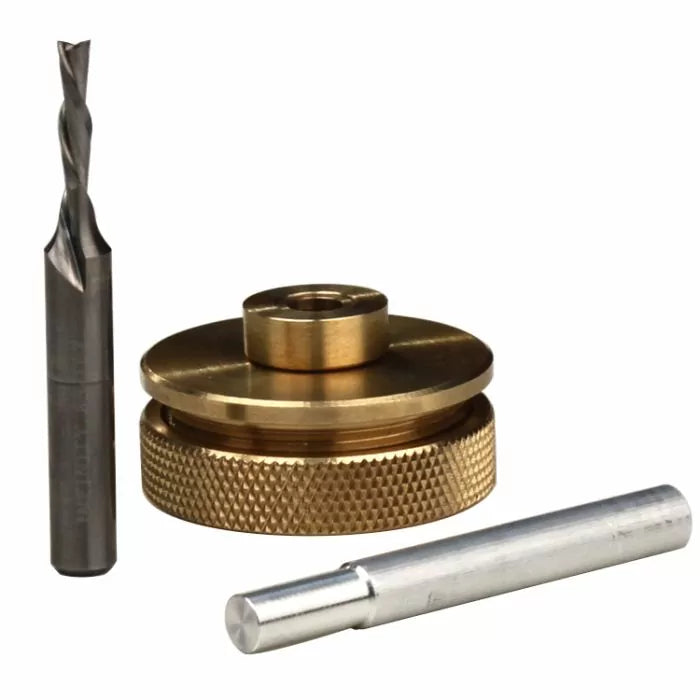

The kit includes a solid brass bushing system with removable sleeve, a 1/4" shank solid carbide down-cut spiral bit (item 85-102) with a 1/8" cutter diameter, and a centering pin for accurate setup. Explore our solid carbide spiral bits.

Cut the inlay stock with the sleeve installed on the template guide, then remove the sleeve and cut the recess in the workpiece using the template guide bushing. The sleeve's offset produces a perfect-fitting joint.

The included solid carbide spiral bit has a 1/4" shank and a 1/8" cutter diameter, so it fits any router that accepts a 1/4" collet.

The bushing fits any router base with a 1-3/8" opening designed for brass template guides or Porter-Cable-style template guides.

You can cut inlays in any shape using templates that are 0.200" thick (13/64") or thicker.

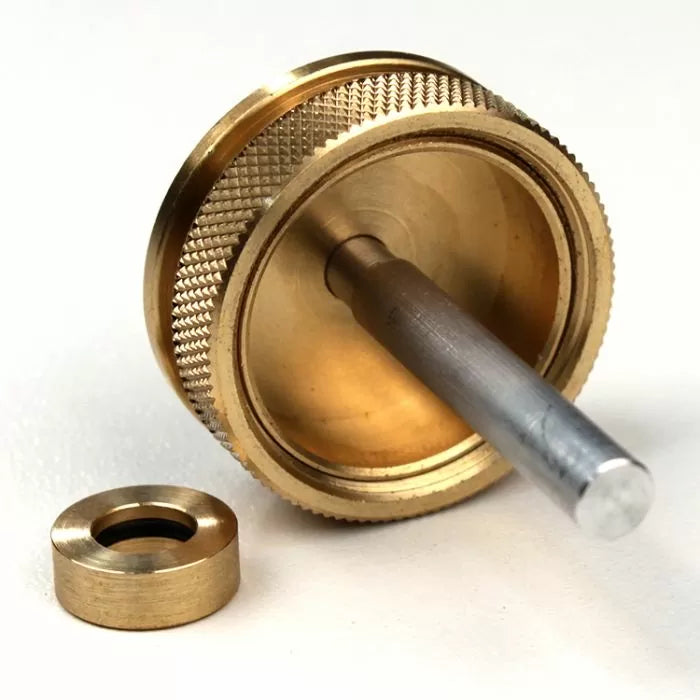

The centering pin aligns the router precisely with the bit during setup, ensuring the template guide is centered so your inlays and recesses match accurately.

A solid-carbide down-cut spiral bit shears fibers downward for clean, splinter-free edges on the top surface, which is ideal for crisp inlay work. See more solid carbide spiral bits.

Yes. The kit allows you to cut perfect-fitting inlays in any shape, limited only by the templates you make or buy. Pair it with our router templates.

It is made by Infinity Cutting Tools, using precision-machined brass components and a solid carbide spiral bit.

Yes. The kit uses the solid-carbide down-cut spiral bit item 85-102, and you can browse our full range of carbide router bits for replacements and additional sizes.
