Veritas Surface Clamp – Portable 3/4″ Bench & Surface Clamp

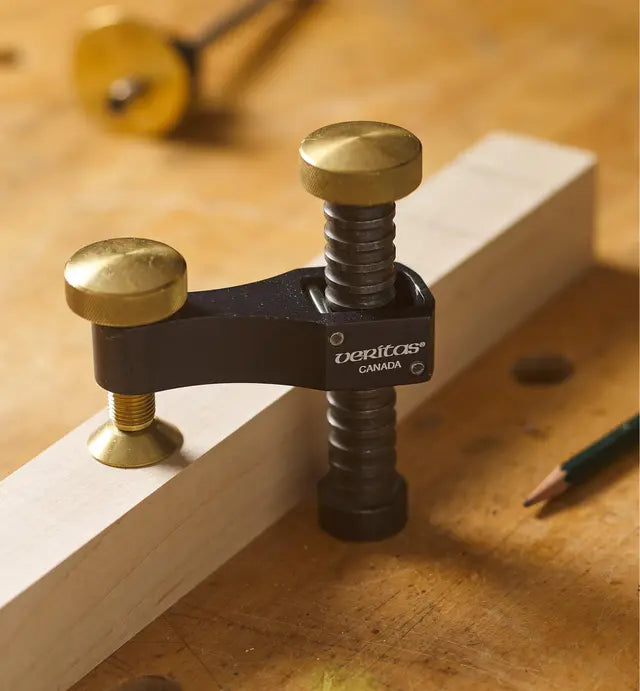

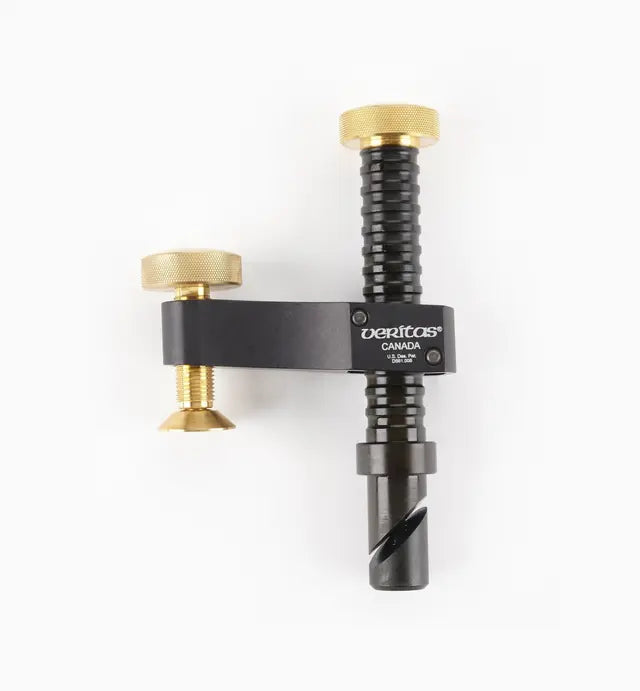

The Veritas Surface Clamp delivers powerful, flexible clamping anywhere you have a standard 3/4″ hole. Using an innovative wedging post, the clamp locks securely into place in material as thin as 5/8″, making it ideal for workbenches, jigs, fixtures, and drill press tables.
The adjustable clamp arm locks at 90° to apply firm, controlled pressure, while the 2-1/8″ throat depth accommodates a wide range of workpiece sizes. Clamping capacity reaches up to 3-3/4″ thick, or 3-1/8″ when using the post collar as a depth stop. Separate knobs control anchoring force and clamping pressure, allowing fast setup and precise adjustments without shifting your work.

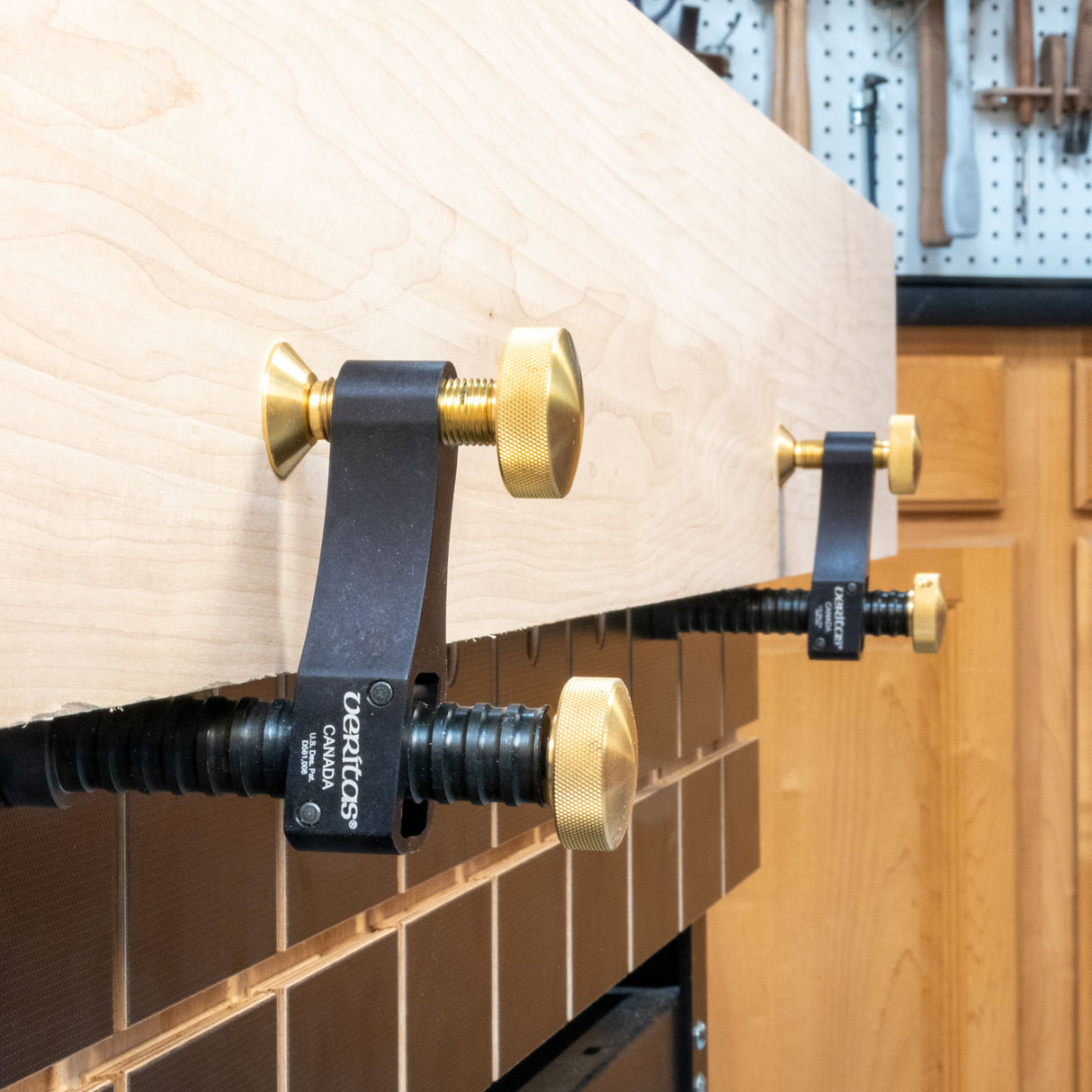

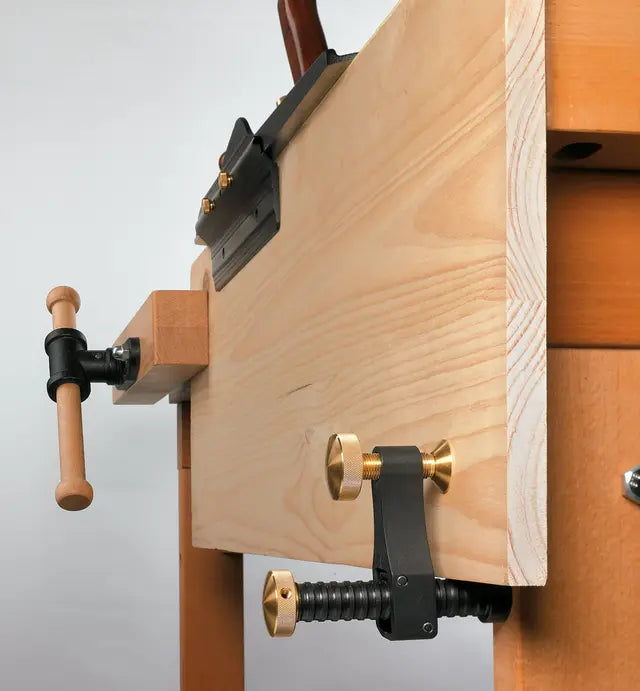

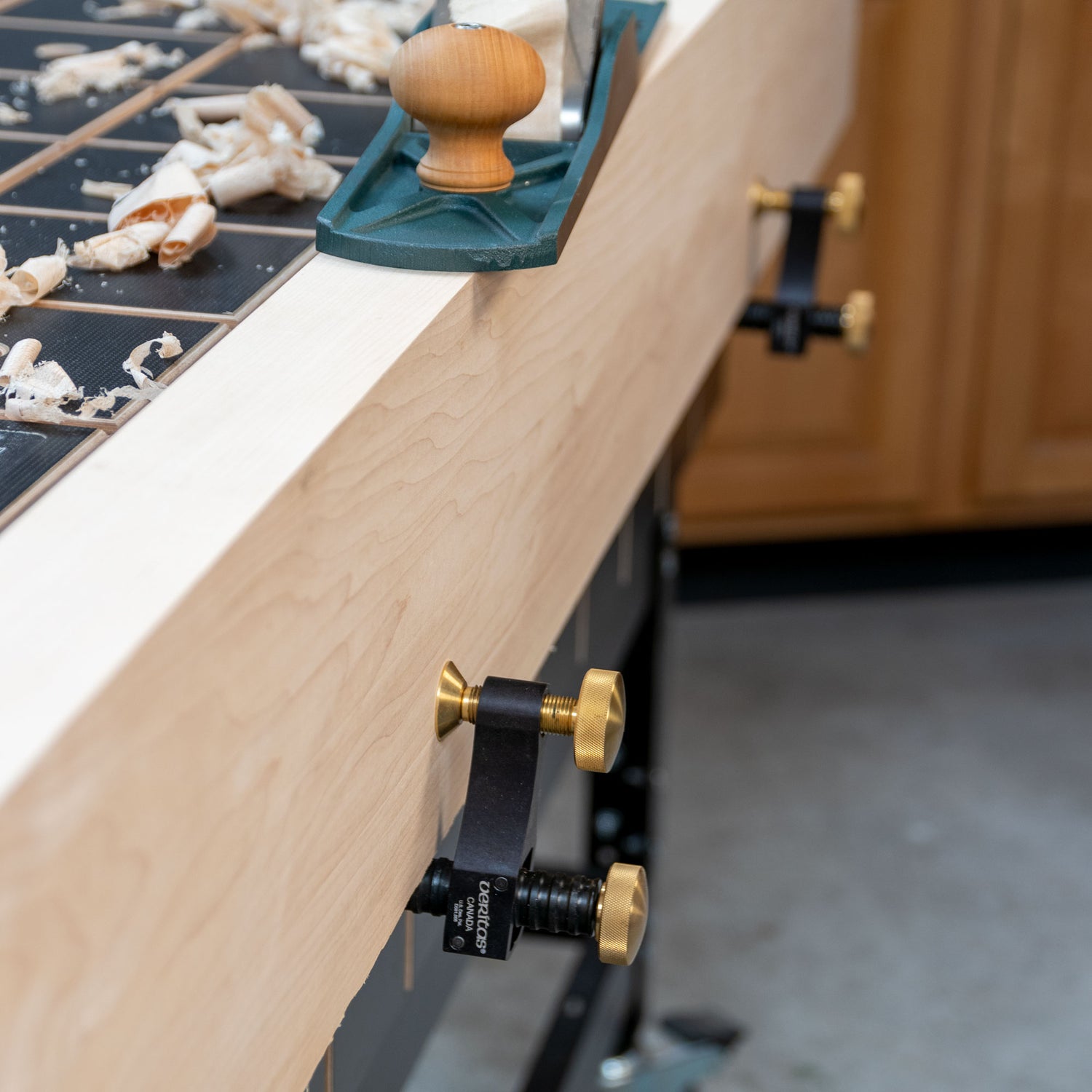

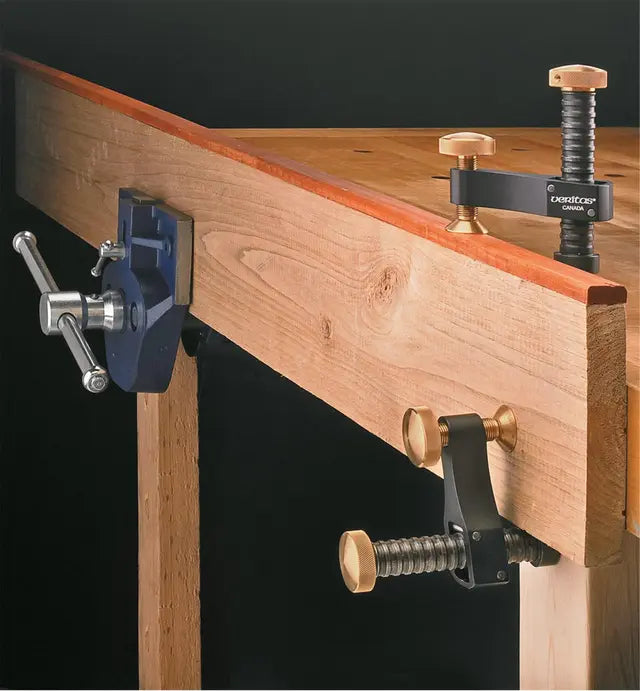

Machined from durable brass, steel, and anodized aluminum, the Veritas Surface Clamp functions as a hold-down, auxiliary support, or portable bench clamp wherever traditional clamps fall short. It’s an exceptionally versatile workholding solution for planing, routing, sanding, drilling, and assembly tasks.
Key Features:

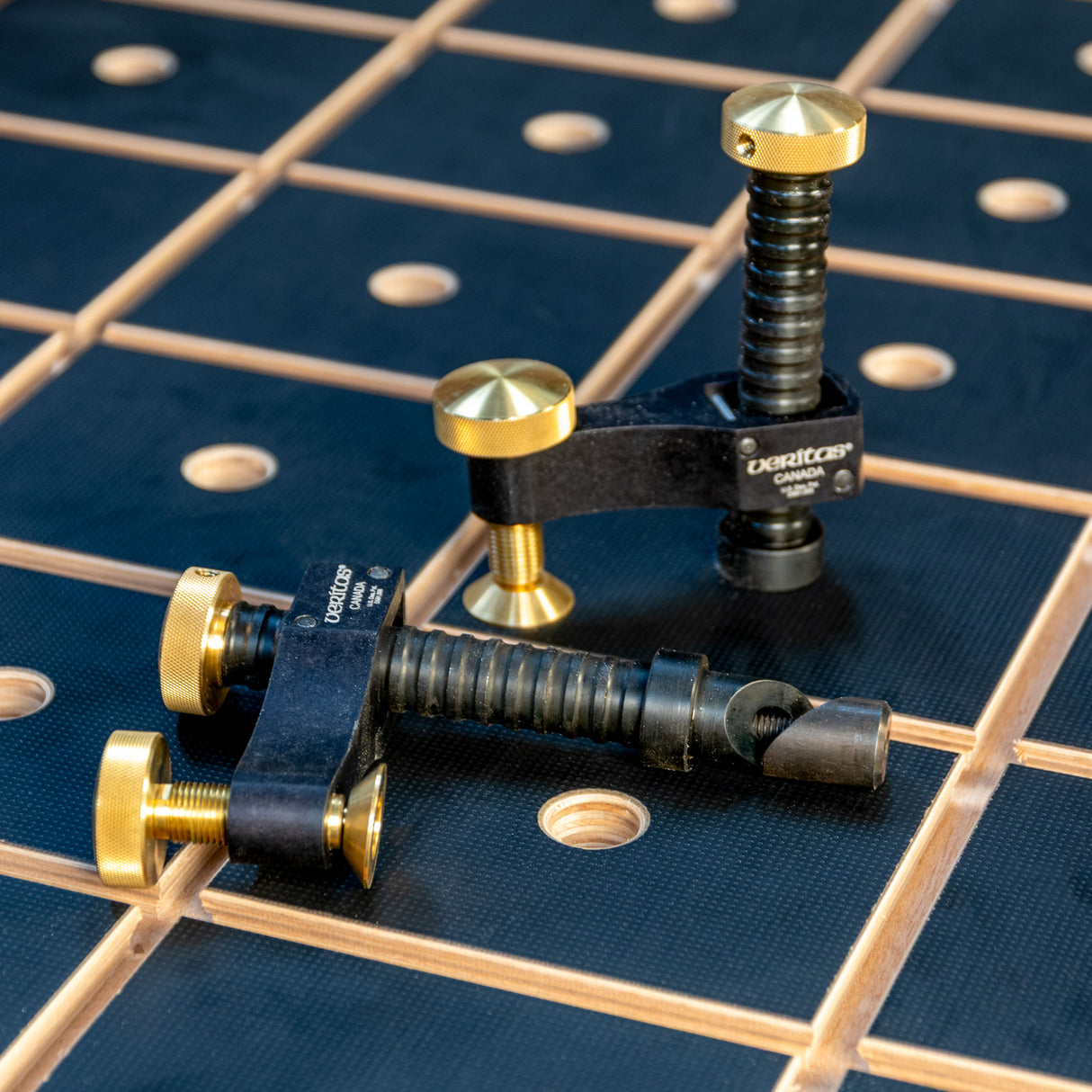

- Fits standard 3/4″ bench dog and jig holes
- Wedging post locks securely in thin or thick material
- Adjustable clamp arm with 2-1/8″ throat depth
- Clamps workpieces up to 3-3/4″ thick
- Independent controls for anchoring and clamping force

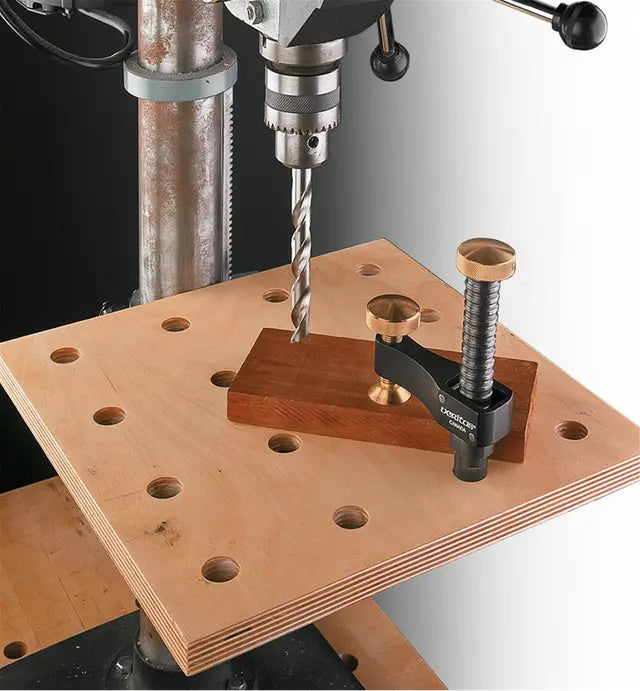

- Ideal for benches, fixtures, jigs, and drill press tables
