SKU: 100-158  |  MPN: 1213

Kit de embutir para puertas Milescraft

Precio normal $39.99

El kit de embutir para puertas de entrada y de paso, fácil de usar, es una excelente herramienta para instalar bisagras. Para madera de 4,5 cm y 4,5 cm de grosor.

Aumente la seguridad y privacidad de su hogar reemplazando puertas sin dañar la puerta ni la jamba con el DoorMortiseKit. Al fresar las mortajas correspondientes para bisagras, placas de cierre y placas de pestillo en la puerta y la jamba, no tendrá que hacer un agujero en la pared solo para instalar una puerta de madera de mejor calidad.

Las características incluyen:

  • El marco de plantilla de acero duradero con pestañas ajustables permite configuraciones para puertas de 1-3/4” y 1-3/8” de espesor

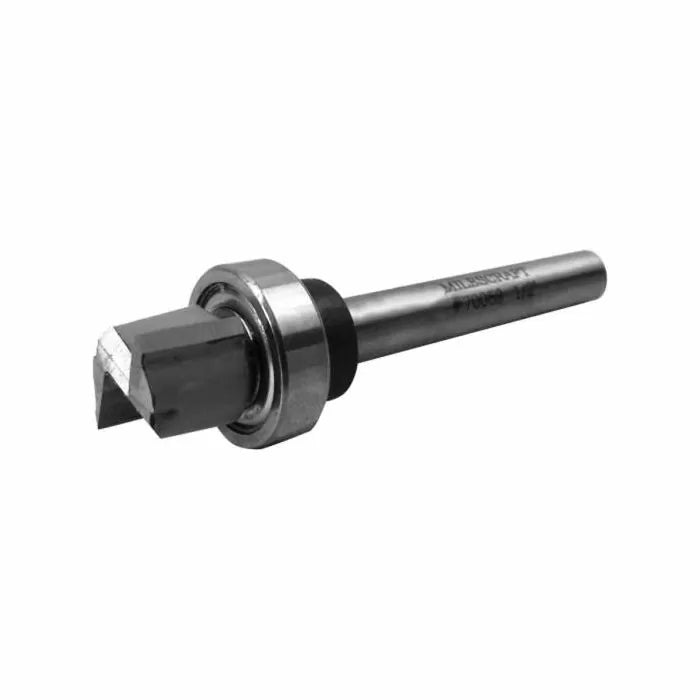

  • Broca enrutadora duradera con punta de carburo de tungsteno de 1/2” con cojinete de bolas que elimina la necesidad de un buje

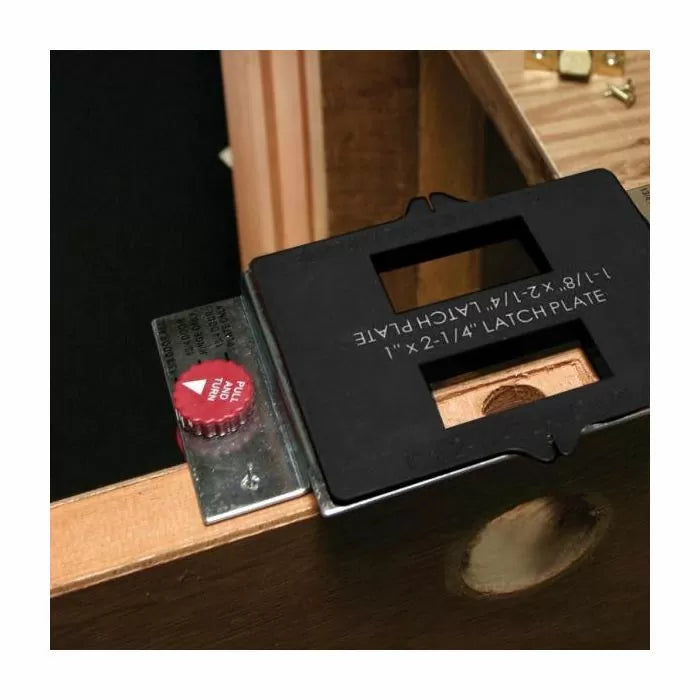

  • Contiene plantillas necesarias para fresar mortajas de bisagras, placas de cierre y placas de pestillo.
  • Tamaños de plantillas de bisagra: 2-1/2", 3", 3-1/2", 4" y 4-1/2"
  • Tamaños de plantilla de impacto: 1-1/8" x 2-3/4" y 1-1/2" x 2-1/4"
  • Tamaños de plantilla de placa de cierre: 1" x 2-1/4", 1-1/8" x 2 1/4" y 1-1/8" x 2-3/4"

NOTA: Es necesario cincelar un poco las plantillas con esquinas cuadradas.

Frequently Asked Questions

What door thicknesses does the Milescraft Door Mortise Kit fit?

The steel template frame has adjustable tabs that set up for both 1-3/8" and 1-3/4" thick doors, covering common entry and passage doors.

Does the kit include a router bit?

Yes. It includes a 1/2" tungsten carbide-tipped router bit with a ball bearing, which eliminates the need for a separate guide bushing.

What hinge sizes can I rout with it?

The hinge templates cover 2-1/2", 3", 3-1/2", 4", and 4-1/2" sizes, which fit most residential door hinges.

What can the kit rout besides hinges?

It includes templates for hinge, strike-plate, and latch-plate mortises. Strike sizes are 1-1/8" x 2-3/4" and 1-1/2" x 2-1/4"; latch sizes are 1" x 2-1/4", 1-1/8" x 2-1/4", and 1-1/8" x 2-3/4".

Do I need a guide bushing to use this kit?

No. The included 1/2" carbide-tipped bit rides on a ball bearing that follows the template directly, so no separate bushing is required.

Is any hand work required?

Some chiseling is required on templates with square corners, since a round router bit leaves rounded corners that must be squared by hand.

Why use a mortise kit instead of hanging a door by hand?

It lets you cut matching mortises in the door and jamb without damaging the door or wall, so you can upgrade hardware or replace a door cleanly. Browse more router jigs & guides.

What is the template frame made of?

The template frame is made of durable steel with adjustable tabs, so it holds its shape and registers accurately for repeated use.

Can I use this for both a door and its jamb?

Yes. The kit is designed to rout matching mortises into both the door and the jamb so hinges, strike plates, and latch plates line up correctly.

What other router templates pair well with this kit?

Explore our router templates and circle-cutting jigs to take on more template-guided routing projects.
