Kit de abrazadera de palanca con riel en T de Infinity Tools

Name: Kit de abrazadera de palanca con riel en T de Infinity Tools
Brand: Infinity Cutting Tools
SKU: 100-660
Price: 39.90 USD
Availability: InStock

$39.90

Description Reviews Q&A

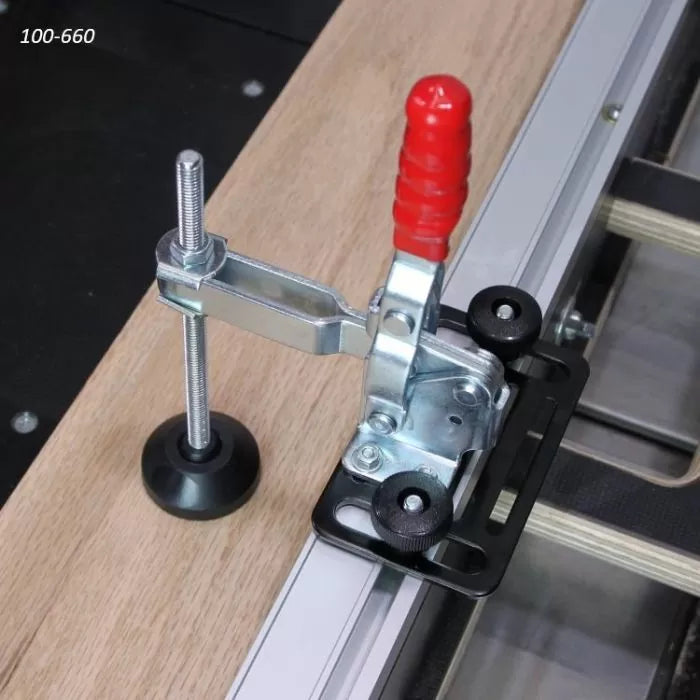

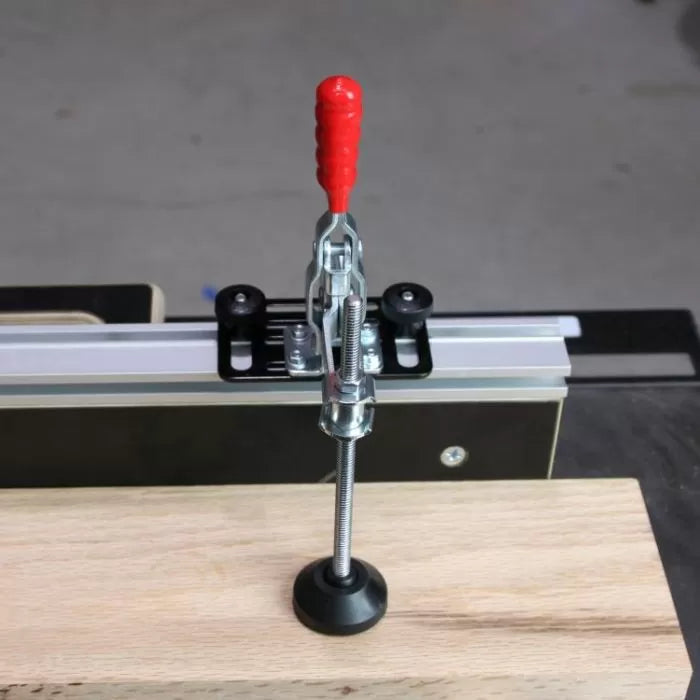

El kit de abrazaderas de palanca para riel en T de Infinity Tools (100-660) permite montar la abrazadera de palanca incluida (o cualquier abrazadera de palanca estándar) en prácticamente cualquier superficie. Inicialmente, este kit de abrazaderas solo formaba parte de nuestra plataforma de corte transversal profesional TCS-200, pero le hemos encontrado usos en todo el taller. Por ello, decidimos ofrecerlo por separado para quienes no tengan una TCS-200 pero puedan encontrarle usos creativos.

Características:

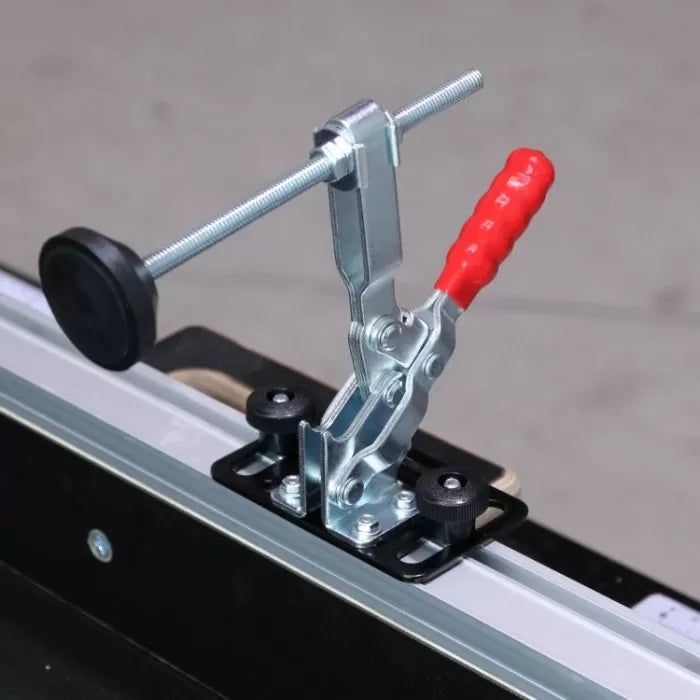

Abrazadera de palanca vertical de alta resistencia : fuerza de sujeción de 500 lb
Pie de abrazadera giratorio de gran tamaño : pie montado giratorio de más de una pulgada de diámetro con un husillo de 6 pulgadas que se adapta a una amplia variedad de formas y tamaños de piezas de trabajo
Placa de montaje de metal: múltiples ranuras para una amplia variedad de posicionamientos

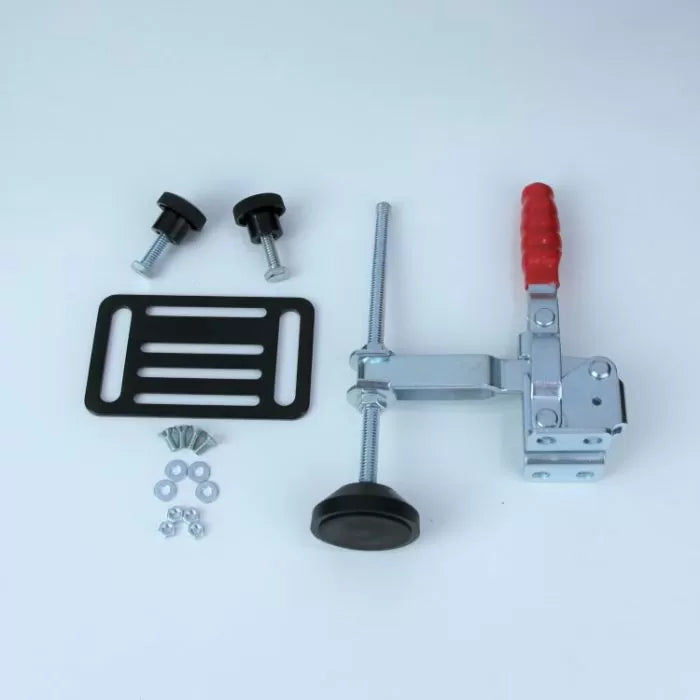

Herrajes de montaje incluidos: dos pernos hexagonales de 1/4"-20 y perillas roscadas hembra para montaje en riel en T mini o combinado¹, y tornillos/tuercas para montar la abrazadera de palanca en la placa base

¹Nota: Los pernos de 1/4"-20 incluidos son compatibles con rieles en T mini y combinados que admiten pernos hexagonales estándar de 1/4"-20. La placa base del kit admite pernos en T de 5/16" y 1/4" para el montaje en rieles en T estándar, pero no están incluidos.

Frequently Asked Questions

What is the clamping force of this toggle clamp kit?

The kit uses a heavy-duty vertical toggle clamp rated at 500 lb. of clamping force, making it strong enough to hold parts securely on sleds, fences, and fixtures. Browse more toggle clamps.

What type of t-track does this clamp kit fit?

The included 1/4"-20 hex bolts work in mini and combination t-tracks that accept standard 1/4"-20 hex bolts. The base plate also accepts 5/16" and 1/4" t-bolts for standard t-tracks. See our t-track and hardware.

What mounting hardware is included?

You get two 1/4"-20 hex bolts and female threaded knobs for mounting in mini or combination t-track, plus the screws and nuts needed to fasten the toggle clamp to its base-plate.

Are 5/16" t-bolts included for standard t-track?

No. The base plate will accept 5/16" and 1/4" t-bolts for mounting to standard t-tracks, but those t-bolts are not included with the kit.

What is the model number of this kit?

This is Infinity Tools part number 100-660, the T-Track Toggle Clamp Kit.

What size workpieces can the clamp foot handle?

The clamp uses an oversize swiveling foot over an inch in diameter on a 6-inch spindle, so it accommodates a vast array of workpiece shapes, sizes, and heights.

Can I use my own toggle clamp with this base plate?

Yes. The kit is designed to mount the included toggle clamp or any standard toggle clamp to virtually any surface, thanks to the slotted metal mounting plate.

Was this kit part of another Infinity product?

Yes. It was originally developed as part of the TCS-200 Professional Crosscut Sled, and is now offered separately for shop-built jigs and fixtures. Pair it with other clamping tools.

Why does the mounting plate have multiple slots?

The metal mounting plate has multiple slots so you can position the clamp in a wide variety of locations and orientations, giving you flexibility when building custom hold-downs.

What can I use this toggle clamp kit for?

It adds quick, repeatable workholding to crosscut sleds, table saw and router table fences, and any shop-built jig. Explore complementary t-track and hardware to build your own fixtures.
