SKU: HDFPM-101

Infinity Tools - Plantillas para marcos y paneles de alta resistencia con puertas

Q: What is included in the Frame & Panel Master kit?

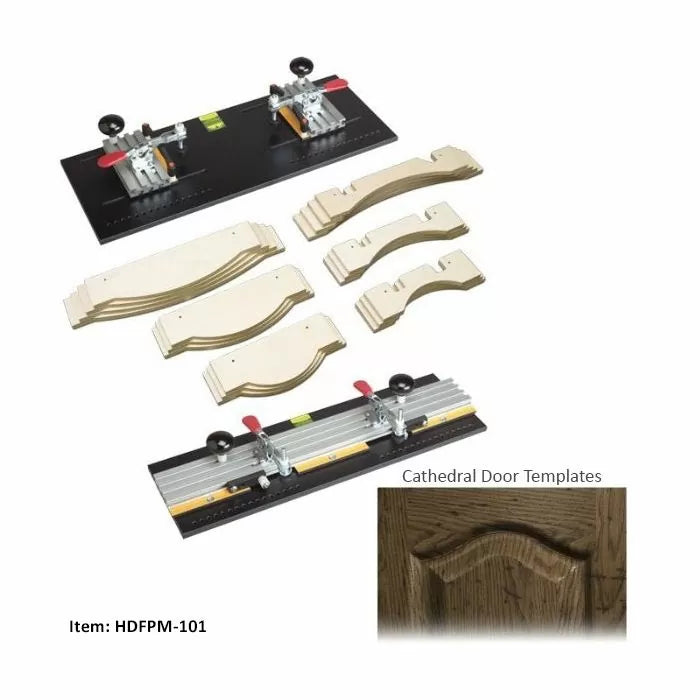

The kit includes the HD Frame Master (HDFM-001) , the HD Panel Master (HDPM-001) , and your choice of HD Cathedral or HD Arched door templates. Explore more door-making tools .

Q: Are router bits included?

No. Bits are not included. You machine the panel and rail profiles using the appropriate router bits or shaper cutters of your choice.

Q: Can I use this with a shaper as well as a router?

Yes. The heavy-duty design works with both router bits and shaper cutters , so it suits router tables and shapers alike.

Q: What door sizes can I make?

It is designed for doors from 9-3/4" to 23-3/4" finished width , or frame and panel parts 6" to 20" wide , based on a 3/8" deep cope joint and a 2-1/4" wide stile.

Q: What door profiles can I choose?

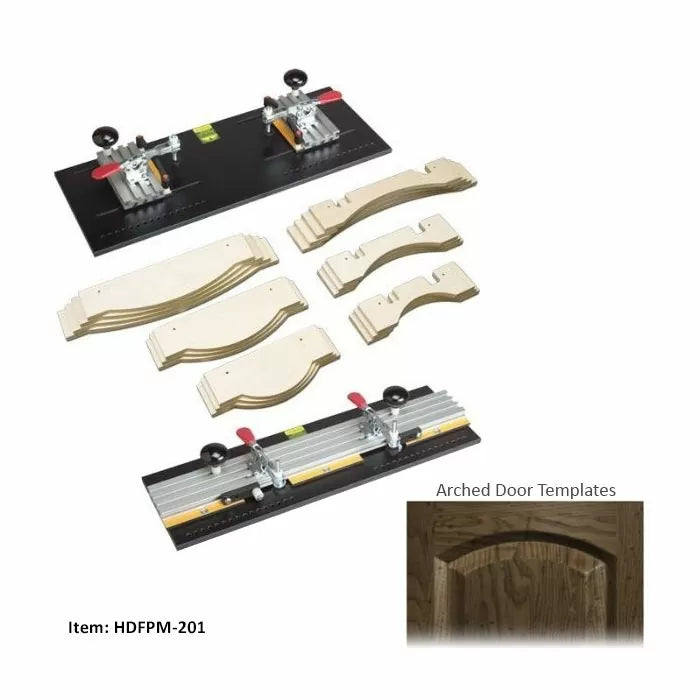

You choose between Cathedral (PDT-101HD) and Arched (PDT-201HD) templates. Browse related frame & panel templates .

Q: What are the templates made of?

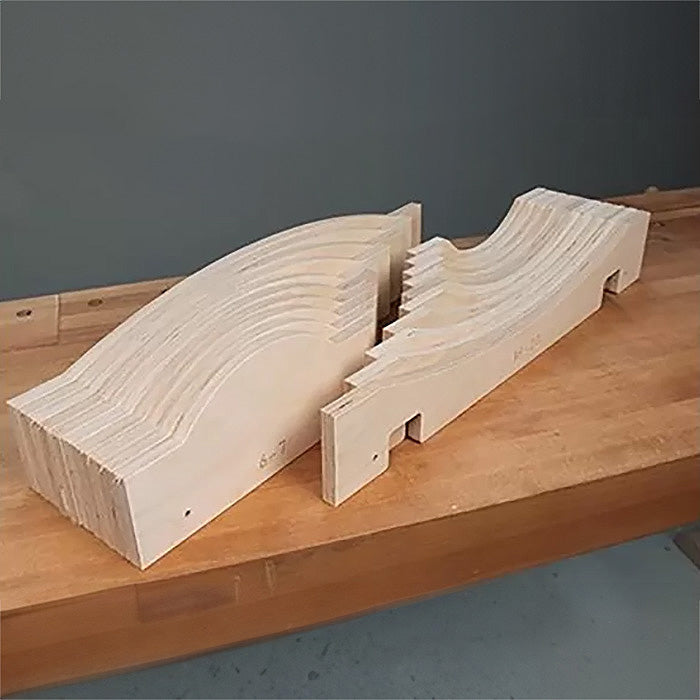

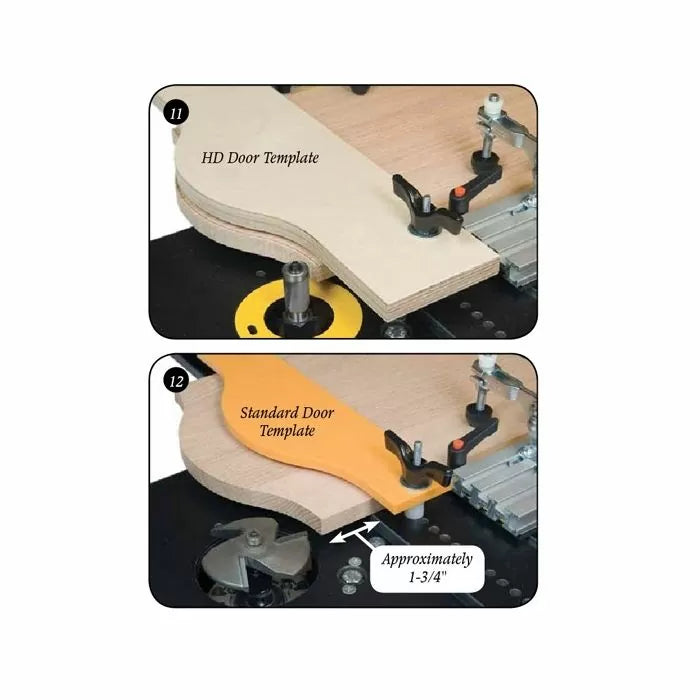

The templates are made from 18mm (3/4") thick Baltic Birch plywood , which provides maximum bearing or rub-collar support rather than thinner plastic.

Q: How does this beat taping templates to the workpiece?

The Frame and Panel Masters clamp the workpiece and template together , which is faster and more secure than using double-face tape or nails, and provides a safe, easy-to-control platform.

Q: Will arches on different door widths match?

Yes. The radius of each template is the same , so arches on different-width doors align and look correct when placed side by side.

Q: What else can the Master jigs do besides profiling?

You can also use them to flush-trim parts to shape . Pair them with other router jigs & guides for more shop tasks.

5 % de descuento

$599.90 ~~Precio normal$629.70~~

Estilo

Catedral Arqueado

Description Reviews Q&A Documents Blog

¡Todo lo que necesitas para hacer puertas personalizadas en tu enrutador o moldeadora!

Nuestros kits de marcos y paneles para trabajos pesados brindan una plataforma de trabajo segura, estable y fácil de controlar que acelera la construcción de marcos y paneles. Los kits de marcos y paneles sujetan su pieza de trabajo y nuestras plantillas para hacer puertas juntas para mecanizar en su mesa de fresado o moldeadora. Es más rápido que usar cinta adhesiva de doble cara o clavos para sujetar la plantilla en la pieza de trabajo. Incluye tanto el kit de marcos HD como el kit de paneles HD, lo que permite mecanizar simultáneamente el marco y el panel. Úselo para recortar piezas al ras para darles forma o para mecanizar los perfiles de paneles y rieles con las brocas de fresado adecuadas. Brocas no incluidas.

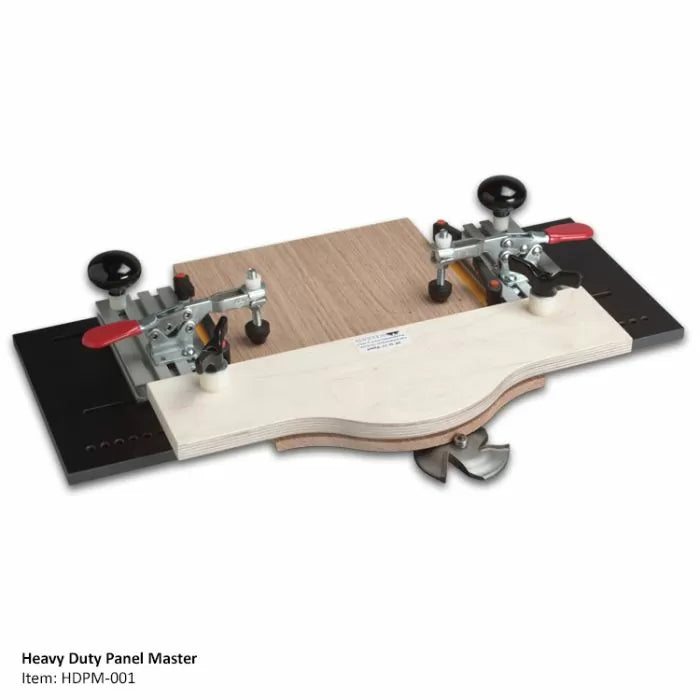

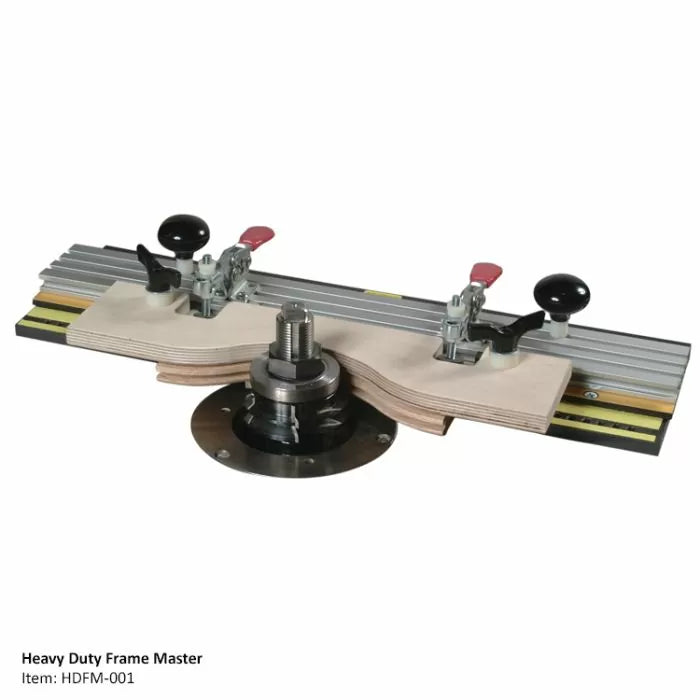

Estos kits para hacer puertas incluyen nuestro modelo maestro de marcos para trabajos pesados (HDFM-001) y nuestro modelo maestro de paneles para trabajos pesados (HDPM-001), así como también la opción de elegir entre nuestras plantillas para puertas estilo catedral para trabajos pesados (PDT-101HD) o nuestras plantillas para puertas arqueadas para trabajos pesados (PDT-201HD). Diseñados para puertas de 9-3/4" a 23-3/4" (ancho terminado) o piezas de marco y panel de 6 " a 20" de ancho en base a una junta de remate de 3/8" de profundidad y un montante de 2-1/4" de ancho. El radio de cada plantilla es el mismo, por lo que el arco en puertas de diferente ancho se alineará y lucirá correcto si se coloca uno al lado del otro.

Las características incluyen:

El diseño resistente funciona con brocas de enrutador y cortadores de forma.
Plantillas hechas de madera contrachapada de abedul báltico de 18 mm (3/4") de espesor
Diseñado para puertas de 9-3/4" a 23-3/4" (ancho terminado) o piezas de marcos y paneles de 6 " a 20" de ancho.
Frame & Panel Master proporciona una plataforma de trabajo segura y fácil de controlar.

Instructions_HD_Panel_Master

Instructions_HD_Frame_Master

Instructions_HD_Door_Making_Templates

Frequently Asked Questions

What is included in the Frame & Panel Master kit?

The kit includes the HD Frame Master (HDFM-001), the HD Panel Master (HDPM-001), and your choice of HD Cathedral or HD Arched door templates. Explore more door-making tools.

Are router bits included?

No. Bits are not included. You machine the panel and rail profiles using the appropriate router bits or shaper cutters of your choice.

Can I use this with a shaper as well as a router?

Yes. The heavy-duty design works with both router bits and shaper cutters, so it suits router tables and shapers alike.

What door sizes can I make?

It is designed for doors from 9-3/4" to 23-3/4" finished width, or frame and panel parts 6" to 20" wide, based on a 3/8" deep cope joint and a 2-1/4" wide stile.

What door profiles can I choose?

You choose between Cathedral (PDT-101HD) and Arched (PDT-201HD) templates. Browse related frame & panel templates.

What are the templates made of?

The templates are made from 18mm (3/4") thick Baltic Birch plywood, which provides maximum bearing or rub-collar support rather than thinner plastic.

How does this beat taping templates to the workpiece?

The Frame and Panel Masters clamp the workpiece and template together, which is faster and more secure than using double-face tape or nails, and provides a safe, easy-to-control platform.

Will arches on different door widths match?

Yes. The radius of each template is the same, so arches on different-width doors align and look correct when placed side by side.

Can I machine the frame and panel at the same time?

Yes. Because the kit includes both the HD Frame Master and HD Panel Master, it allows simultaneous machining of both frame and panel parts.

What else can the Master jigs do besides profiling?

You can also use them to flush-trim parts to shape. Pair them with other router jigs & guides for more shop tasks.
