SKU: 06-134

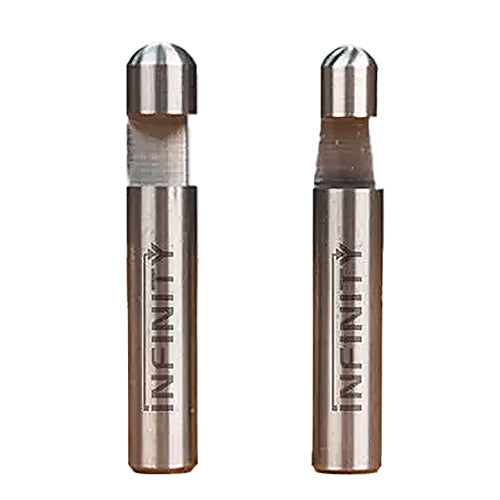

Brocas para enrutador de bordes laminados con vástago de 1/4" de Infinity Tools

Q: What are laminate trim bits used for?

They are used to break a hard square edge or precision flush-trim laminate surfaces , such as countertops, shelves, and other multi-layered projects, for a smooth, finished edge.

Q: Do these bits need a bearing?

No. They are engineered to work without a bearing , using an integrated pilot point that maintains a flush cut against your reference material.

Q: What is the 7° bevel for?

The 7° angle on the bevel bit makes a gentle chamfer on laminate countertop edges, easing the sharp corner for a more comfortable, finished look.

Q: What shank size do these bits have?

They have a 1/4" shank with a 1/4" cutter diameter and 1-1/2" overall length, so they work in both full-size routers and compact trim routers.

Q: What profiles are available?

You can choose a 7° bevel or a square profile. The bevel eases countertop edges, while the square gives a straight flush trim.

Q: What are these bits made of?

They are made from a solid piece of C4 micrograin carbide , which holds its cutting edge up to ten times longer than steel for long service life.

Q: How do they handle chips while cutting?

The offset back-end design promotes excellent chip ejection, keeping the cut clean and reducing buildup as you trim.

$18.90

Perfil

Derecho Bisel de 7°

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Description Reviews Q&A Documents

Brocas de carburo sólido para fresado de laminados

Las brocas de carburo sólido para corte laminado de Infinity son justo lo que necesita cuando desea romper un borde cuadrado duro o cortar superficies laminadas con precisión. Excelentes para usar con una fresadora de tamaño completo o una fresadora de corte más pequeña, el ángulo de 7° de la broca de bisel hace un bisel suave en los bordes de las encimeras laminadas de la cocina. Fabricadas a partir de una pieza sólida de carburo de micrograno C4, estas brocas piloto de corte están diseñadas para funcionar sin cojinetes y, al mismo tiempo, mantener un corte al ras con su material de referencia. Ambas brocas de carburo sólido para corte brindan la alta calidad que espera de Infinity Cutting Tools para su próxima instalación en el lugar de trabajo.

Las características incluyen:

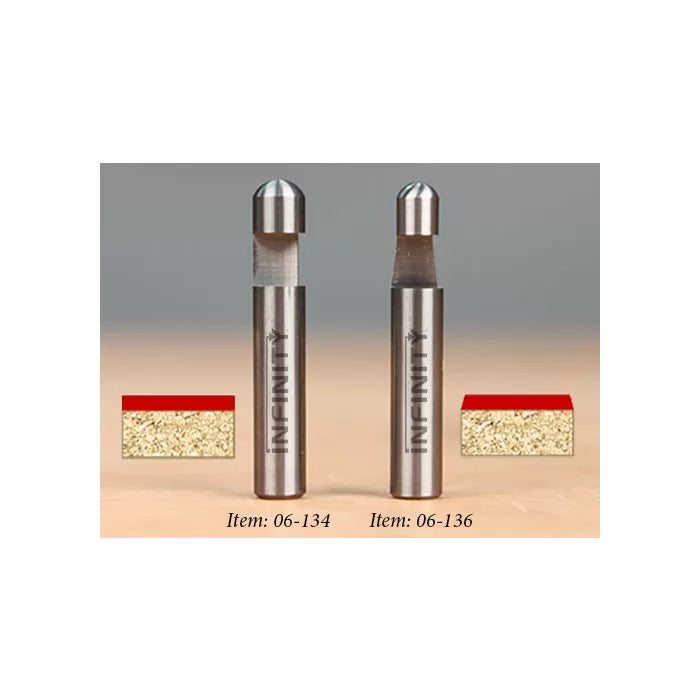

Su elección de bisel de 7° o cuadrado
Punto piloto integrado para corte al ras sin cojinete
Fabricado con carburo de micrograno C4 de la más alta calidad: mantiene su filo hasta diez veces más tiempo que el acero
El diseño del extremo posterior desplazado permite una excelente expulsión de virutas

Usos en tu tienda

Encimeras, estantes y cualquier otro proyecto de varias capas laminado con borde al ras para lograr un borde suave sin necesidad de apoyo
Combine esta broca con nuestra broca de carburo sólido para recortar al ras para cubrir todas sus necesidades de recorte de bordes de material laminado.

Router Bit Suggested RPM & Safety Guidelines

The Infinity Cutting Tools Difference

Frequently Asked Questions

What are laminate trim bits used for?

They are used to break a hard square edge or precision flush-trim laminate surfaces, such as countertops, shelves, and other multi-layered projects, for a smooth, finished edge.

Do these bits need a bearing?

No. They are engineered to work without a bearing, using an integrated pilot point that maintains a flush cut against your reference material.

What is the 7° bevel for?

The 7° angle on the bevel bit makes a gentle chamfer on laminate countertop edges, easing the sharp corner for a more comfortable, finished look.

What shank size do these bits have?

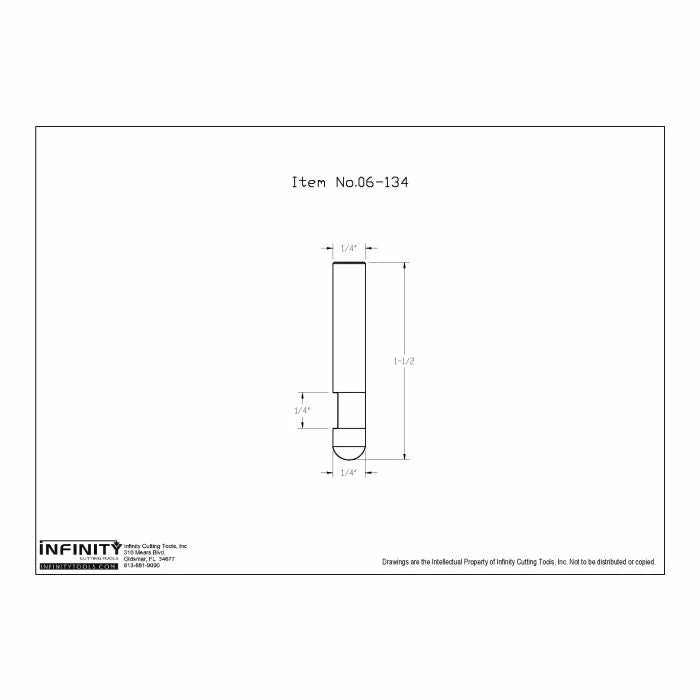

They have a 1/4" shank with a 1/4" cutter diameter and 1-1/2" overall length, so they work in both full-size routers and compact trim routers.

Can I use these in a small trim router?

Yes. They are excellent for use with either a full-size router or a smaller trim router, making them handy for job-site laminate installations.

What profiles are available?

You can choose a 7° bevel or a square profile. The bevel eases countertop edges, while the square gives a straight flush trim.

What are these bits made of?

They are made from a solid piece of C4 micrograin carbide, which holds its cutting edge up to ten times longer than steel for long service life.

How do they handle chips while cutting?

The offset back-end design promotes excellent chip ejection, keeping the cut clean and reducing buildup as you trim.

Should I buy both the bevel and square versions?

Pairing the 7° bevel with the square bit covers all your laminate edge-trimming needs — flush trimming and chamfering. Browse more flush-trim router bits.

What other bits pair well with laminate trim bits?

Pair them with edge-forming router bits for decorative profiles and our router templates for guided trimming.
