SKU: 06-624

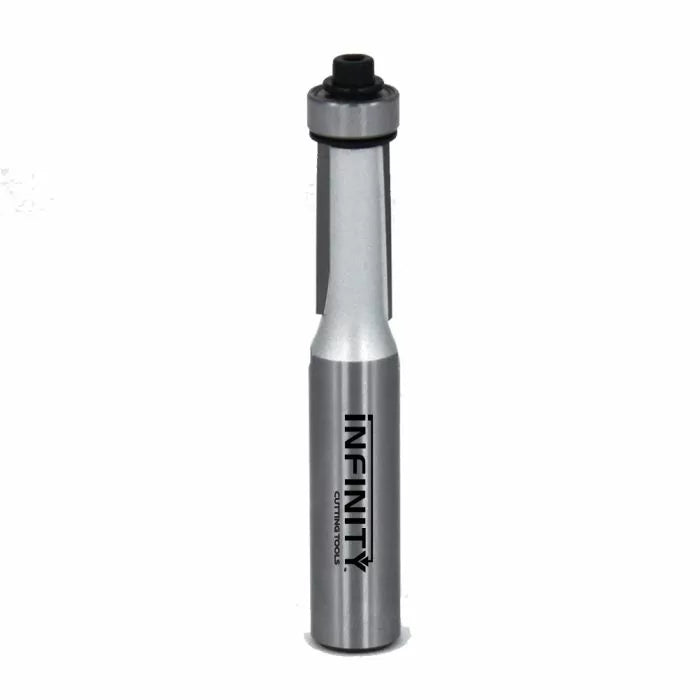

Broca para rebajadora de bordes al ras de audio para automóvil con vástago de 1/2" de Infinity Tools

Precio normal $79.90

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Brocas para rebajar molduras al ras para audio de automóviles (06-624 y 06-625)

Estas brocas para fresado de corte al ras especializadas están diseñadas para brindar al usuario un desplazamiento de 1/32" (de gran tamaño o de tamaño inferior), lo que le permite seguir una plantilla y crear piezas que sean 1/32" más grandes o 1/32" más pequeñas que las originales. Ideales para fabricar cajas de altavoces donde las cubiertas de vinilo y otros componentes necesitan espacio adicional para encajar, estas brocas están fabricadas con precisión a partir de acero de la más alta calidad y bordes de corte de carburo de micrograno y cuentan con bordes de corte cortados de manera óptima para dejar una superficie con un acabado perfecto. Esta construcción de alta calidad significa que podrá hacer pequeños rebajes y escalones en una amplia gama de materiales durante períodos de tiempo más prolongados entre afilados de lo que lo haría con las brocas para fresado convencionales.

Las características incluyen:

  • Puntas de carburo de micrograno C4 para una larga vida útil y un afilado repetido
  • El revestimiento de PTFE plateado reduce la acumulación de resina para una limpieza rápida y sencilla
  • Geometría de ángulo de corte agresivo para cortes limpios sin deshilachados ni bordes rasgados

The Infinity Cutting Tools Difference

Black geometric logo with stylized letters in a square shape on a white background

Frequently Asked Questions

What is special about a car audio flush trim bit?

It gives a 1/32" offset — oversized or undersized — so you can follow a template and produce pieces that are either 1/32" larger or 1/32" smaller than the original. This is ideal for speaker boxes. Explore more flush-trim router bits.

Why would I want an oversized or undersized offset?

Speaker boxes often need extra space so that vinyl coverings and other components fit together. The 1/32" offset lets you make a part slightly larger or smaller than the template to create that clearance.

What shank size is this bit?

It has a 1/2" shank and requires a router that accepts a 1/2" collet. Browse all our carbide router bits.

What carbide grade do these bits use?

They use C4 micro-grain carbide tips, which provide long life and can be sharpened repeatedly.

What does the silver PTFE coating do?

The silver PTFE coating reduces resin build-up, so the bit stays cleaner and is faster and easier to clean between jobs.

Will these bits leave a clean edge?

Yes. Their aggressive shear-angled geometry produces clean cuts without fraying or torn edges, leaving a perfectly finished surface.

What are the cutter dimensions?

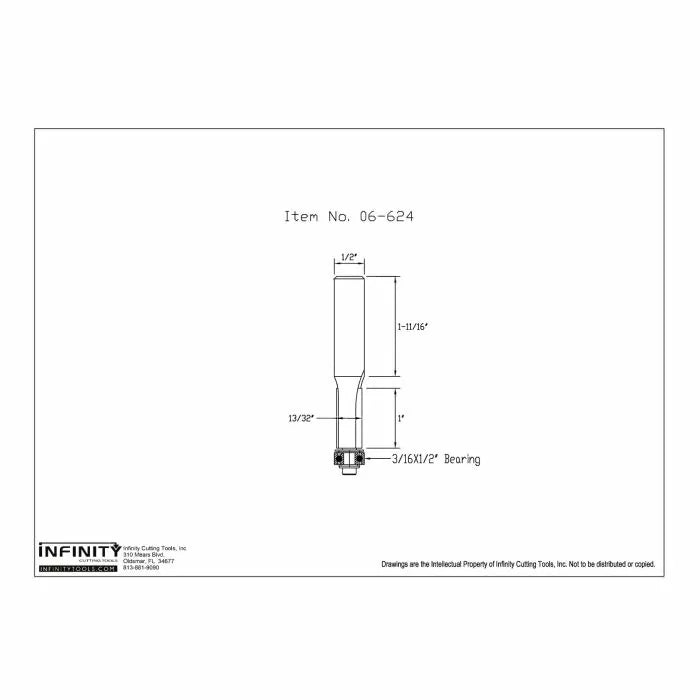

The bits have cutter diameters of 13/32" and 17/32", cutter heights of 1" and 1-1/32", a 1/2" bearing diameter, and overall lengths of 3-1/32" and 3-1/8".

What materials can these bits cut?

The high-quality construction lets you make small rabbets and steps in a wide range of materials, and for longer periods between sharpenings than conventional router bits.

Do I need a template to use these bits?

These are template-following bits, so you guide them against a pattern. Pair them with router templates to produce consistent speaker-box parts.

Can these bits be sharpened?

Yes. The C4 micro-grain carbide tips are made for long life and repeated sharpening, so the bits stay productive over time.
