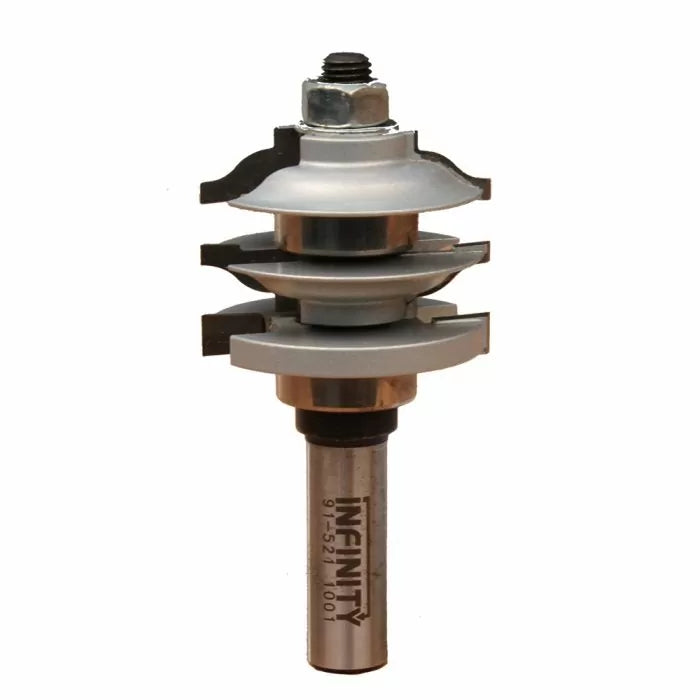

Broca para ranurar rieles y montantes de 1/2" de Infinity Tools, 1 pieza

The full profile is on one bit. You make your stile cuts at one height, then raise or lower the bit to position the matching rail profile, all without moving the router table fence. Explore related joinery router bits.

It has a 1/2" shank, so you need a router with a 1/2" collet. The larger shank supports the 1-3/4" cutter diameter for stable cuts.

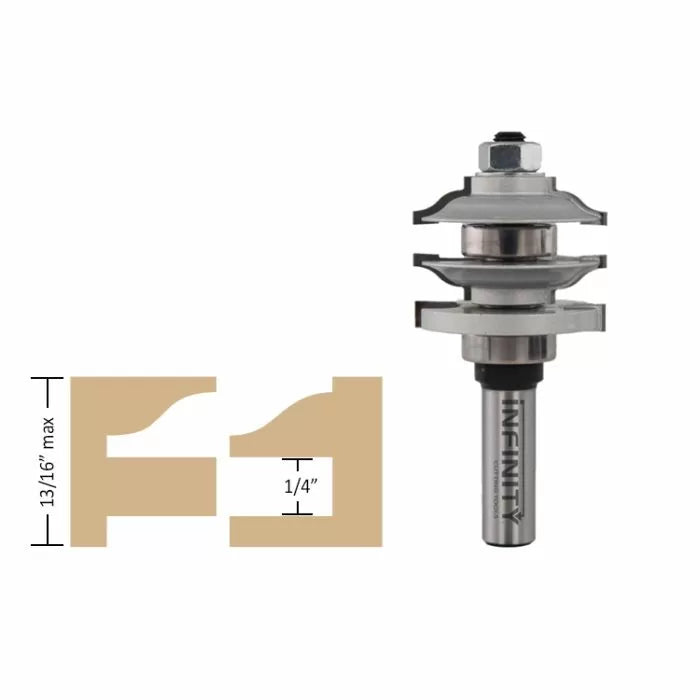

It cuts an Ogee profile, a classic curved shape used widely on cabinet door frames. The matched joint locks rail and stile together cleanly.

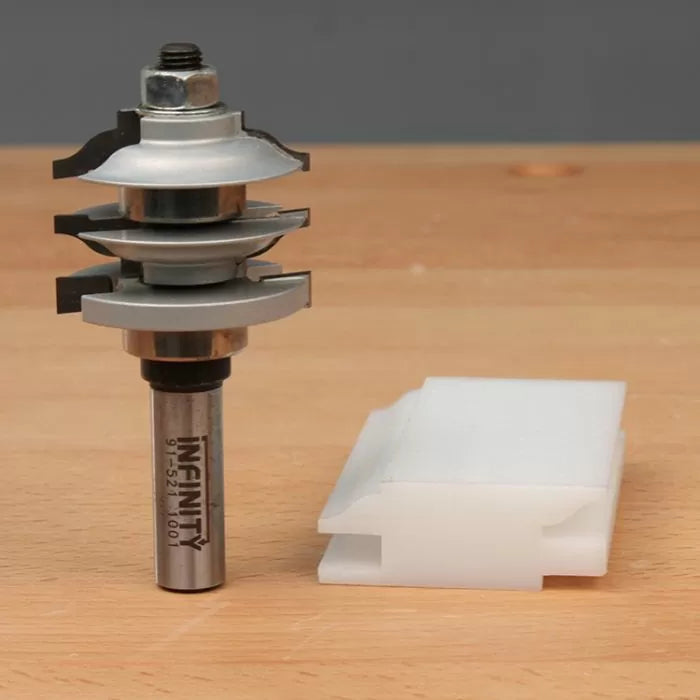

Yes, a free setup block is included. It helps you quickly and repeatably set the correct bit height when switching between stile and rail cuts.

No. You make all your stile and rail cuts without moving the fence on your router table — you only adjust the bit height. This keeps your parts perfectly aligned.

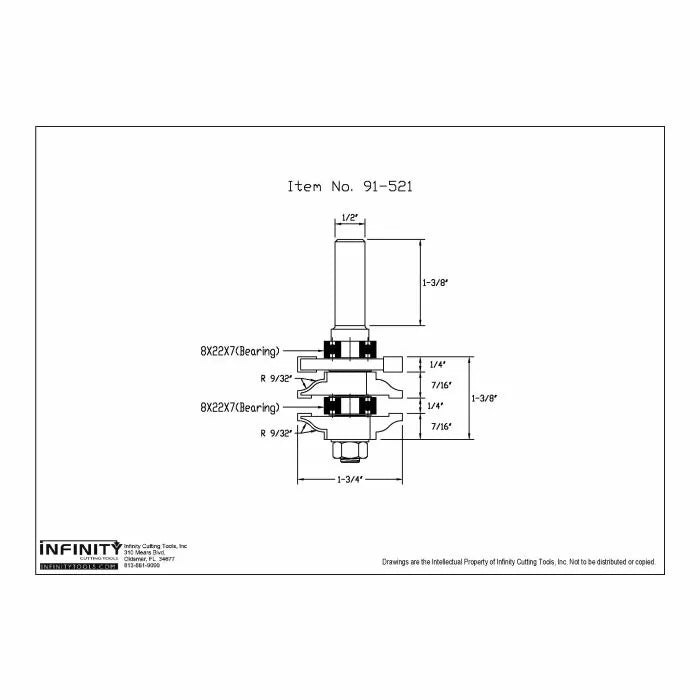

The bit has a 1-3/4" cutter diameter and a 1-3/8" cutter height, with a 1/2" shank. These dimensions suit standard cabinet door frame stock.

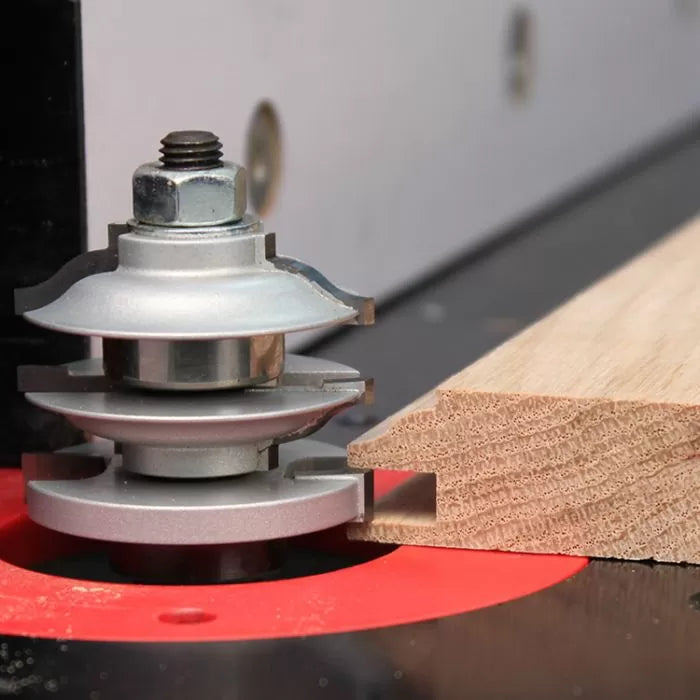

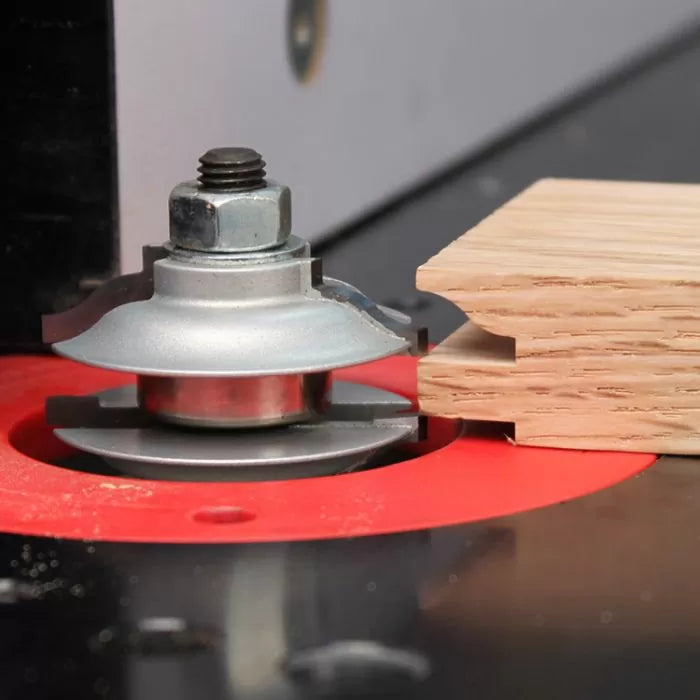

Yes. A router table is strongly recommended because precise height adjustment is how you switch between the rail and stile portions of the profile.

A single bit means you never swap bits between cuts — you just change the height. That saves setup time and reduces the chance of mismatched profiles.

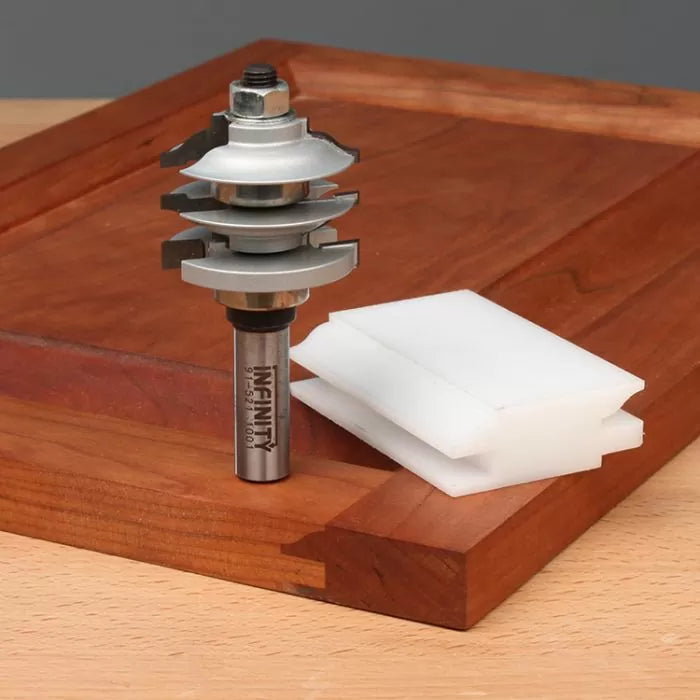

It is ideal for building frame-and-panel cabinet doors. Combine it with our full range of cabinetry & joinery tools to complete your door projects.

It is made by Infinity Cutting Tools. Browse the full lineup of Infinity carbide router bits for matching tooling.
