SKU: HDFM-001

Infinity Tools HD Frame Master: para plantillas de marcos HD: fresadora o moldeadora

$199.90

¡La plantilla de sujeción perfecta para fabricar puertas con paneles no cuadrados!

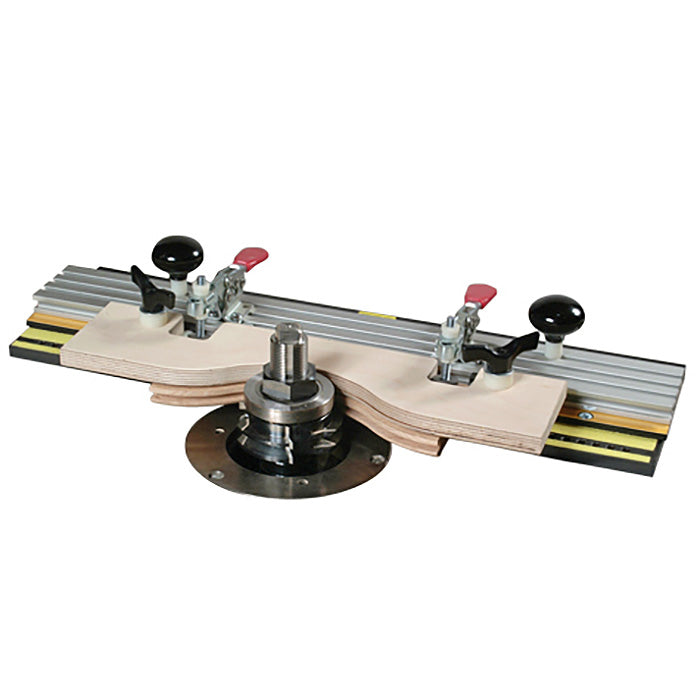

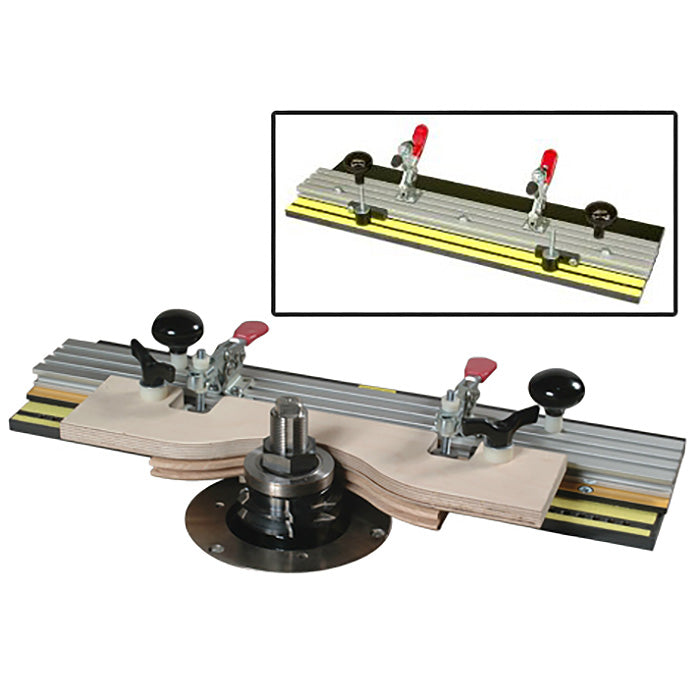

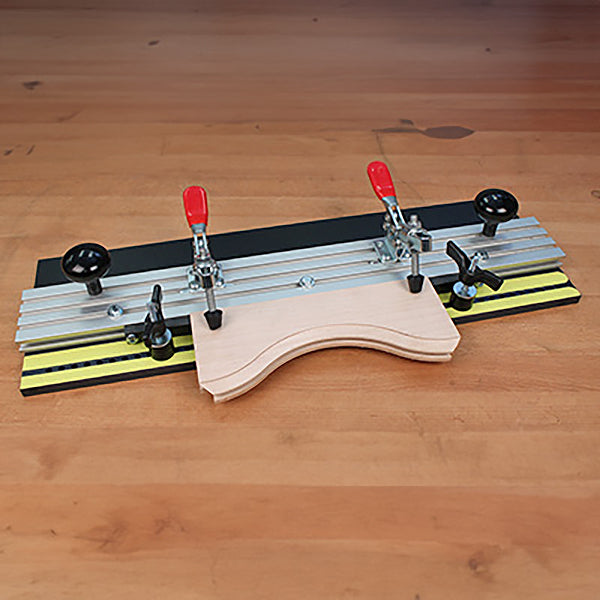

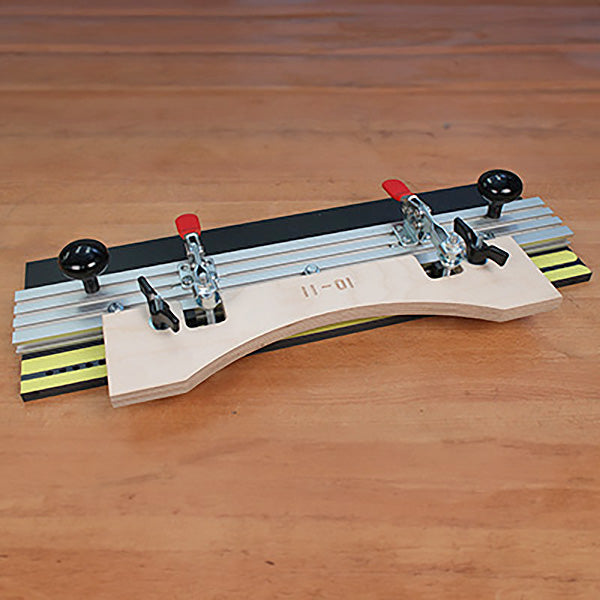

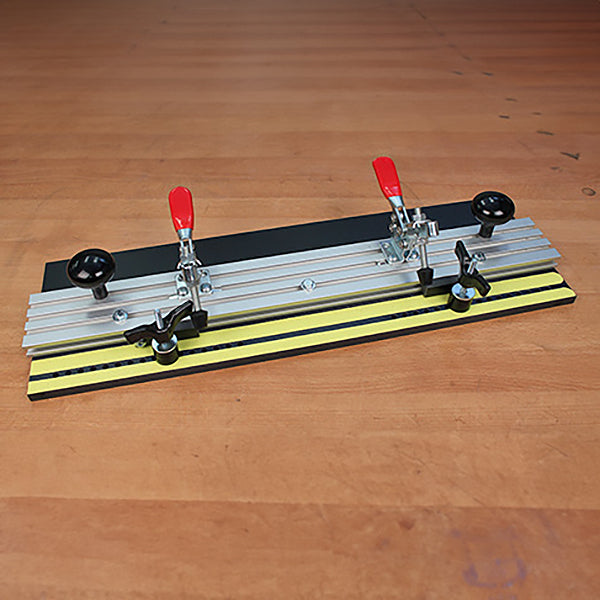

El HD Frame Master es un excelente dispositivo de sujeción para crear paneles de puerta no cuadrados. Es fácil de usar: simplemente sujete el panel a la plantilla y use nuestras plantillas HD Arched o Cathedral para crear paneles de puerta perfectos con su perfiladora o fresadora. Le permite realizar estas operaciones de forma más segura y sencilla que a mano. Sostiene rieles de marco de 15 a 50 cm de largo y hasta 3,2 cm de grosor. Se ajusta a rieles de 5,4 a 12,7 cm de ancho, medidos en su punto más estrecho. Las unidades HD Frame Master y HD Panel Master independientes permiten dos usuarios a la vez.

Otras características incluyen :

  • Dispositivo patentado que proporciona una plataforma de trabajo segura, protegida y fácil de controlar.
  • Úselo con las plantillas de puertas PDT-101HD o PDT-201HD.
  • Asegura el posicionamiento consistente de paneles y rieles.
  • Se convierte rápidamente entre rieles y paneles.

  • Base de plantilla fabricada en fenólico de 1/2" de alta resistencia.

  • Incluye dos abrazaderas de palanca de 500 lb para máxima potencia de sujeción.

  • Garantía de por vida contra defectos de material o mano de obra.

Frequently Asked Questions

What is the HD Frame Master used for?

It is a work-holding device for making non-square panel doors. You clamp your panel to the jig and use HD Arched or Cathedral door templates to machine perfect door panels on a shaper or router. See our router jigs & guides.

Can the HD Frame Master be used on a shaper?

Yes. The HD Frame Master works on both a shaper and a router, letting you machine non-square door panels safely on either machine.

What rail sizes does it hold?

It holds frame rails from 6" to 20" long and up to 1-1/4" thick, and adjusts for rails from 2-1/4" to 5" wide measured at the narrowest width.

Which door templates does it use?

The HD Frame Master is designed for use with Door Templates PDT-101HD or PDT-201HD. Pair it with our frame & panel templates.

Does it come with clamps?

Yes. The HD Frame Master includes two 500 lb. toggle clamps for maximum holding power, so your panel stays locked in place during machining.

What is the jig base made of?

The jig base is made of heavy-duty 1/2" phenolic, providing a sturdy, flat platform for accurate door-panel work.

Can two people work at once?

Yes. Separate HD Frame Master and HD Panel Master units allow two users to work at the same time, speeding up production.

Is it safer than working by hand?

Yes. The patented jig provides a safe, secure, easy-to-control work platform, letting you perform non-square door operations safer and easier than by hand.

Does it switch between rails and panels?

Yes. The HD Frame Master insures consistent positioning and quickly converts between rails and panels. Explore more router templates.

Is the HD Frame Master guaranteed?

Yes. It carries a lifetime guarantee against defects in material or workmanship.
