SKU: FPM-001

Infinity Tools Frame & Panel Master: plantilla para hacer puertas para su enrutador

$129.90

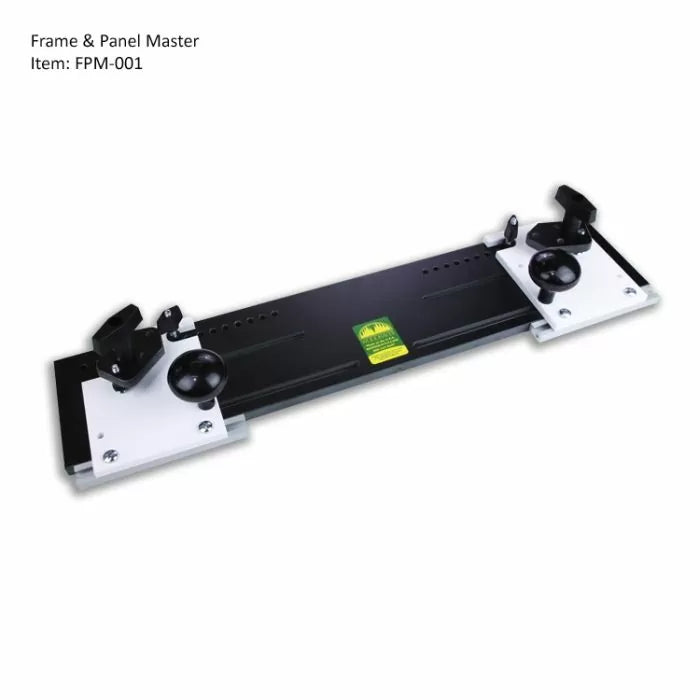

Frame & Panel Master ofrece una plataforma de trabajo segura, estable y fácil de controlar que acelera el trabajo de marcos y paneles. Sujeta la pieza de trabajo y una plantilla de puerta estándar (solicítela por separado) juntas para mecanizar en su mesa de fresado. Es más rápido que usar cinta adhesiva de doble cara o clavos para sujetar la plantilla en la pieza de trabajo. Convierte rápidamente entre rieles y paneles. Úselo para recortar piezas al ras para darles forma o para mecanizar los perfiles de paneles y rieles con las brocas de fresado adecuadas. Brocas no incluidas. Hay disponibles abrazaderas de palanca opcionales de 500 lb (100-526, se requieren dos) para reemplazar las abrazaderas estándar y se pueden agregar en cualquier momento.

Otras características incluyen:

  • Dispositivo patentado que proporciona una plataforma de trabajo segura, protegida y fácil de controlar.
  • Úselo con las plantillas de puerta PDT-101 o PDT-201.
  • Asegura el posicionamiento consistente de paneles y rieles.

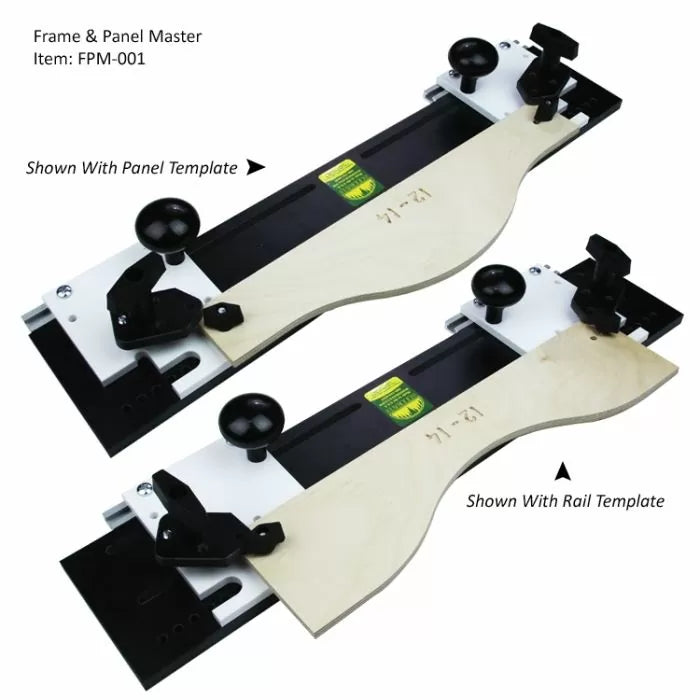

  • Se convierte rápidamente entre rieles y paneles.
  • Nueva base de plantilla hecha de fenólico resistente de 1/2" para nuestras abrazaderas de palanca opcionales de 500 lb (100-525) - se requieren 2.
  • Garantía de por vida contra defectos de material o mano de obra.

Frequently Asked Questions

What is the Frame & Panel Master used for?

It is a work-holding jig for frame-and-panel door making. It clamps your workpiece and a door template together so you can machine rails and panels safely and accurately on your router table. See more router jigs & guides.

Does the Frame & Panel Master include router bits?

No. Router bits are not included. You choose and add the cutters that match your door profile and template separately. Browse router table setups to complete your station.

Which door templates does it work with?

The Frame & Panel Master is designed for use with Door Templates PDT-101 or PDT-201, which are ordered separately. Pair it with our frame & panel templates.

Can this jig be used with a handheld router?

No. The Frame & Panel Master is for router-table use only. It clamps the work and template together for machining on the table.

Why use this jig instead of tape or nails?

Clamping the work and template together with the jig is faster than using double-face tape or nails, and it insures consistent positioning of panels and rails for repeatable results.

What is the jig base made of?

The jig base is made of sturdy 1/2" phenolic. It is drilled to accept our optional 500 lb. toggle clamps (100-525), of which two are required.

Can I upgrade the clamps later?

Yes. Optional 500 lb. toggle clamps (100-526, two required) are available to replace the standard clamps and can be added at any time for maximum holding power.

Does the jig switch between rails and panels easily?

Yes. The Frame & Panel Master quickly converts between rails and panels, so you can machine both parts of a door without changing your setup approach.

Can I use it for flush trimming parts to shape?

Yes. In addition to machining panel and rail profiles, you can use the jig to flush trim parts to shape with the appropriate router bits.

Is the Frame & Panel Master covered by a warranty?

Yes. It carries a lifetime guarantee against defects in material or workmanship. Pair it with our router templates for complete door-making capability.
