SKU: 101-291.10

Arandelas de faldón FastCap Izzy

Q: What size hole do I drill for an Izzy Skirt Washer?

Drill a 9/16" hole with a Forstner bit , centered 3/16" from the edge of the skirt. Browse more hardware for your build.

Q: How does the skirt washer allow for wood movement?

The 5/8" long slot lets the tabletop expand and contract with seasonal moisture changes, eliminating the chance of splitting due to cross-grain conflict between the top and base.

Q: What screws do I need to install them?

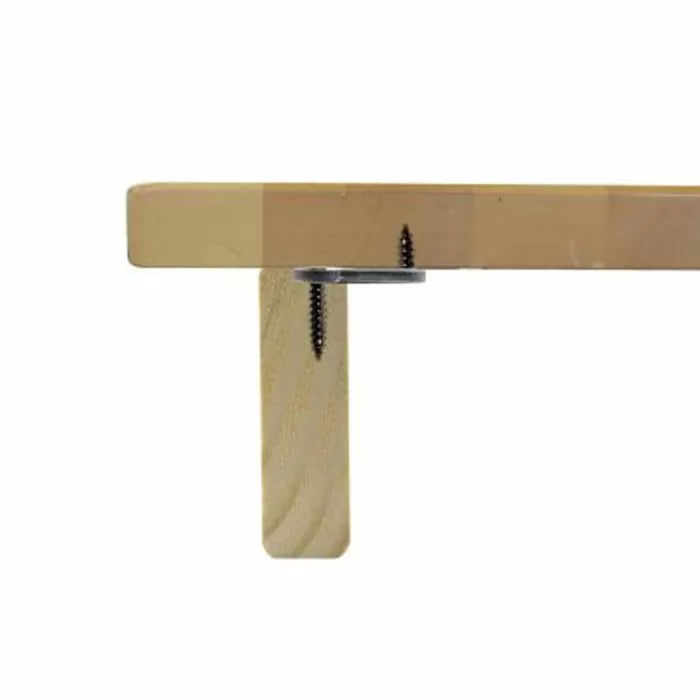

Use a #8 flat head screw to attach the washer and a #8 pan head screw through the slotted portion to secure the table top. The screws are not included.

Q: Where on the skirt should the washer be positioned?

The mounting hole should be centered 3/16" from the edge of the skirt so the washer sits correctly against the underside of the top.

Q: Who makes the Izzy Skirt Washers?

They are made by FastCap , offered as a full-adjustability solution for installing table tops.

Q: What tool do I need to drill the mounting hole?

You will need a Forstner bit to drill the 9/16" mounting hole cleanly. Keep your clamping tools ready to hold parts during installation.

$9.90

Cantidad

10 uds. 50 uds. 100 uds.

Description Reviews Q&A

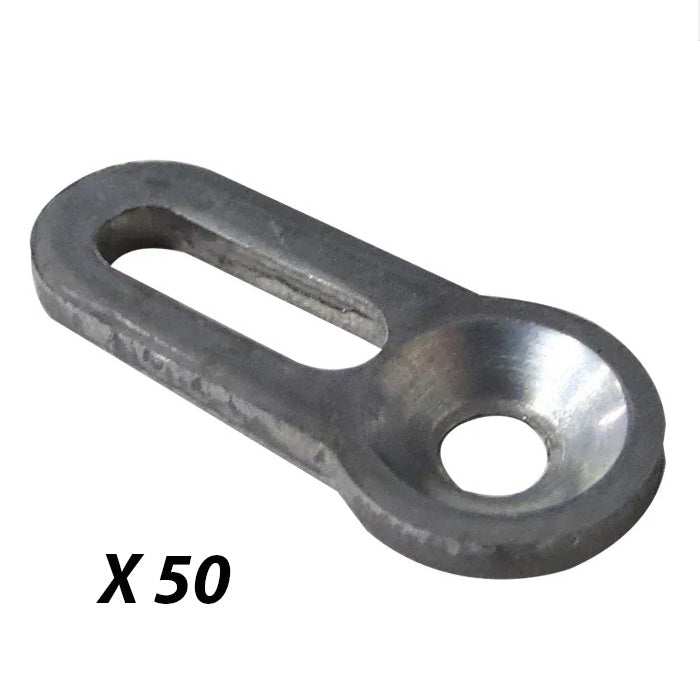

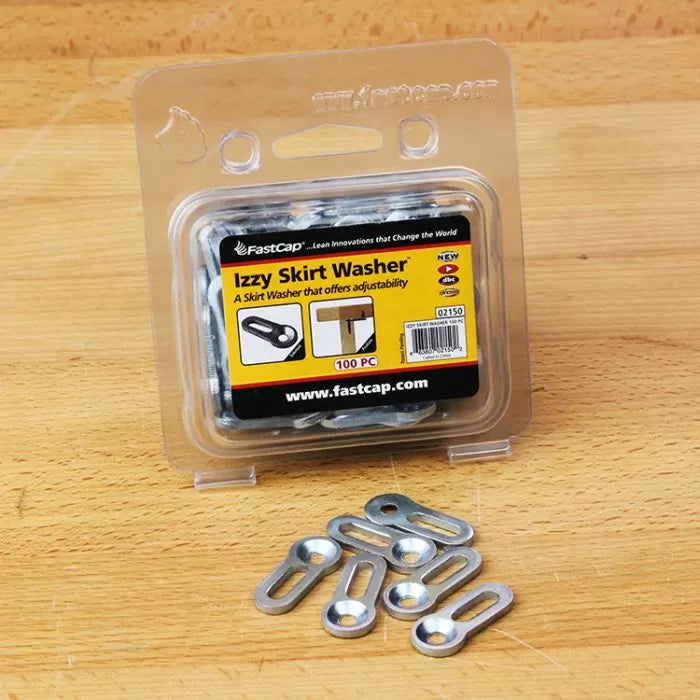

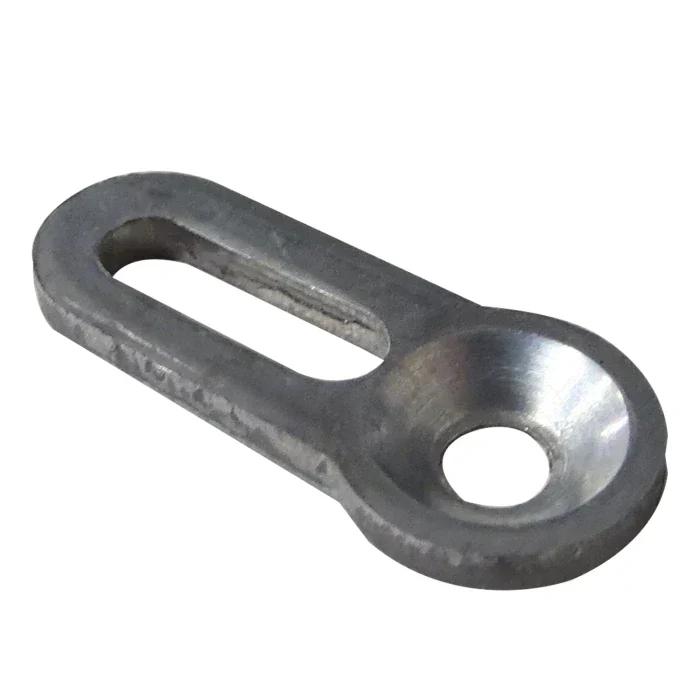

Las arandelas para faldones Izzi facilitan la fijación de los tableros de mesa a las bases de las mesas. Simplemente taladre un orificio de 9/16” con una broca Forstner centrada a 3/16” del borde del faldón. Fije la arandela para faldón Izzi con un tornillo de cabeza plana n.° 8 (no incluido). Luego, use un tornillo de cabeza troncocónica n.° 8 a través de la parte ranurada para asegurar el tablero de la mesa. La ranura de 5/8” de largo permite que el tablero de la mesa se expanda y contraiga con los cambios de humedad estacionales, lo que elimina la posibilidad de que se parta debido al conflicto de vetas cruzadas entre el tablero y la base. Las arandelas para faldones Izzi son una solución perfecta para fijar una tabla a cualquier tipo de mueble, incluidas mesas y gabinetes.

Frequently Asked Questions

What size hole do I drill for an Izzy Skirt Washer?

Drill a 9/16" hole with a Forstner bit, centered 3/16" from the edge of the skirt. Browse more hardware for your build.

How does the skirt washer allow for wood movement?

The 5/8" long slot lets the tabletop expand and contract with seasonal moisture changes, eliminating the chance of splitting due to cross-grain conflict between the top and base.

What screws do I need to install them?

Use a #8 flat head screw to attach the washer and a #8 pan head screw through the slotted portion to secure the table top. The screws are not included.

What are Izzy Skirt Washers used for?

They make it easy to attach table tops to table bases, and they work for attaching a plank to any type of furniture, including tables and cabinetry. See related cabinet hardware.

Where on the skirt should the washer be positioned?

The mounting hole should be centered 3/16" from the edge of the skirt so the washer sits correctly against the underside of the top.

Why is wood movement a concern for tabletops?

Solid-wood tops expand and contract across the grain with humidity. Fixing them rigidly to a base can cause splitting, which the slotted skirt washer prevents by allowing the top to move.

Are the screws included?

No. The #8 flat head and #8 pan head screws are not included, so plan to supply your own fasteners. Browse hardware for compatible screws.

Who makes the Izzy Skirt Washers?

They are made by FastCap, offered as a full-adjustability solution for installing table tops.

Can I use these on cabinetry as well as tables?

Yes. They are a perfect solution for attaching a plank to any type of furniture, including tables and cabinetry. See more cabinet hardware.

What tool do I need to drill the mounting hole?

You will need a Forstner bit to drill the 9/16" mounting hole cleanly. Keep your clamping tools ready to hold parts during installation.

Arandelas de faldón FastCap Izzy
