Punta de fluido Earlex para el sistema de pulverización Earlex 5700

Q: Which Earlex spray system do these fluid tip needles fit?

These fluid tip needles are made for the Earlex 5700 Stationary HVLP Spray System (MPN 2443205). They are not compatible with the Earlex 6300. Browse more spray finishing systems and accessories.

Q: What needle size should I use for a high-gloss lacquer finish?

Use the 1.0mm needle (101-305) . It produces very fine atomization that is ideal for water-based finishes, thinned lacquer, and automotive lacquer where a high-gloss finish is the goal.

Q: Which needle is best for spraying cabinets and trim?

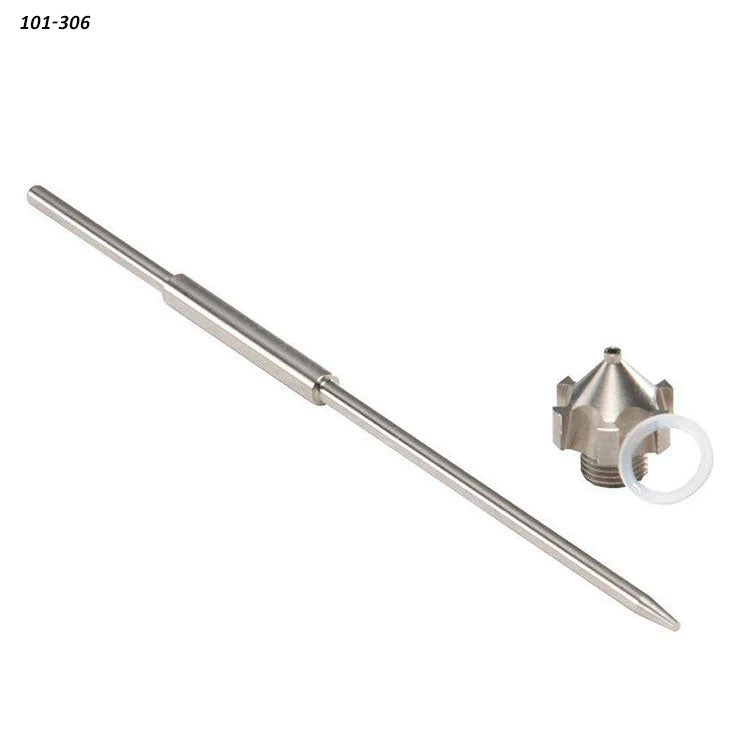

The 1.5mm needle (101-306) delivers medium atomization suited to water-based finish, poly, thinned oil, and latex paint — a great match for furniture, cabinet, and trim work. Pair it with quality paints and finishes .

Q: Can I spray thick latex paint with these needles?

Yes. Choose the 2.5mm needle (101-308) for very coarse atomization. It is designed for thick latex paint on walls, decks, and fences.

Q: What size needle works for varnish and outdoor furniture?

The 2.0mm needle (101-307) provides coarse atomization ideal for varnish, poly, oil, and latex paint on trim and outdoor furniture.

Q: Can I buy all the needle sizes together?

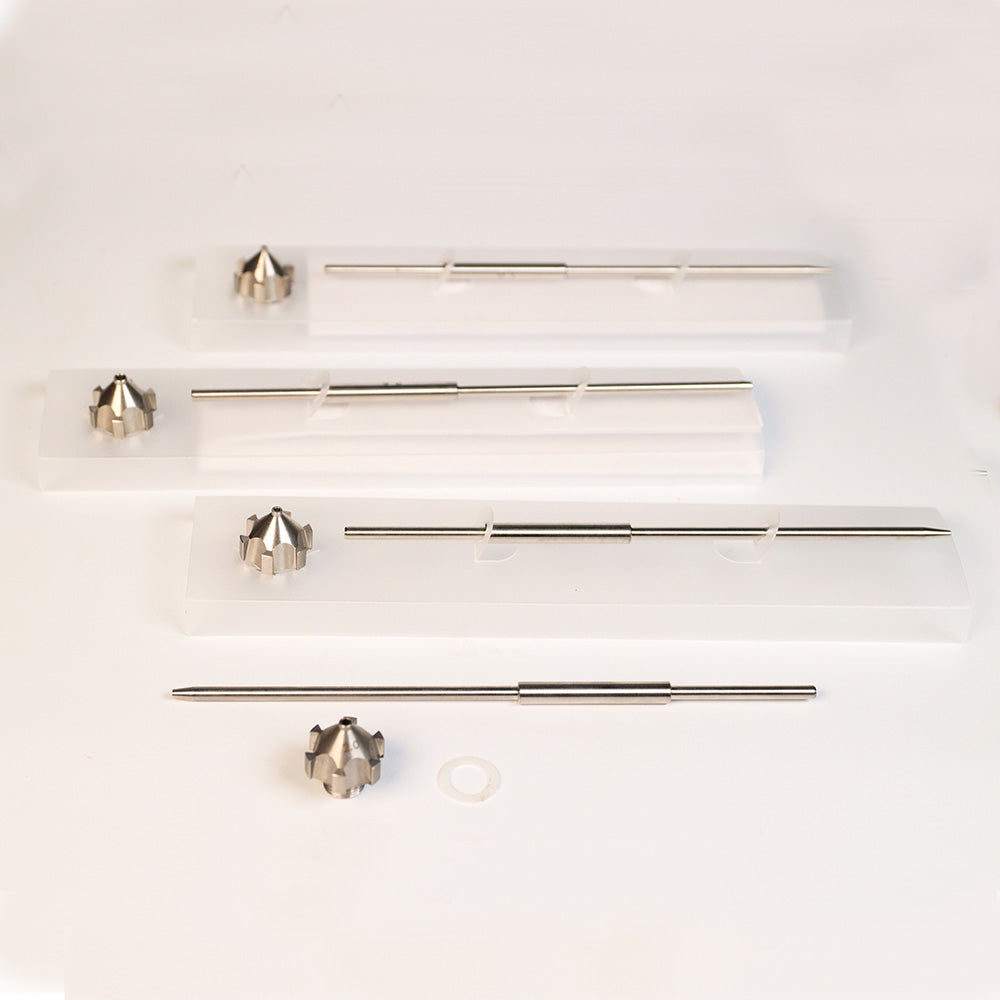

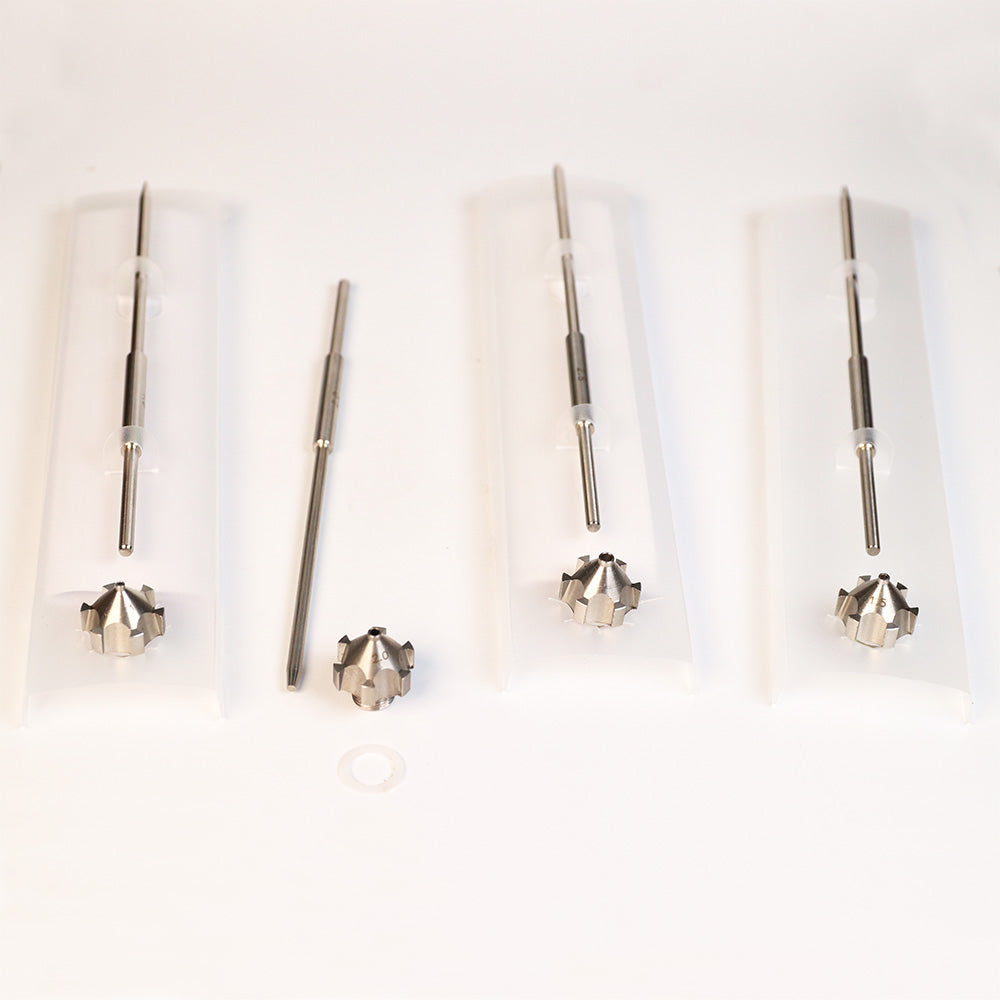

Yes. Order part number 101-310 to get all four sizes (1.0mm, 1.5mm, 2.0mm, and 2.5mm) so you can match the needle to any finish you spray.

Q: Who makes these fluid tip needles?

They are made by Earlex , a manufacturer of HVLP spray finishing equipment, specifically for the Earlex 5700 spray system.

Description Reviews Q&A Documents

Agujas con punta de fluido para sistema de pulverización HVLP estacionario Earlex 5700, MPN 2443205.

Ya sea que esté trabajando con acabados ultrafinos o mezclas de viscosidad espesa para realizar recubrimientos gruesos, las agujas con punta de fluido Earlex son el complemento perfecto y confiable para su sistema de pulverización.

Agujas accesorias adicionales disponibles optimizadas para tareas específicas
- Aguja de 1,0 mm: aguja de 1,0 mm, punta fluida (101-305)
  - Atomización muy, muy fina
  - Ideal para acabados a base de agua, lacas diluidas y lacas para acabados automotrices (acabado de alto brillo)
- Aguja de 1,5 mm: aguja de 1,5 mm, punta fluida (101-306)
  - Atomización media
  - Ideal para acabados a base de agua, poliuretano, aceite diluido y pintura de látex (acabado de muebles, gabinetes y molduras)
- Aguja de 2,0 mm: aguja de 2,0 mm, punta fluida (101-307)
  - Atomización de cursos
  - Ideal para barniz, poliuretano, pintura al óleo y látex (acabados de molduras y muebles de exterior).
- Aguja de 2,5 mm: aguja de 2,5 mm, punta fluida (101-308)
  - Atomización del curso muy
  - Ideal para pintura de látex espesa (paredes, terrazas, acabado de cercas)
- Los cuatro tamaños: (101-310)

**Nota**: Estas agujas no son compatibles con Earlex 6300. Para agujas Earlex 6300, haga clic aquí .

Needle_and_Viscosity_Selection_Guide

Frequently Asked Questions

Which Earlex spray system do these fluid tip needles fit?

These fluid tip needles are made for the Earlex 5700 Stationary HVLP Spray System (MPN 2443205). They are not compatible with the Earlex 6300. Browse more spray finishing systems and accessories.

What needle size should I use for a high-gloss lacquer finish?

Use the 1.0mm needle (101-305). It produces very fine atomization that is ideal for water-based finishes, thinned lacquer, and automotive lacquer where a high-gloss finish is the goal.

Which needle is best for spraying cabinets and trim?

The 1.5mm needle (101-306) delivers medium atomization suited to water-based finish, poly, thinned oil, and latex paint — a great match for furniture, cabinet, and trim work. Pair it with quality paints and finishes.

Can I spray thick latex paint with these needles?

Yes. Choose the 2.5mm needle (101-308) for very coarse atomization. It is designed for thick latex paint on walls, decks, and fences.

What size needle works for varnish and outdoor furniture?

The 2.0mm needle (101-307) provides coarse atomization ideal for varnish, poly, oil, and latex paint on trim and outdoor furniture.

Can I buy all the needle sizes together?

Yes. Order part number 101-310 to get all four sizes (1.0mm, 1.5mm, 2.0mm, and 2.5mm) so you can match the needle to any finish you spray.

Will these needles fit my Earlex 6300?

No. These needles are not compatible with the Earlex 6300. They are intended only for the Earlex 5700 system, so confirm your model before ordering.

Why does fluid tip needle size matter?

The needle controls how finely your material is atomized. A smaller needle gives a finer spray for thin finishes, while a larger needle passes thicker material for heavier coatings, helping you avoid both clogging and orange peel. Explore more finishing supplies.

Who makes these fluid tip needles?

They are made by Earlex, a manufacturer of HVLP spray finishing equipment, specifically for the Earlex 5700 spray system.

Are these needles sold individually or as a set?

Individual sizes are available (101-305 through 101-308), and you can also buy all four sizes together under part number 101-310. Browse the full range of spray finishing systems and parts.
