SKU: BJJ-001.UK

Kit de bloque de instalación de 5 piezas para plantilla de unión de caja Infinity Tools, BJJ-001

Name: Kit de bloque de instalación de 5 piezas para plantilla de unión de caja Infinity Tools, BJJ-001
Brand: Infinity Cutting Tools
SKU: BJJ-001.UK
Price: 24.90 USD
Availability: InStock

$24.90

Description Reviews Q&A Documents

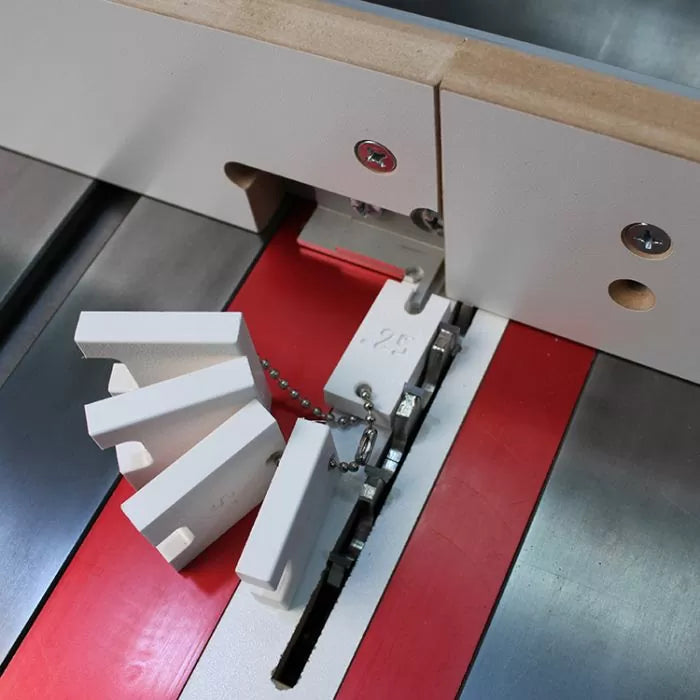

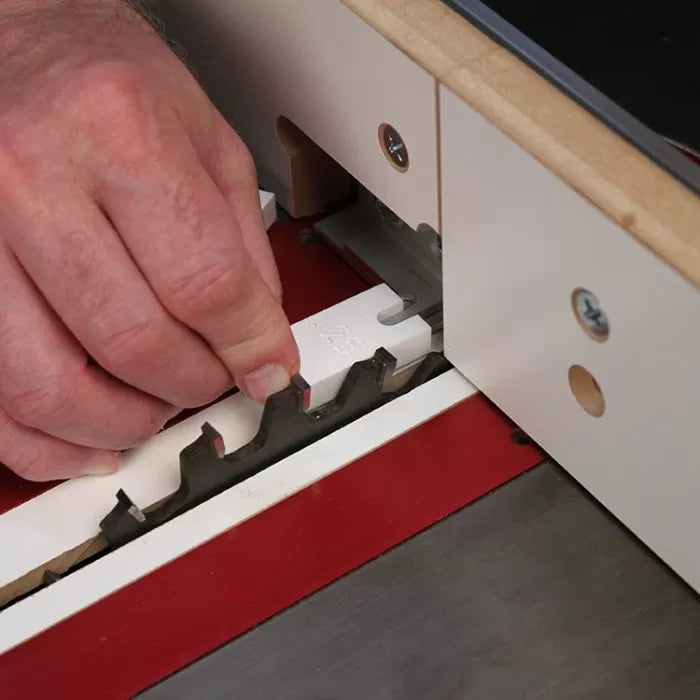

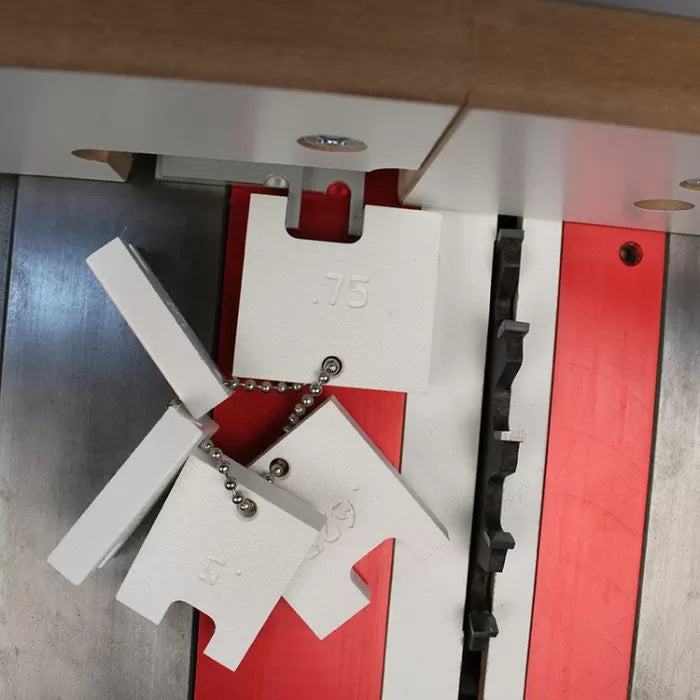

La clave para un ajuste perfecto de las juntas de caja es una configuración precisa. El ancho de la chaveta, la distancia entre esta y la hoja de sierra (o fresa) y el ancho de la hoja de sierra (o fresa) deben ser idénticos. Nuestras nuevas guías de configuración para juntas de caja facilitan esta tarea. Las guías de HDPE (polietileno de alta densidad) no dañan los delicados bordes de la hoja de sierra o fresa. Simplemente coloque la muesca de la guía sobre la chaveta para ajustar su ancho. Luego, coloque la chaveta de manera que el borde de la guía toque ligeramente el borde de la hoja o fresa.

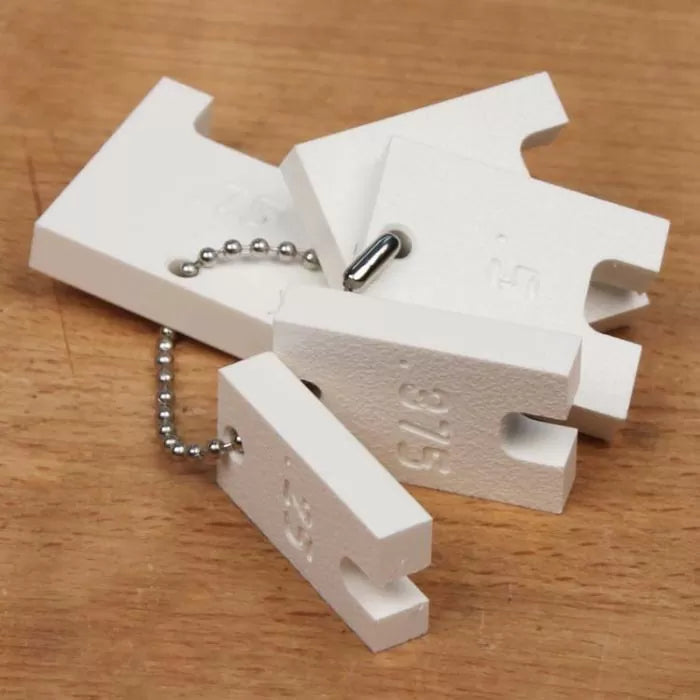

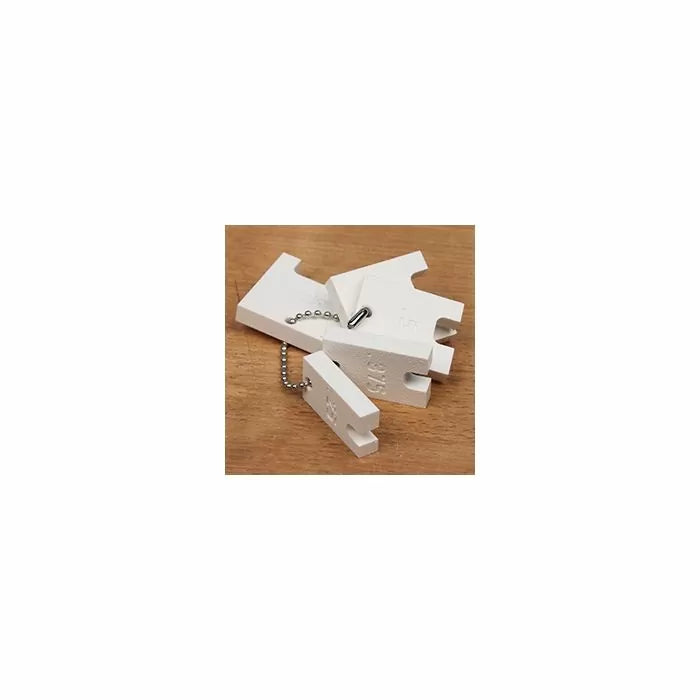

Nuestros medidores tienen un espesor total de 3/8" y vienen en un juego completo de 5 en incrementos de 1/8" con la medida grabada en cada uno.

Tamaños incluidos:

1/4"
3/8"
1/2"
5/8"
3/4"

Usos en tu tienda:

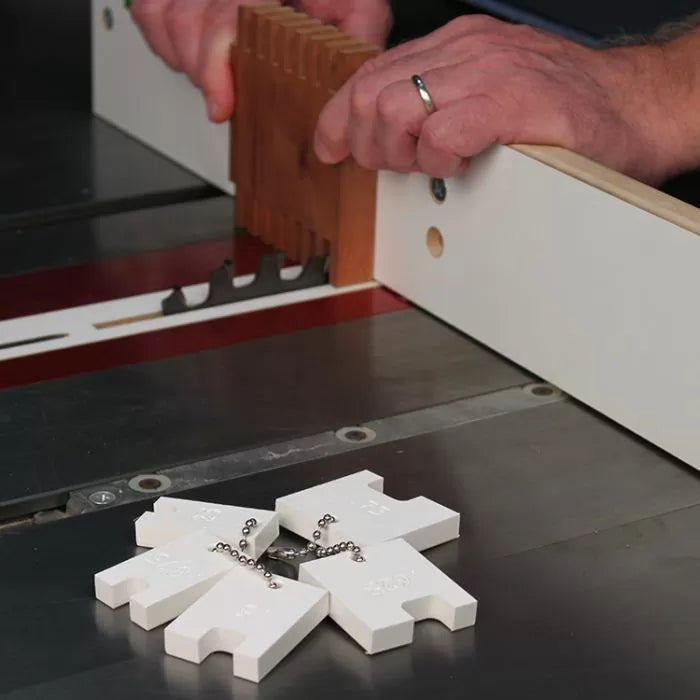

Estos medidores fueron diseñados para nuestra plantilla de unión de caja BJJ-001, pero funcionan igualmente bien para configurar cualquier plantilla de unión de caja en la sierra de mesa o en la mesa de fresadora.
Imprescindible para reducir el tiempo de preparación al cortar juntas de caja.

Instructions_Box_Joint_Jig_For_Router_Table_Table_Saw

Frequently Asked Questions

What sizes are included in the kit?

The set includes five gauges in 1/4", 3/8", 1/2", 5/8", and 3/4" sizes, stepping up in 1/8" increments.

What material are the setup blocks made from?

They are made from HDPE (high-density polyethylene), which won't harm the delicate edges of your saw blade or router bit when you set up against them.

How thick are the gauges?

Each gauge is a full 3/8" thick and has its measurement engraved on it for quick identification.

How do I use these to set up box joints?

Place the notch of the gauge over the key to adjust the key's width, then position the key so the edge of the gauge just contacts the edge of the blade or bit. This matches all three critical dimensions for a tight fit.

Will these work with jigs other than the BJJ-001?

Yes. They were designed for the BJJ-001 Box Joint Jig but work equally well for setting up any box joint jig on the table saw or router table.

Can I use these on a router table?

Yes, they work for setting up box joints on either the table saw or the router table. Pair them with quality carbide router bits for clean joinery.

Will the gauges damage my saw blade or bit?

No. The HDPE material is soft enough that it won't harm the delicate edges of your saw blade or router bit when you set up against it.

Why does box joint setup need to be so precise?

For joints to fit tightly, the key width, the blade or bit width, and the spacing between them must all be identical. These gauges make matching those dimensions fast and repeatable. See more measuring & layout tools.

Are the measurements marked on the blocks?

Yes, the measurement is engraved on each gauge so you can grab the right size at a glance.

Who makes this setup block kit?

It is made by Infinity Cutting Tools and is part of the BJJ-001 box joint jig system. Browse our gauges & setup tools for more.
